ATEX Lighting Solutions & Custom Lighting Design for Hazardous Area Environments

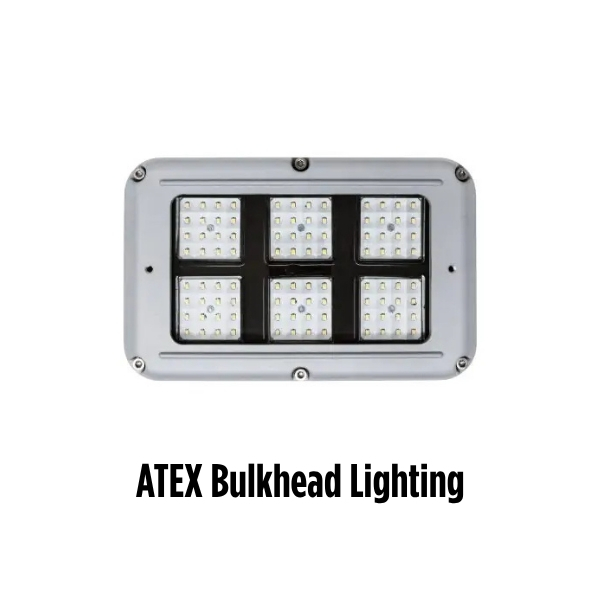

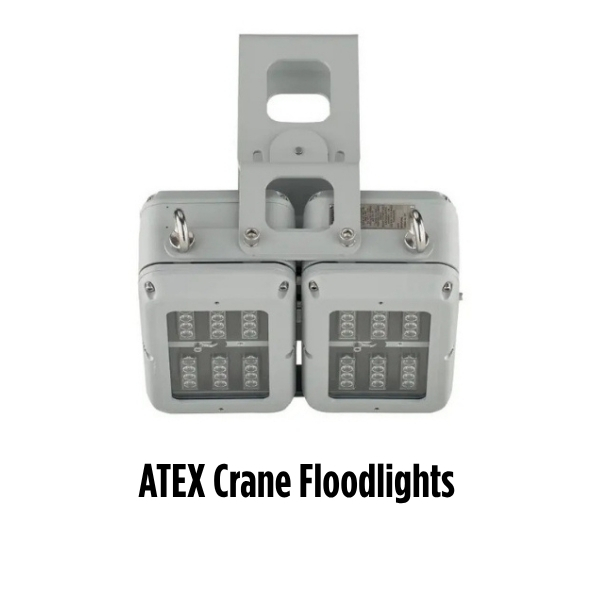

Explosion-proof Linear, Floodlight, Bulkhead, High Bay & Crane lighting solutions engineered for safety, efficiency, reliability, and compliance across the most demanding industrial sectors.

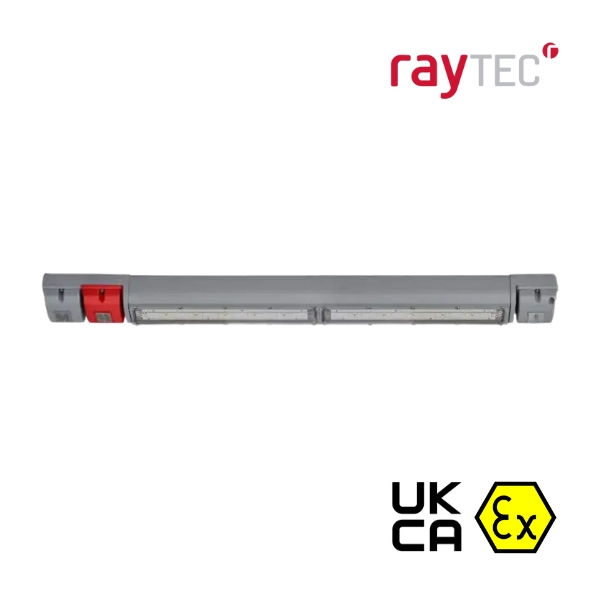

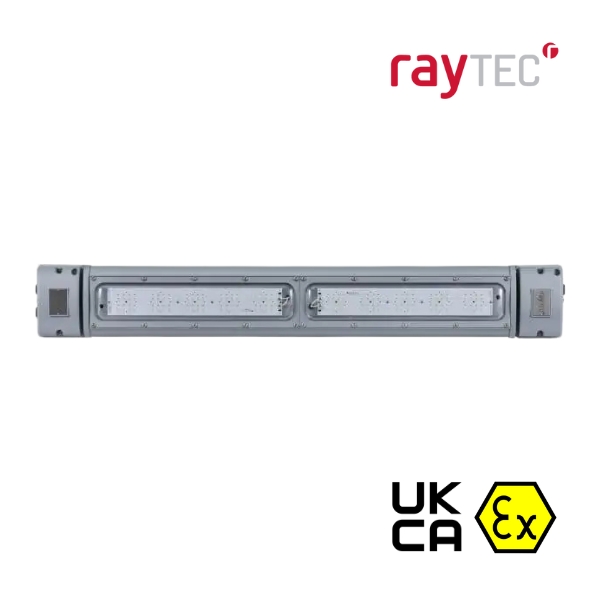

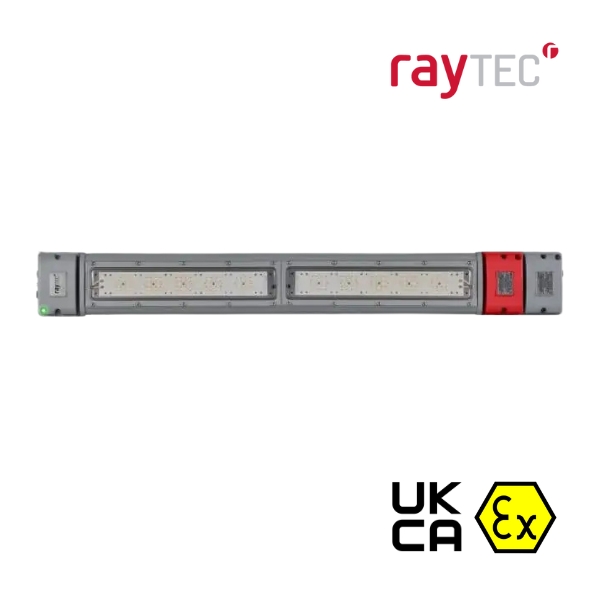

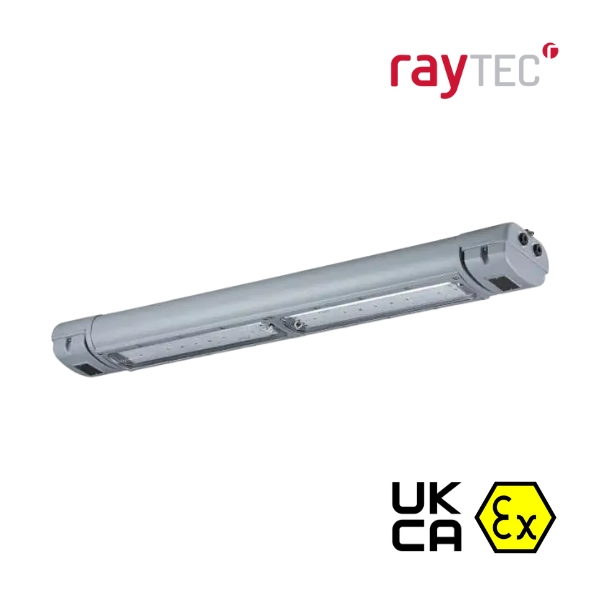

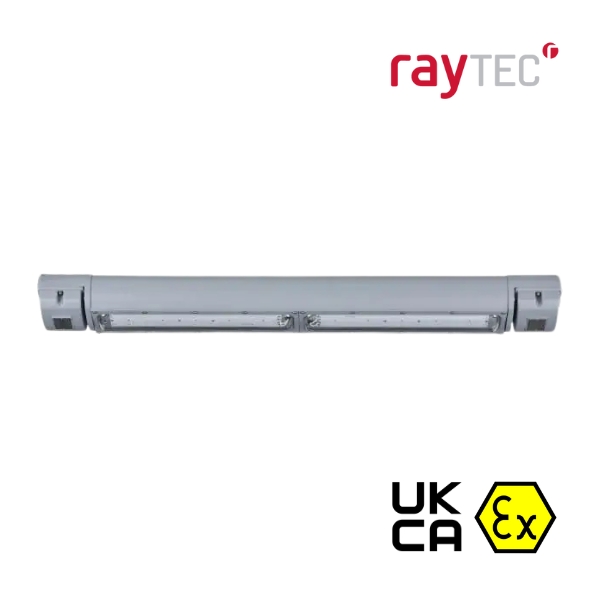

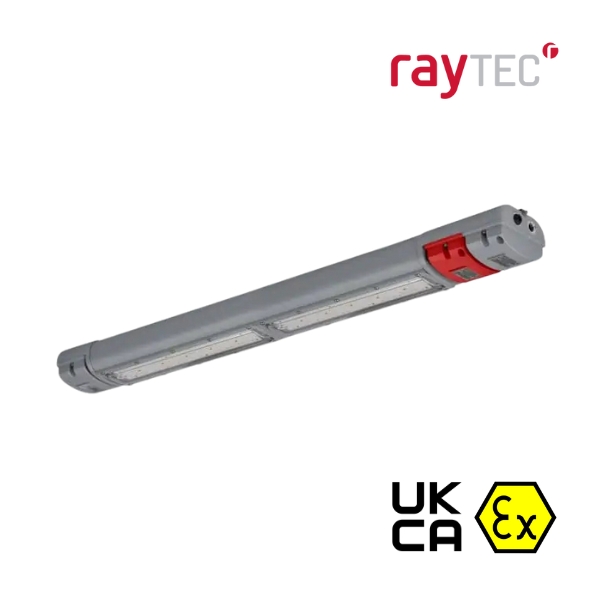

Raytec SPARTAN SPZ-WL168 Linear ATEX Lighting
£POA
£POA Inc VAT
ATEX, UKCA & IECEx certified 4ft Linear Standard & Emergency Lighting for Zone 2 & Zone 22. Zone 1 & Zone 21 fittings also available on request.
Technical Specifications
Certification: ATEX & IECEx Zone 2/22 Gas and Dust, UKEX approved (CML15ATEX4138 / IECEx CML15.0068 / CML21UKEX4104)Beam Angle: 120°, equivalent to 2×36 W T8 fluorescent
Input: 110–254 V AC/DC 50/60 Hz; optional 110–277 V AC/DC; LV 18–48 V AC / 18–69 V DC
Power Consumption: 49 W
LED Type: Platinum SMT LEDs (160 LEDs)
Luminous Output: Up to 7,048 lm
Colour Temperature: White-light (6,000 K +)
IP Rating: IP66 / IP67
IK Rating: IK10
Temperature Range: –40 °C to +60 °C (–40 °F to +140 °F)
Weight: 9 kg (19.8 lbs)
Applications
- Oil & Gas, Petrochemical & Refining- Chemical & Pharmaceutical Plants
- Bulk Solids / Dust-Handling Industries
- Utilities, Water & Wastewater
- Marine, Shipyards & Offshore Support
- Mining & Tunnelling
- Retrofit & New-Build Industrial Installations
- Emergency / Safety Lighting
- & More

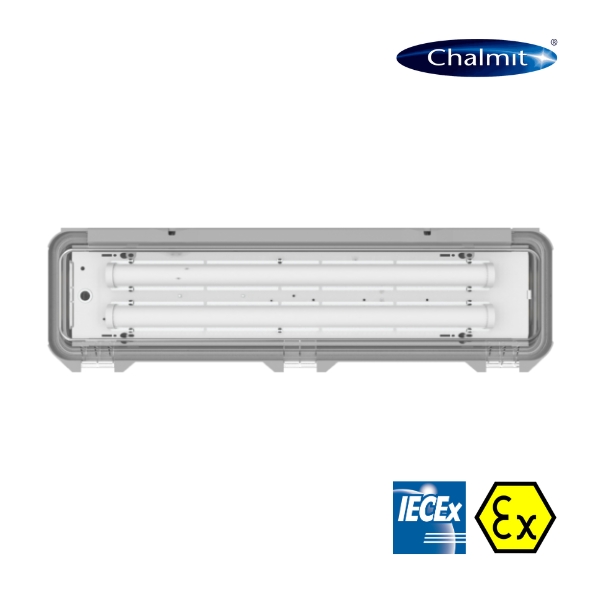

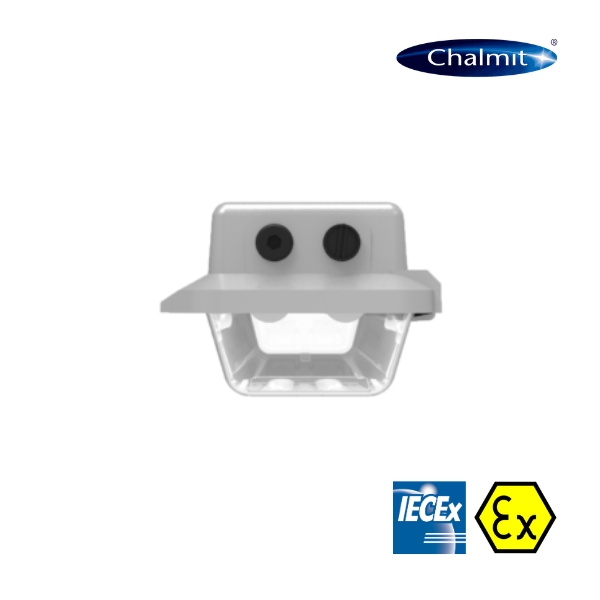

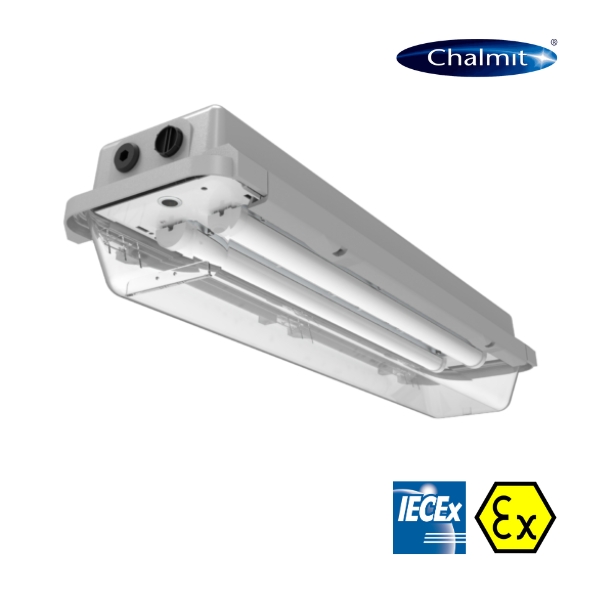

Chalmit Protecta III LED Linear ATEX Lighting
£POA
£POA Inc VAT
ATEX & IECEx certified Lighting for Zone 2 & Zone 22, with market-leading expected lumen life of 154,000hrs. Emergency fittings available on request.
Technical Specifications
Certification: ATEX & IECEx Zone 2 & 22 (Gas & Dust), UKCA approved Protection Type: Ex ec (Increased Safety) / Ex tc (Dust Protected Enclosure)ATEX Classification: Group II Category 3 GD
Certificates: CML 21ATEX3109X | IECEx CML 21.0008X
Input Voltage: 120–277 V AC 50/60 Hz | 127–300 V DC (model dependent)
Power Supply (Emergency): 220–240 V AC 50/60 Hz
Enclosure: GRP body with polycarbonate cover & white Zintec geartray
Cable Entry: 4 × M20 entries (2 each end)
Termination: 3 core 4 mm² (max) with looping – 16 A through-wiring
Mounting: 2 × M8 stainless-steel bushes (rear)
LED Type: Neutral White 4000 K | CRI > 80
Driver: Electronic Control Gear
Light Output Life: L70 > 154,000 hrs @ 55 °C
System Life: 120,000 hrs @ 25 °C (excl. battery)
IP Rating: IP66 / IP67 to EN 60529
IK Rating: IK10 Impact Resistance
Operating Temperature: Up to 55 °C ambient
Surge Protection: 1 kV (02L) / 4 kV (04L, 07L)
Emergency Version: Ni-Cd Battery (6 V), 3 h duration @ reduced output
Applications
- Oil & Gas, Petrochemical & Refining - Chemical & Pharmaceutical Processing - Mining, Tunnelling & Mineral Handling - Marine, Offshore & Shipyards - Utilities, Water & Wastewater - Bulk Solids & Dust-Handling Industries - Food & Beverage Production - General Industrial & Manufacturing - Warehousing & Storage Facilities - & More

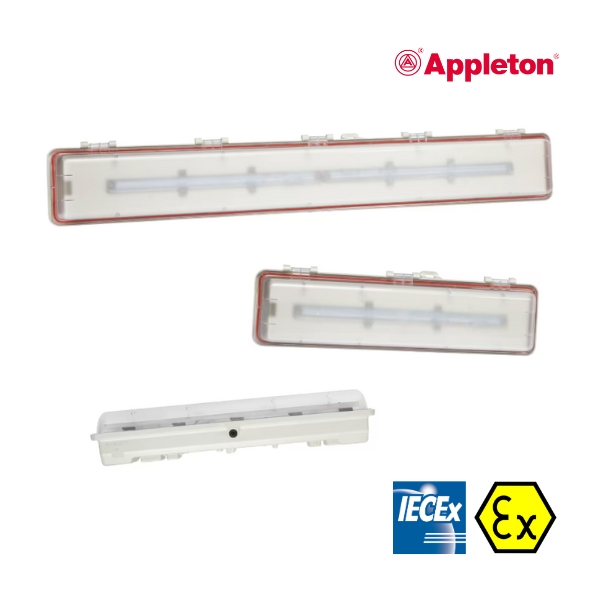

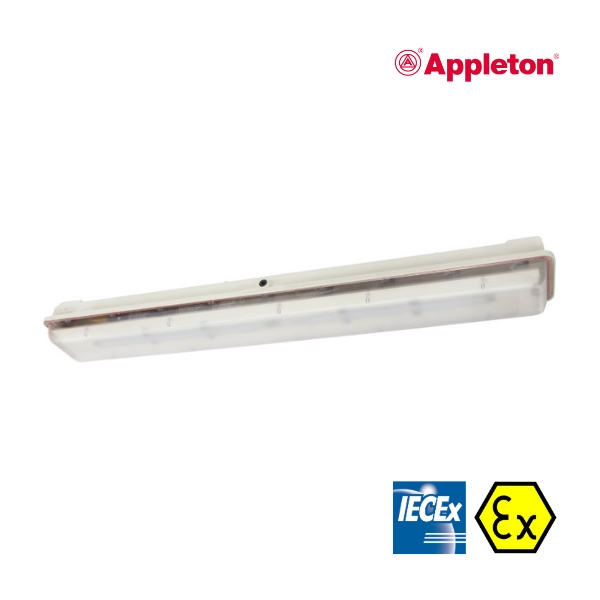

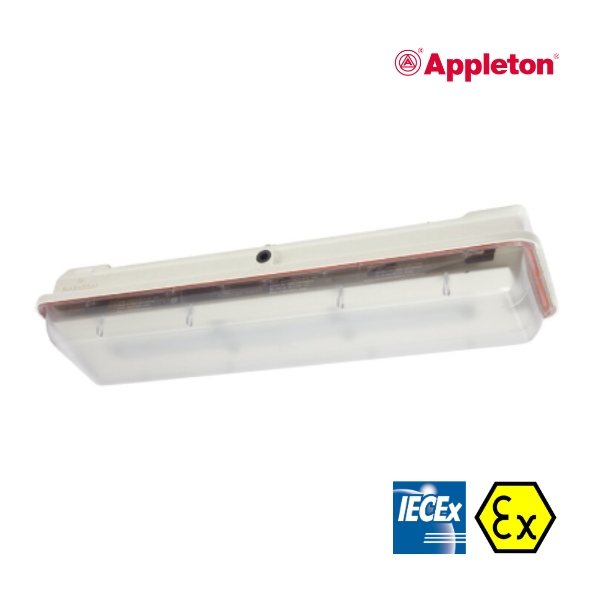

Appleton ATX Linmaster Nonmetallic ATEX Lighting
£POA
£POA Inc VAT
ATEX & IECEx certified Linmaster Standard & Emergency Linear Lighting for Zone 1 & Zone 21. Zone 2 & Zone 22 fittings also available on request.
Technical Specifications
Certification: IECEx & ATEX Certified for Hazardous Areas (Gas & Dust)Mounting: Horizontal or Vertical | Retrofit-Compatible with FE Series
Housing: Fibreglass Reinforced Polyester Body with Polycarbonate Lens
Impact Rating: IK10 (20 Joules)
Ingress Protection: IP66 (Dust & Water Tight)
Ambient Temperature: -40°C to +60°C / +65°C
Voltage Range: 100–277 V AC | 125–300 V DC | 24–48 V DC (optional)
Driver: High-Efficiency Electronic (>0.95 PF) | 6 kV Surge Protection
LED Lifetime: Long-life, Field-Replaceable Driver and LEDs
Emergency Options: 1.5 h & 3 h Versions with Self-Test and Replaceable Battery
Design: Low-Profile, Lightweight, Hinged Cover with Central Locking
Material Protection: Corrosion-Resistant | UV-Stable | Offshore-Ready
Applications
- Oil refineries- Petrochemical plants
- Food processing
- Waste & water treatment
- Underground tunnels
- General manufacturing
- Hydrogen & biofuels facilities
- LNG plants
- Onshore & offshore installations
- Compressor rooms & plant areas
- & More
