Electromagnetic Compatible (EMC) Plugs & Sockets

Electromagnetic Compatibility (EMC) is the ability of a product to operate satisfactorily in its electromagnetic environment without introducing electromagnetic interference itself. But what does this mean concretely for the industrial sector?

The Electromagnetic Compatibility Directive (EMCD) ensures that electrical and electronic equipment does not generate, or is not affected by, electromagnetic disturbance

The MARECHAL solutions are made up of a DECONTACTOR™ EMC industrial plug and socket outlets range, specifically designed up to 400 A and 1000 V. They help to avoid accidental shutdowns due to electromagnetic interference.

➡️ Thorne & Derrick have been appointed as official distributors and stockists of Marechal plugs and sockets in the UK, as of the 1st March 2023. Our demonstrated knowledge and expertise in the industry enables us to deliver the complete Marechal product offering in both Industrial and Hazardous Areas.

Where do these interference come from?

Disruptions can have many causes:

Natural factors, such as lightning
Devices designed to transmit/receive waves, such as mobile phones, radars, radio, television, etc
Devices that generate emissions, such as engines, digital circuits, etc

CONSEQUENCES OF ELECTRO-MAGNETIC WAVES

Electromagnetic waves can disturb a signal, causing the electrical installation, a robot or machine to malfunction or transmit an incomplete or erroneous message (data, ignition order, etc.) or even completely block an industrial manufacturing process.

As a result, these disruptions can impact the proper functioning and productivity of a plant as well as the safety of the site.

The best way to protect yourself from electromagnetic pollution is by ensuring the continuity of the shielded cable and thus the non-disruption of signals, using EMC products.

FIGHT ELECTROMAGNETIC INTERFERENCE WITH MARECHAL® SOLUTIONS:

Complete EMC Protection & Automatic IP55

Boxes and installation accessories in metal
All the mounting surfaces ensure optimal electrical conductivity
Special seals in metallic material in order to ensure an IP55 protection (waterproofness) as well as optimal EMC performances. The IP protection degree is obtained automatically when connecting the plug or shutting the lid. No other operation is necessary
On request, the plugs and socket outlets can be supplied with armoured cable glands

Power & Control

The DECONTACTOR™ EMC auxiliary contacts allow the process control such as connection control, motor thermal control, programmable logic controller (PLC), signal transmission, etc.
The EMC option allows a reduction in the power (in dB) of their inherent emission of electromagnetic waves. The electromagnetic compatibility (EMC) trials are carried out on all products according to the IEC 62153-4-5 : 2016 norm. In a frequency range between 30 MHz and 1000 MHz, the EMC option offers a reduction between 30 dB and 70 dB of electromagnetic emissions.

Marechal EMC Product Solutions

Complete EMC protection
Maximum security thanks to the DECONTACTOR™ system
Automatic IP65 protection
Optimum power transmission
Power and control

OPTIMAL TRANSMISSION OF POWER

The socket-outlets resist to corrosion and chemical agents. The silver-nickel butt contact tips with springs ensure a permanent contact pressure and an optimal conductivity even after years of intensive use. The specifically designed cable terminals provide our socket-outlets with optimal resistance to vibrations (especially preventing cable loosening) and temperature variations as well as outstanding cable anchoring.

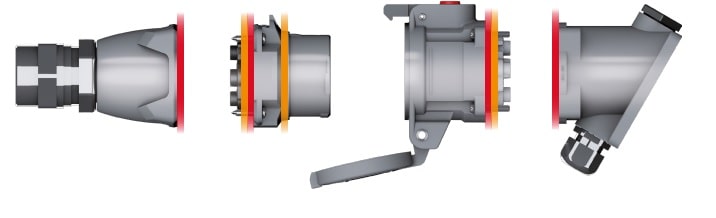

RED All the external surfaces of the devices are not treated so as to ensure optimal electrical conductivity.

ORANGE The conductive sealings are made of either metallic fibers, Monel wires silicone or graphite-loaded wires silicone, ensuring excellent EMC performances.

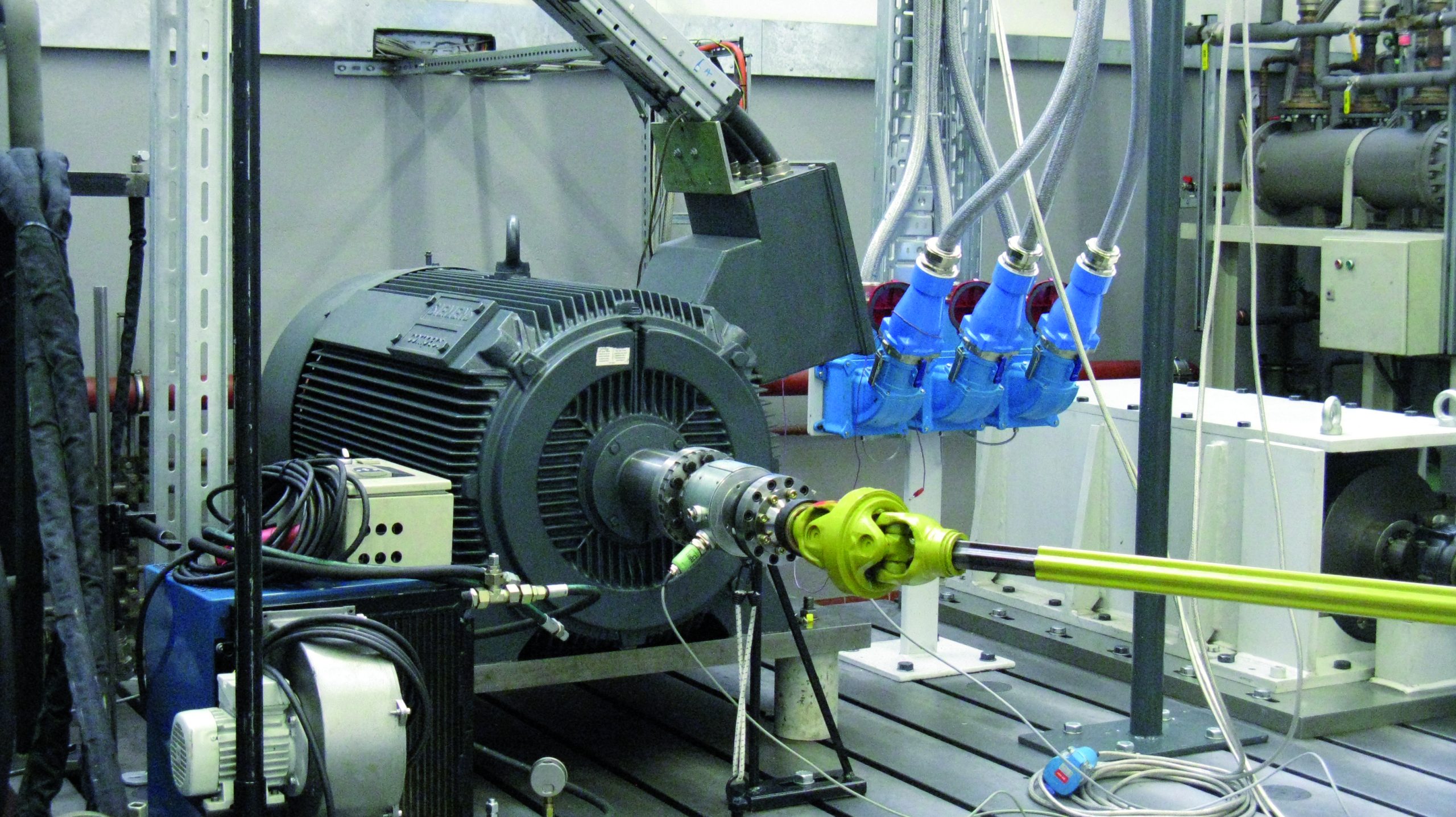

MARECHAL has developed a simple and reliable solution with outstanding performances in electromagnetic environments. This solution is available for MARECHAL® industrial or hazardous area device ranges, for high currents up to 1 250 A or for signal and control up to 37 contacts. This solution is particularly adapted to electromagnetic environments involving variable frequency drives for electric motors.

Electromagnetic Compatible (EMC) Plugs & Sockets

Marechal Range

The solutions developed by MARECHAL do not negatively impact upon the declared levels of sealing, mechanical or corrosion resistance.

Below is the range of MARECHAL Plugs & Sockets that have electromagnetic compatibility. The suffix to be added to socket-outlets, metal inlets and accessories part numbers (P/N°) + EMC

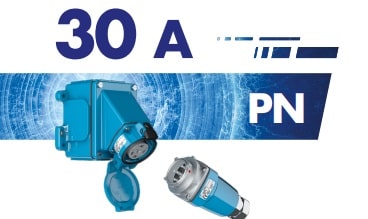

	PN MULTICONTACT plug and socket is a compact connector made of GRP or metal with a current rating of 30A. The reliable multipins connector is suitable for industrial purposes with IP66 and IP67 water and dust-tight sealing when connected.

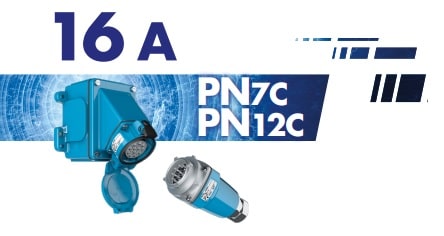

PN7C MULTICONTACT connectors form part of the Marechal range of signal and control plugs. PN7C plugs and sockets are compact and watertight and have a rated current of 25A, a maximum voltage of 500V and up to 7 contacts. PN7C plugs and sockets are automatically IP66/IP67 when connected and the socket outlet itself is also watertight when the lid is closed.
	PN12C connectors form part of the Marechal range of signal and control plugs – MULTICONTACT connectors (5 to 37) with waterproof electrical sockets to IP66/IP67 and IK08 IK09 protection for electrical equipment against external mechanical impacts. PN12C plugs and sockets are compact and watertight and have a rated current of 16A, a maximum voltage of 500V and up to 12 contacts

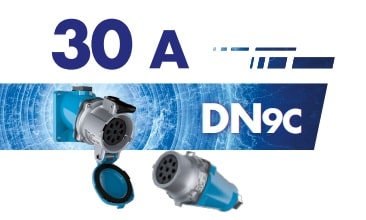

DN9C plugs and sockets are metal multi-contact connectors and have a rated current of 30A, a maximum voltage of 415V and up to 9 contacts.DN9C connectors form part of the Marechal range of signal and control plugs multicontact connectors (5 to 37) with waterproof electrical sockets to IP66/IP67 and IK08 IK09 protection for electrical equipment against external mechanical impacts.

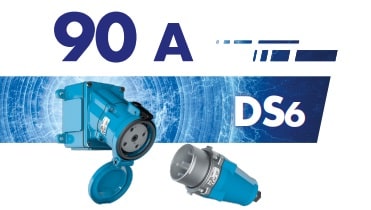

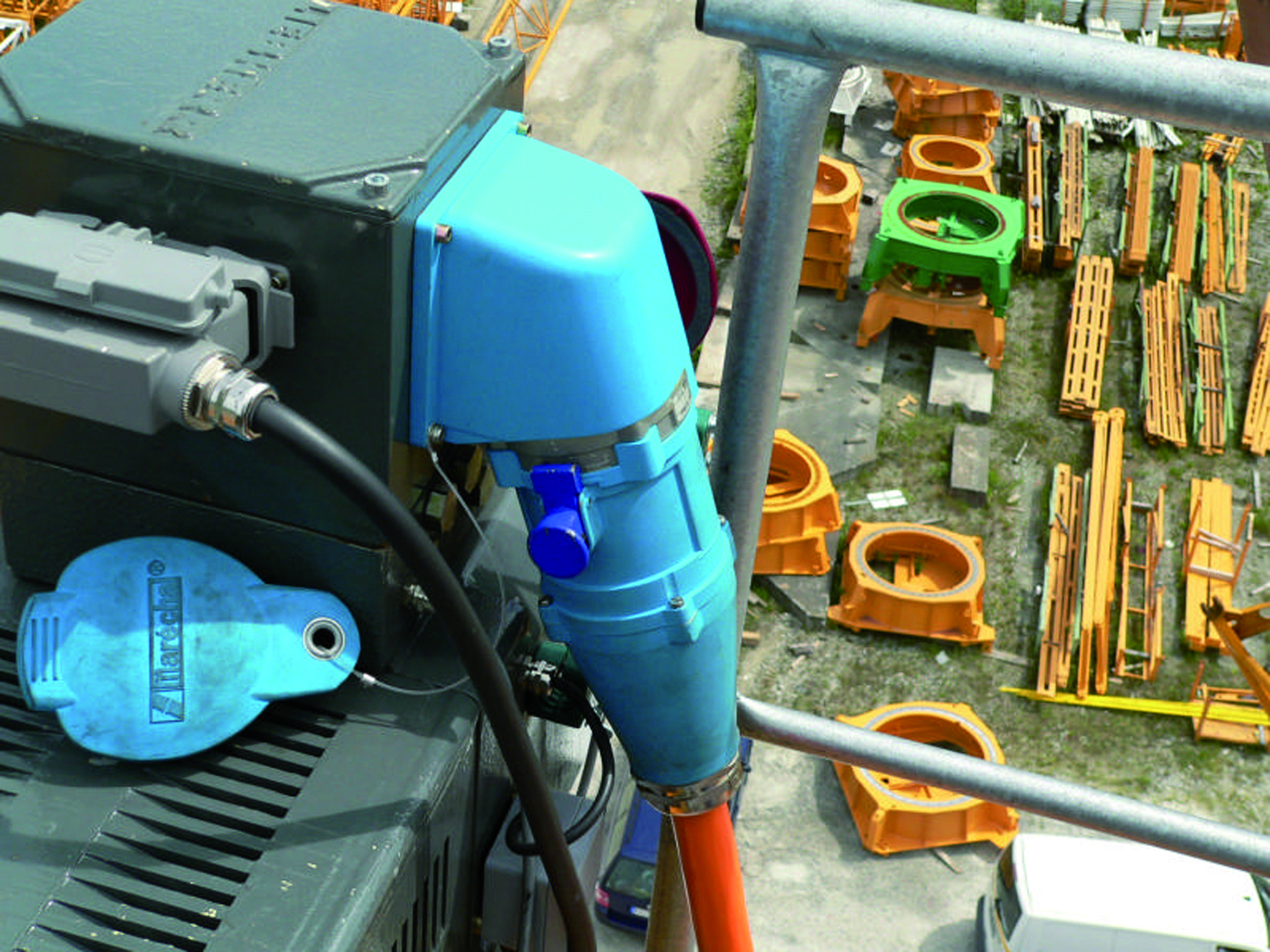

	DS6 plugs and sockets have a rated current of 90A and a maximum voltage of 1000V with IP66/IP67 rating. Marechal DS plugs & sockets have an incorporated breaking capacity of AC-22 / AC-23 and have an impact resistant metal casing. The DS6 also features a safety shutter (socket IP4X/IPXXD), silver-nickel butt contacts and metallic braid to comply with international standards.

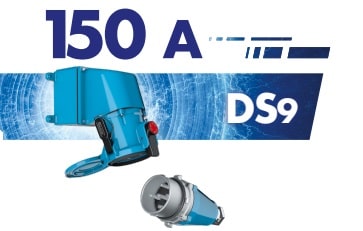

DS9 plugs and sockets have a rated current of 150A and a maximum voltage of 1000V with IP66/IP67/IP69 rating. Marechal DS plugs & sockets have an incorporated breaking capacity of AC-22 / AC-23 and have an impact resistant metal casing. The DS9 also features a safety shutter (socket IP4X/IPXXD), silver-nickel butt contacts and metallic braid to comply with international standard.

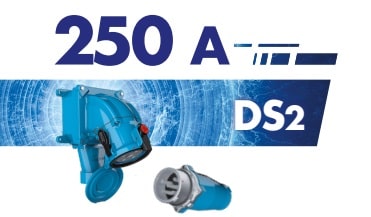

	DS2 plugs and sockets have a rated current of 250A and a maximum voltage of 1000V. DS2 plugs and sockets are IP66/IP67 whether the plug is connected or the protection lid is closed. Marechal DS plugs & sockets have an incorporated breaking capacity of AC-22 / AC-23 and have an impact resistant metal casing.
