MEDC BG3 are ATEX call points designed for use in the most arduous environmental conditions. The hazardous area call points, manufactured by MEDC, are manually operated fire alarms that are both simple to install and maintain in explosive atmospheres in onshore or offshore locations in accordance with the ATEX & IECEx certification and explosion protection levels.

The hazardous area call points are manufactured from glass reinforced polyester (GRP) which provides a robust, corrosion free construction and ensures effective and reliable operation in harsh industrial and offshore environments in ATEX Zone 1 and Zone 2 hazardous areas

ATEX call points are supplied in natural red GRP or painted to customer specification. ‘Burning House’ duty label is provided as standard, other duty and tag labels may be supplied to customer specification.

The Eaton MEDC BG range of Zone 1 & Zone 2 call point caters for numerous options such as variety of colours, LED indication, earth continuity, double switch, etc

➡ View the complete range of MEDC call points.

MEDC BG3 Call Point

MEDC BG3 Call Point

ATEX Call Points Zone 1 & Zone 2

Features

Call Point Order Code MEDC BG3.

  • Zone 0, Zone 1 and Zone 2 use.
  • Exia IIC T4.
  • ATEX Approved call point Ex II 1 G.
  • BASEEFA certified.
  • Chinese (CQST) certified.
  • IP66 and IP67.
  • Certified temperature: –55°C to +55°C.
  • Corrosion free GRP.
  • Optional in line/end of line resistors/diodes.
  • Optional LED indicator for ATEX call point
  • Hazardous area call point with optional lift flap.
  • Key operated test facility.
  • Various body colours available.
ATEX Call Point | Ex II 1G (Ex ia) or Ex II 2GD (Ex d)

ATEX Call Point | Ex II 1G (Ex ia)


Hazardous Area Guide

♦ Definition : Potentially explosive atmospheres exist where there is a risk of explosion due to mixtures of gas/air, vapour/air, dust/air or other flammable combinations. Where electrical equipment has to be used in these areas, it must be so designed and constructed such that it does not create sources of ignition capable of igniting these mixtures.
♦ Area Classification : Process plants are divided into Zones (European and IEC method) or Divisions (North American method) according to the likelihood of a potentially explosive atmosphere being present. Note: North American legislation now allows Zones to be used to classify areas, where this practice is used it follows the IEC Zone method.

➡ For further information about see Hazardous Area Zones and T-Class Temperature Ratings.

European ATEX & IEC ClassificationDefinition of Zone or DivisionNorth American Classification
Zone 0 (gases)A hazardous area in which an explosive mixture is continuously present or present for long periodsClass I Division I (gases)
Zone 20 (dusts)Class II Division 1 (dusts)
Zone 1 (gases)A hazardous area in which an explosive mixture is likely to occur in normal operationClass I Division 1 (gases)
Zone 21 (dusts)Class II Division 1 (dusts)
Zone 2 (gases)A hazardous area in which an explosive mixture is not likely to occur in normal operation and if it occurs it will exist only for a short timeClass I Division 2 (gases)
Class II Division 2 (dusts)
Zone 22 (dusts)Class III Division 1 (fibres)
Class III Division 2 (fibres)



Eaton MEDC BG3 - Dimensions

Eaton MEDC BG3 – Dimensions

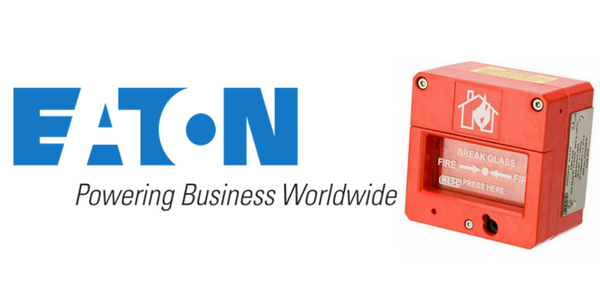

MEDC BG3 Hazardous Area Manual Call Point

Technical Specification

Eaton MEDC BG3I
ProtectionExplosion protected Ex ia dust-tight & weatherproof (intrinsically
safe)
CertificationCert. no BAS00ATEX1067X
Certified to: EN50014, EN50020, EN50284
ATEX Ex ia IIC T4
Suitable for use in Zones 0, 1 & 2
VoltageUp to 28V (IS)
Certified temperature-55ºC to +55ºC
Ingress protectionIP66 & IP67
Terminals6 x 4.0sqmm
Resistor values470R minimum
LED indicationA high intensity red LED can be fitted as an optional extra to indicate
operation on all 24V systems
As standard the LED is not provided with over current protection.
The forward current (If) should be limited to 20mA
Cable entries2 x M20 top or bottom
Weight0.5Kg
MaterialUV resistant glass reinforced polyester
FinishNatural red GRP or painted GRP to customer requirements
Duty/tag labelsStainless steel as standard
Eaton MEDC BG3W
ProtectionDust-tight & weatherproof
CertificationNot applicable
VoltageUp to 250V a.c
Certified temperatureNot applicable
Ingress protectionIP66 & IP67
Terminals6 x 4.0sqmm
Switch ratings30Vdc 3A
30-50Vdc 1A
250Vac 3A
Resistor values270R minimum
LED indicationA high intensity red LED can be fitted as an optional extra to indicate
operation on all 24V systems
As standard the LED is not provided with over current protection.
The forward current (If) should be limited to 20mA
Cable entries2 x M20 top or bottom
Weight0.5Kg
MaterialUV resistant glass reinforced polyester
FinishNatural red GRP or painted GRP to customer requirements
Duty/tag labelsPlastic as standard

Eaton MEDC BG3 – Ordering Requirements

The following code is designed to help in selection of the correct MEDC hazardous area call point with ATEX approval and certification. Build up the part number of the call point by inserting the code for each component into the appropriate box.

Eaton MEDC BG3 - Ordering Requirements

MEDC BG3 Call Points – Ordering Requirements

ATEX Call Points

MEDC BG3 Call Points are certified to International Standards for Explosion Proof Protection Levels and Hazardous Area Classifications
