Low Wavelength Red Light | Linear Light Fitting Zone 1 & Zone 21
Zone 1 Light Fittings ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres
Linear Generation II | UKCA Approved
SPARTAN Low Wavelength Linear Generation II range of Zone 1 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations which require low light/ low wavelength illumination. Typical applications include military use, warning and status indication lighting.
Using red, long-life LED technology, the WL84 & WL168 Linear is globally certified for all Zone 1 applications.
Hazardous Area Rating: Zone 1 – Gas & Dust
Zone 1 Gas
- II 2 G D
- Ex eb mb IIC T4 Gb
- Ta= -40°C to+60°C
Hazardous Area T Rating – T4 (T6 available on request)
Zone 21 Dust
- Ex tb IIIC T80OC Db
- Ta= -40°C to+60°C
The overall dimensions, fixing centres and gland entries of the hazardous area lighting are compatible with common 2x18W fluorescents (WL84) & 2x36W fluorescents (WL168), with lumen output and light distribution also offering a direct replacement.
CoolXtrude™ thermal management technology ensures a lifetime of 10 years+, and all SPARTAN luminaires come with an industry leading 5 year warranty.

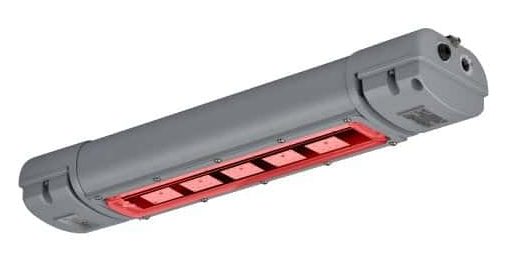

Raytec Spartan Low Wavelength Linear WL84 Zone 1 Hazardous Area
Zone 1 Light Fittings
Features & Benefits
ATEX Light Fittings
- Raytec Part Numbers – SPX-WL84R, SPX-WL168R
- ATEX & IEC Ex approved – Zone 1 (Gas) & Zone 21 (Dust)
- UKCA approved
- Ultra Long Life Red LED
- High Lumen Output LED
- Fully Retrofittable
- Easy Installation and Maintenance
- Emergency Variants
- Wide Operating Temp -40° to +60°
- 5 Year Warranty
- UK Designed and Manufactured

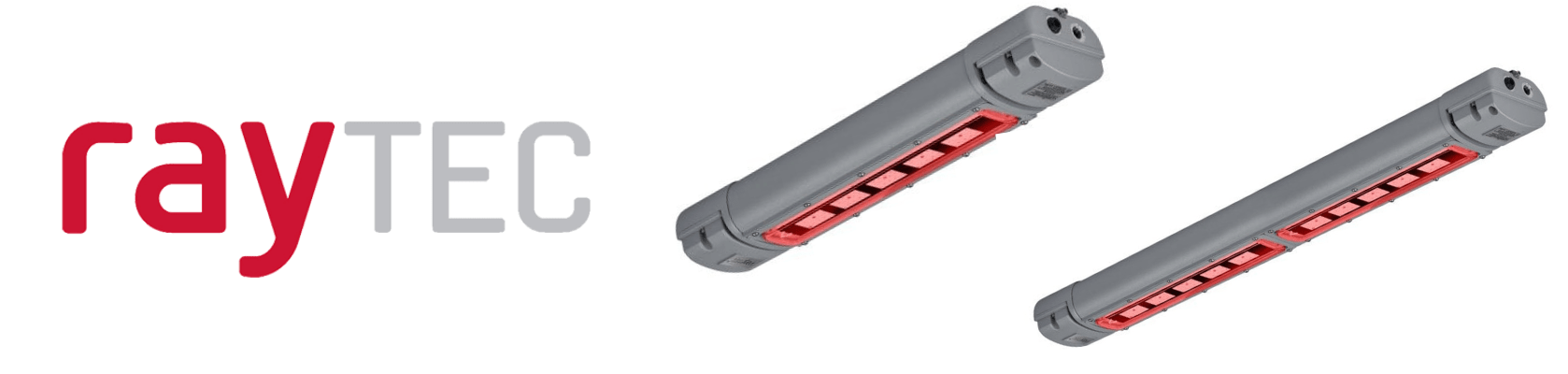

Raytec Spartan Low Wavelength Linear WL168 Zone 1 Hazardous Area
Raytec SPARTAN Light Fittings
Technical Specification
| Certification: | ATEX and IEC Ex rated for Zone 1 and 21 Gas and Dust. UKCA approved. |
| Beam Angles: | Symmetrical and Asymmetrical optics |
| Input: | Mains Voltage 110-254V AC only Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC (Standard Version Only) |
| Consumption: | WL84 Standard 24W WL168 Standard 49W |
| LED Type: | Platinum SMT LEDs |
| Number of LEDs: | 80 (WL84) 160 (WL168) |
| Wavelength: | 620nm |
| IP Rating: | IP66 and IP67 |
| Temperature Range: | -40°C to +60°C |
Zone 1 Light Fittings Product Codes
| SPARTAN Zone 1/21 ATEX and IEC Ex LED Low Wavelength Linear Luminaires | ||
| SPARTAN Zone 1/21 Low Wavelength Linear WL84 | ||
| SPX-WL84R | SPARTAN Low Wavelength Linear 80 LED, Red-Light, Zone 1/21 | (2x18W / 2ft retrofit) |
| SPARTAN Zone 1/21 Low Wavelength Linear WL168 | ||
| SPX-WL168R | SPARTAN Low Wavelength Linear 160 LED, Red-Light, Zone 1/21 | (2x36W / 4ft retrofit) |
ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
