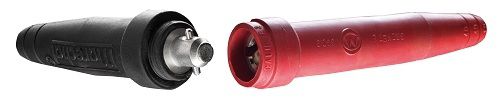

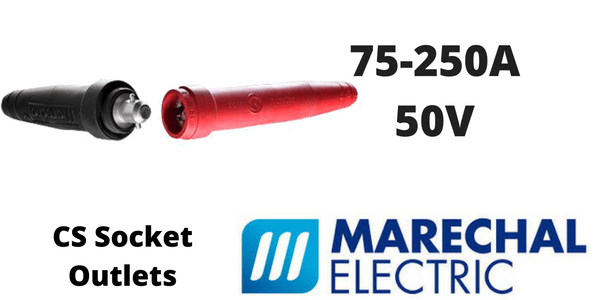

Marechal CS 75-250Amps socket outlets  have a current rating of 75A to 250A and a very low maximum voltage of 50V. CS 75-250Amps socket outlets have a bayonet contact system, self-cleaning contacts and 16 to 95sqmm conductors.

➡ View the complete range of High Current Plugs – 75A to 700Amps 1,000V electrical connectors for heavy power requirements.

Marechal CS socket outlets – Technical Specification

Type CSWiring (mm²)In rated current (A)i max welding cycle (A)
5 min cycles
60%30%
CS21675100150
25100125200
35125150250
50100200300
CS350150200300
70200250350
95250300400

Marechal CS 75-250Amps Socket Outlets – 50 Volt Very Low Voltage LV Welding Connectors



MARECHAL HIGH CURRENT CONNECTOR TYPE CS

The CS’s single-pole connectors are designed for Extra Low Voltage applications (below 50 V a.c. ou 120 V d.c.). The connection and disconnection must imperatively be preformed off-load. Socket-outlet contacts are not protected (IP0X according to IEC/EN 60529 standard)

Warnings

  • These accessories must be installed by a qualified electrician, according to applicable installation standards and to the present instruction sheet
  • Use a conductor cross-section suitable for the load
  • The tightening torque must not be transmitted to the insulating part of the accessory. Maintain the rear of the contact with a suitable key while tightening
  • Respect tightening torques
  • These accessories must be used according to their designed destination, in a strict respect of the required operation of connection and disconnection
  • Marechal accessories must be used with Marechal complementary accessories only. Any repair or service must be achieved with genuine Marechal parts only
  • The cables must not exert any constraint on the accessories
Marechal CS 75-250Amps Socket Outlets - Install & Operation Guidelines

Marechal CS 75-250Amps Socket Outlets – Install & Operation Guidelines

Install & Operation Guidelines
  • Strip the conductor according to the ferrule used.
  • Crimp the threaded lug or the ferrule with an appropriate die (NFC 20-130 or VDE 0220 or another). A double hexagonal crimping is recommended. For threaded lugs, do not crimp beyond the line.
  • Slide the neoprene sleeve so that the screw heads fit into the slots provided (CS2 and CS3), or the contact body fits into the groove (CS5). A small amount of wire pulling lubricant may make sliding easier.

Operation

Insert plug into receptacle or inlet into connector and rotate 1/4 turn clockwise until locked. Rotate anticlockwise to disconnect.
