ATEX Marking Explained | How to Read Ex Equipment Labels
Published 11 Jun 2026
ATEX marking is the information shown on certified hazardous area equipment to identify where and how it can be used safely in potentially explosive atmospheres. It usually includes the equipment group, category, gas or dust suitability, explosion protection method, gas group, temperature class, equipment protection level and certificate reference.
For engineers, buyers, site managers and safety teams, understanding ATEX equipment markings is essential. A product described as “ATEX certified” is not enough on its own — the marking must match the hazardous area zone, gas or dust group, temperature class and installation conditions for the site.
Quick Answer: What Does ATEX Marking Mean?
ATEX marking shows the certified limits of hazardous area equipment. It tells the user whether the equipment is suitable for gas, vapour, mist or dust atmospheres, which hazardous area zone it can be used in, what explosion protection method it uses, what gas or dust group it is approved for, and what maximum surface temperature or T-class applies.
What Is ATEX Marking?
ATEX marking is the visible certification code applied to equipment designed for use in potentially explosive atmospheres. It helps users identify whether a product is suitable for specific hazardous area conditions.
ATEX markings are commonly found on equipment such as:
- ATEX lighting for Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas.
- ATEX heaters for industrial and hazardous area heating applications.
- Heat trace systems for frost protection and process temperature maintenance.
- ATEX enclosures and junction boxes for power, control and instrumentation circuits.
- ATEX plugs, sockets and connectors for hazardous area electrical connection.
- ATEX isolators for local electrical isolation.
- Process instrumentation used in hazardous process environments.
The marking should always be checked alongside the product certificate, manufacturer instructions and the hazardous area classification for the site. Correct certification does not remove the need for correct product selection, installation, inspection and maintenance.
External reference: The European Commission explains that ATEX Directive 2014/34/EU applies to equipment and protective systems intended for use in potentially explosive atmospheres.

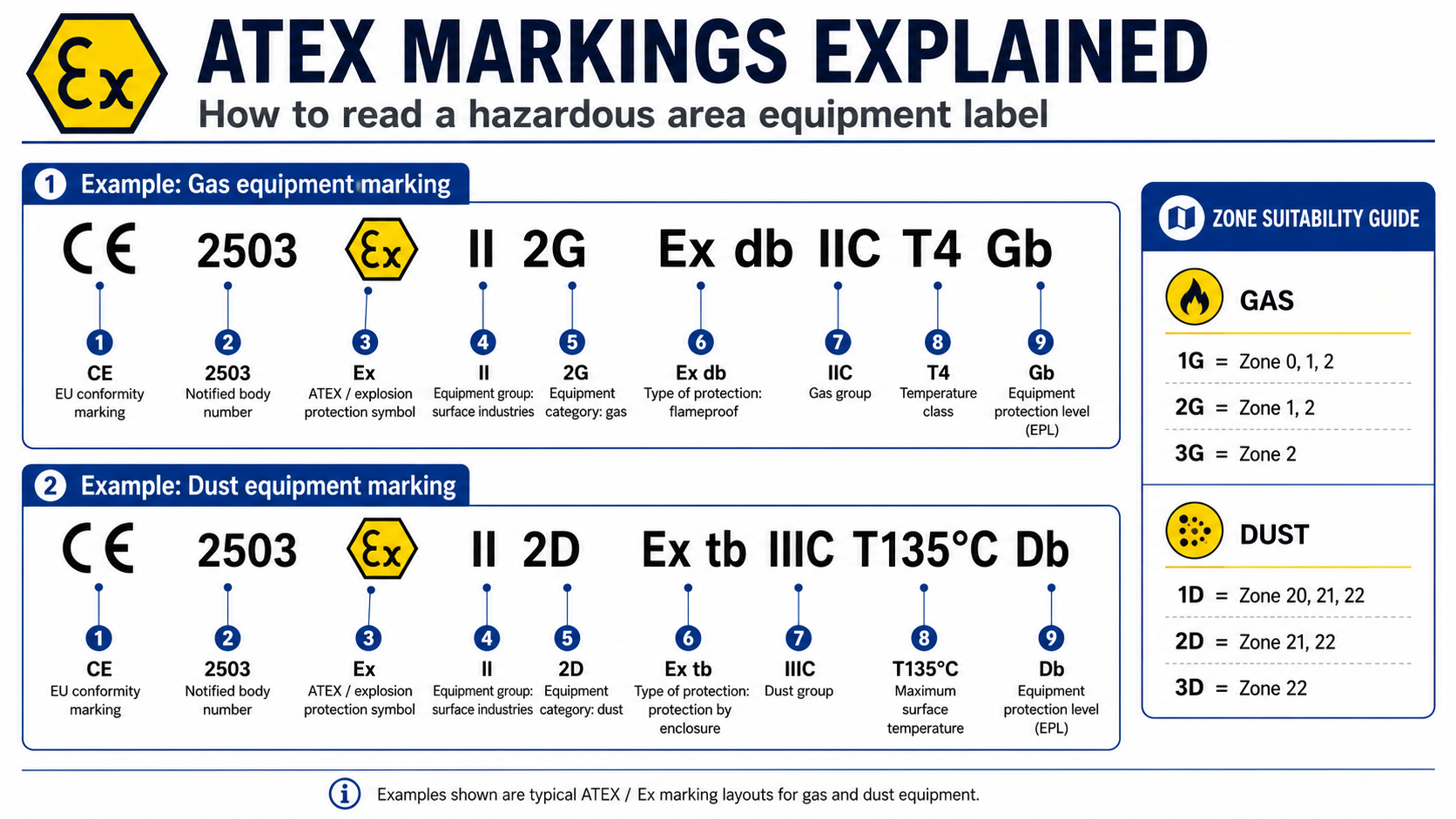

ATEX Marking Example Explained
A typical hazardous area equipment marking may look similar to the example below. Exact markings vary depending on the equipment, certification, protection concept, gas or dust atmosphere, temperature class and manufacturer.
Important: This is only an example. The actual suitability of any ATEX marked product must be confirmed against the full certificate, manufacturer instructions, ambient temperature range, installation method, cable entries, accessories and any special conditions of safe use.
ATEX Equipment Groups Explained
ATEX markings identify the type of environment the equipment is designed for. The first major distinction is the equipment group.
Most industrial hazardous area products supplied for oil and gas, chemical, petrochemical, utilities, pharmaceutical, food processing and energy applications are typically associated with Group II gas atmospheres, Group III dust atmospheres, or both.
ATEX Categories & Hazardous Area Zones
ATEX equipment categories help identify the level of protection provided by equipment and the type of hazardous area it may be suitable for. These categories must be considered alongside the site’s hazardous area classification.
For gas, vapour and mist atmospheres:
- Zone 0 – explosive atmosphere present continuously, for long periods or frequently.
- Zone 1 – explosive atmosphere likely to occur in normal operation occasionally.
- Zone 2 – explosive atmosphere not likely in normal operation, or only for short periods if it occurs.
For combustible dust atmospheres:
- Zone 20 – explosive dust atmosphere present continuously, for long periods or frequently.
- Zone 21 – explosive dust atmosphere likely to occur occasionally in normal operation.
- Zone 22 – explosive dust atmosphere not likely in normal operation, or only for short periods if it occurs.
Read more in our guide to Hazardous Area Zones Definitions.
External reference: HSE guidance explains that employers must classify areas where hazardous explosive atmospheres may occur into zones.
Gas & Dust Markings: G, D, IIA, IIB, IIC
ATEX markings also identify whether the equipment is certified for gas, dust, or both.
For gas atmospheres, the marking may include gas groups such as IIA, IIB or IIC.
A product marked for IIC may often be suitable for IIB and IIA atmospheres where all other marking and installation requirements are also satisfied. The reverse is not normally true: equipment marked only IIA should not be assumed suitable for IIB or IIC gas environments.
Related guide: Minimum Ignition Energy.
Ex Protection Methods Explained
The Ex protection method explains how the equipment prevents ignition of the surrounding explosive atmosphere. This is one of the most important parts of an ATEX or IECEx marking.
Different protection methods are used for different product types. For example, an ATEX junction box may use increased safety or flameproof protection, while an instrument circuit may use intrinsic safety. Always check the certificate and manufacturer documentation rather than relying on the protection code alone.
Temperature Class Ratings
The temperature class, often shown as T1 to T6, identifies the maximum surface temperature of equipment under certified conditions. This is critical because hot surfaces can become ignition sources.
A lower temperature value provides a stricter temperature limit. For example, equipment marked T6 has a lower maximum surface temperature than equipment marked T4. The equipment temperature class must be suitable for the auto-ignition temperature of the gas, vapour, mist or dust present.
Read more in our dedicated guide to Temperature T-Class Ratings.
Equipment Protection Levels
An Equipment Protection Level, often shortened to EPL, indicates the level of ignition protection provided by equipment. EPLs are widely associated with IECEx and IEC standards, but they are also commonly seen in Ex markings used on hazardous area equipment.
EPLs are useful because they give a direct indication of the equipment protection level. However, they should still be assessed alongside the full marking, certificate scope, gas or dust group, T-class and installation conditions.
Related guide: What is IECEx Certification?
Certificate Numbers & Special Conditions
ATEX and IECEx marked equipment should include a certificate reference or documentation route that allows the product approval to be checked. The certificate must match the exact product range, model, variant and conditions of use.
A certificate check should confirm:
- Manufacturer name – does the certificate match the actual manufacturer?
- Product type – does it cover the exact product being supplied?
- Model or variant – is the specific version covered?
- Protection method – does it match the Ex marking?
- Gas or dust group – is it suitable for the site atmosphere?
- Temperature class – is it suitable for the ignition temperature of the atmosphere?
- Ambient temperature range – does it match site conditions?
- Special conditions of use – are there any restrictions or installation requirements?
If a certificate number ends with an “X”, this indicates there are specific conditions of safe use. These conditions must be reviewed before installation or operation.
Read more: What is the “X” in Ex Certificates?
For IECEx certificates, users can also check the official IECEx Certificate Database.
Common ATEX Marking Mistakes
ATEX markings are often misunderstood, especially when equipment is being purchased quickly, replaced on site, or sourced from unfamiliar suppliers.
Common mistakes include:
- Assuming “ATEX certified” means suitable for every hazardous area – the marking must match the zone, gas or dust group, temperature class and application.
- Ignoring the difference between gas and dust markings – equipment marked for gas is not automatically suitable for dust, and vice versa.
- Confusing Category 2G with Category 2D – gas and dust categories must be checked separately.
- Checking the product label but not the certificate – markings should be verified against the certificate and manufacturer instructions.
- Overlooking T-class – the maximum surface temperature must be suitable for the atmosphere present.
- Ignoring ambient temperature limits – certification may only apply within a defined ambient temperature range.
- Missing special conditions of use – an “X” suffix can indicate important restrictions.
- Using non-certified accessories – cable glands, plugs, stopping plugs and other accessories may affect the integrity of the installation.
For hazardous area applications, product selection should always be based on the site classification, the full certification documentation and competent technical assessment.
Example ATEX Marked Product Ranges
ATEX markings are found across a wide range of hazardous area electrical and mechanical equipment. Thorne & Derrick supply certified products for industrial and process applications where flammable gases, vapours, mists or combustible dusts may be present.
Typical product ranges include:
- ATEX Lighting – LED floodlights, linear lighting, bulkhead lighting, high bay lighting, emergency lighting and portable hazardous area lighting.
- ATEX & IECEx Heaters – hazardous area fan heaters, space heaters, immersion heaters, enclosure heaters and process heaters.
- Heat Trace Systems – certified trace heating cables, junction boxes, thermostats and controls for hazardous areas.
- ATEX Enclosures & Junction Boxes – power, control, instrumentation and heat tracing enclosures.
- ATEX Plugs, Sockets & Connectors – hazardous area electrical connection systems.
- ATEX Isolators – local isolation and control devices for certified hazardous area installations.
- Static Grounding Systems – equipment used to help control electrostatic ignition risks in process environments.
- Process Pressure Measurement – instrumentation used for measurement and control in industrial process applications.
When selecting equipment, the marking should be checked against the full application. For example, an ATEX light fitting suitable for Zone 2 gas atmospheres may not be suitable for Zone 1, Zone 21, combustible dusts, higher ambient temperatures or a different gas group unless the full marking and certificate confirm suitability.
ATEX Marking FAQs
Q: What does ATEX marking mean?
A: ATEX marking identifies how equipment is certified for use in potentially explosive atmospheres. It can show the equipment group, category, gas or dust suitability, protection method, gas group, temperature class, equipment protection level and certificate reference.
Q: What does II 2G mean in ATEX marking?
A: II means the equipment is intended for surface industries rather than mining. 2G means Category 2 equipment for gas, vapour or mist atmospheres. Category 2G equipment is commonly associated with Zone 1 applications, subject to the full marking and certificate conditions.
Q: What is the difference between 2G and 2D?
A: 2G refers to Category 2 equipment for gas, vapour or mist atmospheres. 2D refers to Category 2 equipment for combustible dust atmospheres. A product marked for gas should not automatically be assumed suitable for dust unless the marking and certificate confirm dust suitability.
Q: What does Ex db mean?
A: Ex db is a flameproof protection marking. It indicates that the equipment uses a flameproof enclosure designed to contain an internal explosion and prevent flame transmission to the surrounding explosive atmosphere, within the certified limits of the product.
Q: What does IIC mean in ATEX marking?
A: IIC is the most severe gas group within Group II gas atmospheres. Hydrogen and acetylene are commonly associated with IIC. Equipment marked IIC may often be suitable for IIB and IIA atmospheres when all other conditions are also met, but the certificate must always be checked.
Q: What does T4 mean on ATEX equipment?
A: T4 means the maximum surface temperature of the equipment does not exceed 135°C under certified conditions. The T-class must be suitable for the auto-ignition temperature of the hazardous atmosphere present.
Q: Is ATEX marking the same as IECEx marking?
A: ATEX and IECEx markings are closely related and often use similar Ex coding, but they are not the same certification scheme. ATEX is a European legal framework, while IECEx is an international certification system. Read more in our guide to ATEX vs IECEx.
Q: Can I rely on the ATEX label alone?
A: No. The label is important, but it should be checked against the certificate, manufacturer instructions, hazardous area classification, ambient temperature, gas or dust group, T-class, accessories and any special conditions of safe use.
Conclusion
ATEX marking is essential for selecting and verifying hazardous area equipment. It helps identify whether a product is suitable for gas or dust atmospheres, which zone it may be used in, what explosion protection method is applied, what gas group and temperature class apply, and what equipment protection level is provided.
However, ATEX marking should never be read in isolation. The safest approach is to check the full marking, certificate number, manufacturer documentation, special conditions of use, ambient temperature range and site hazardous area classification before installation.
