Appleton ATX RELED Recessed & Surface-Mount LED Luminaires

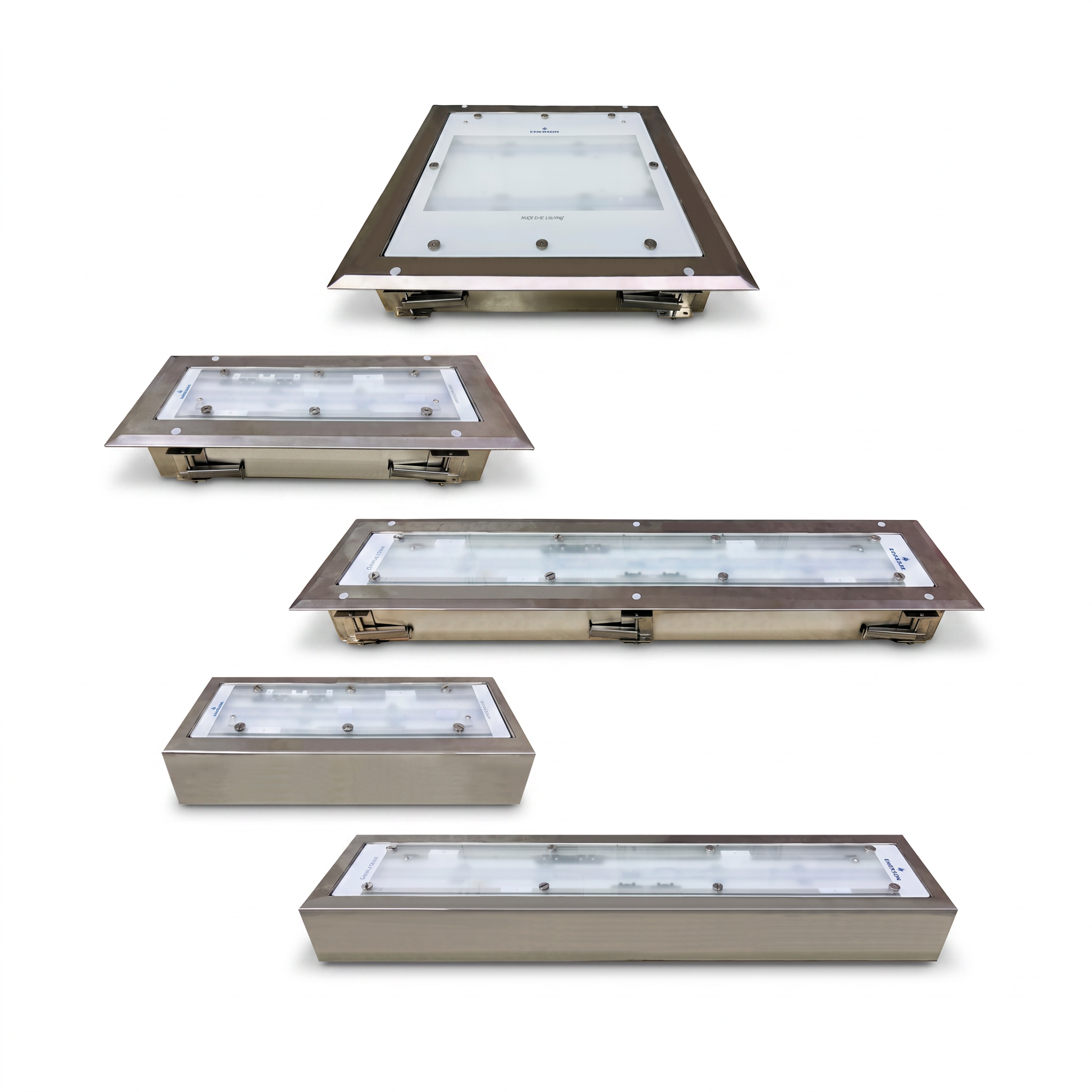

Appleton ATX RELED Recessed & Surface Mount LED luminaires

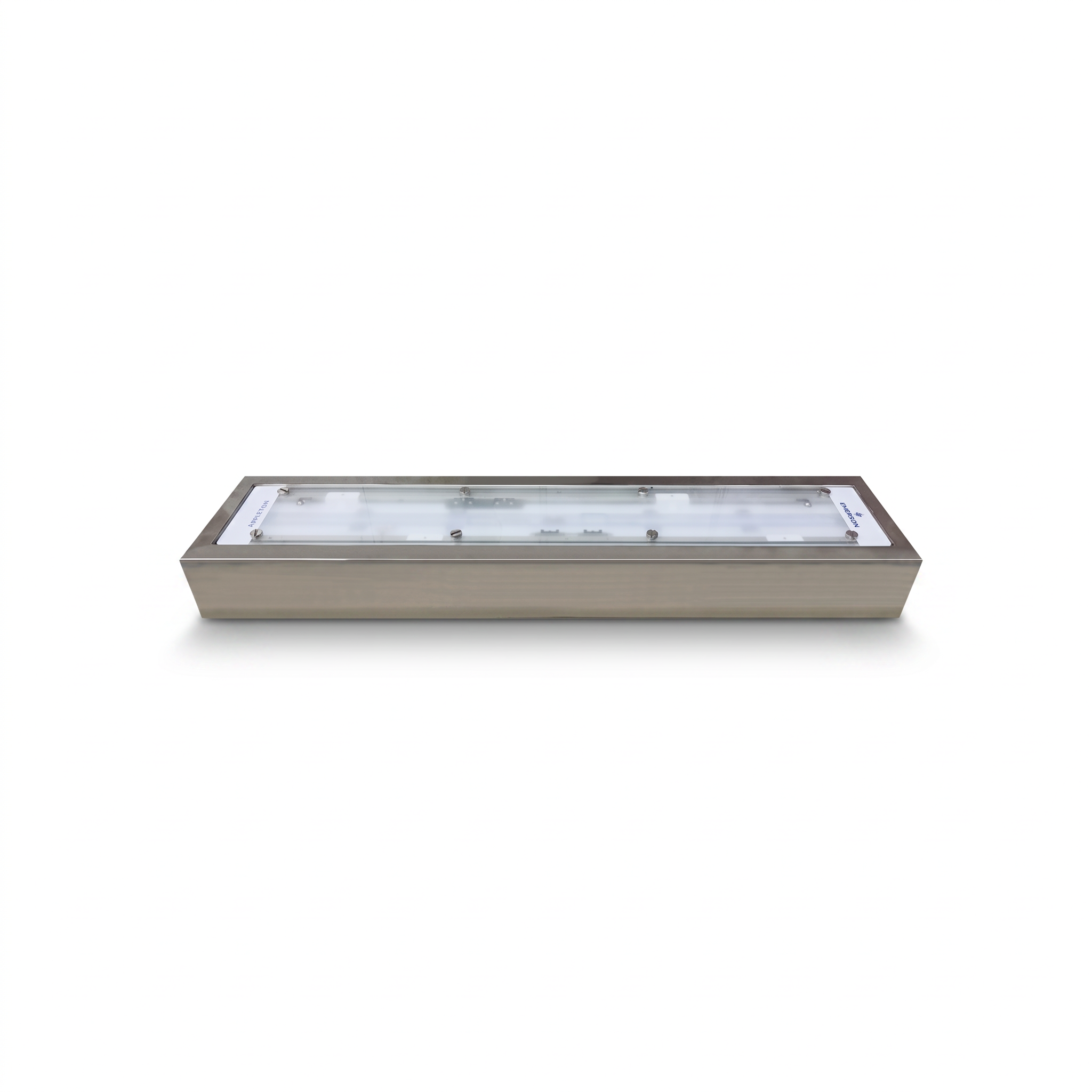

Appleton ATX RELED Recessed Light

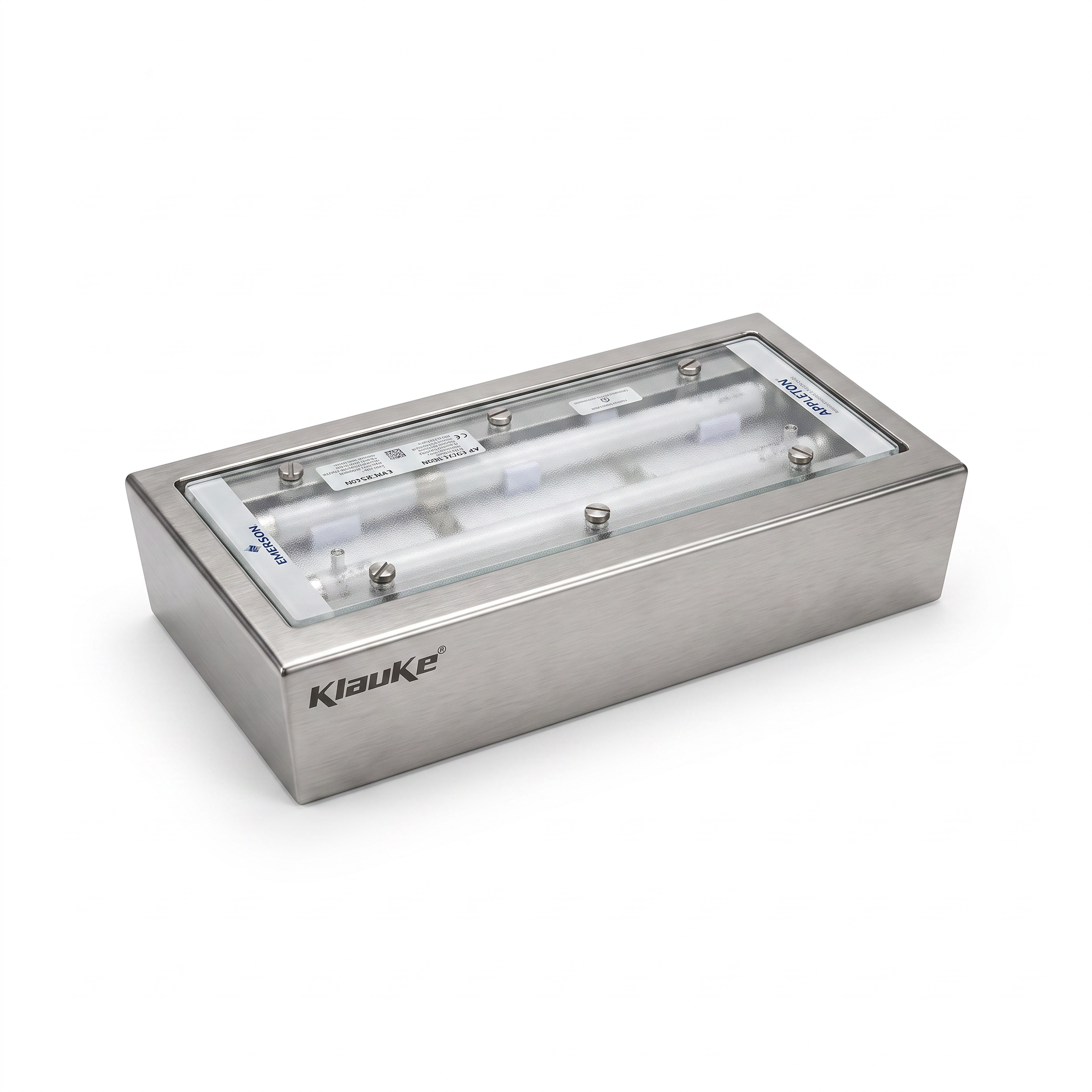

Appleton ATX RELED Recessed Light

Appleton atx reled recessed & surface mount led luminaires

Appleton

Product Code: Appleton ATX RELED

ATEX Certified
IECEx Certified

The Appleton ATX RELED Series provides recessed and surface-mounted LED lighting for Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas. Available in linear and 600 x 600mm formats, the range offers 1,500 to 7,800 lumens, four colour temperatures, optional emergency backup and rugged stainless-steel construction.


SEE TECHNICAL SPECIFICATIONS

Appleton ATX RELED Product Overview

The Appleton ATX RELED Series provides recessed and surface-mount LED lighting for demanding hazardous and industrial environments. Available in linear and 600 x 600mm formats, the range offers approximately 1,500 to 7,800 lumens, four colour temperatures, optional emergency backup and rugged stainless-steel construction.

Certified for hazardous area Zone 1, Zone 2, Zone 21 and Zone 22, the RELED Series is available in 600mm linear, 1200mm linear and 600 x 600mm configurations.

The range provides approximately 1,500 to 7,800 lumens and is offered in 2200K, 3000K, 4000K and 5000K colour temperatures. Optional 0–10V dimming and emergency battery backup make RELED suitable for both general and emergency hazardous area lighting.

Contact Thorne & Derrick for technical support, product selection and quotations for the
Appleton ATX RELED Series. We supply hazardous area lighting for UK and international
oil, gas, petrochemical, pharmaceutical, marine and industrial projects.

Contact Our Experts

Technical Specifications

Appleton ATX RELED Technical Specifications

Specification RELED Series
Product Type Recessed and surface-mount LED luminaire
Hazardous Area Zones Zone 1, Zone 2, Zone 21 and Zone 22
Certifications IECEx and ATEX certified
Mounting Options Recessed or surface mounted
Lumen Output 1,500 to 7,800 lumens
Material Stainless steel
Dimming Control 0–10V dimming
Emergency Battery Backup Optional 90 or 180 minutes
Emergency Testing Automatic self-test every 14 days, with an annual full-duration test
Available Formats 600mm (2 ft) linear, 1200mm (4 ft) linear and 600 x 600mm (2 x 2 ft)
Colour Temperatures 5000K, 4000K, 3000K and 2200K
Warranty 10 years

Available RELED Luminaire Formats



600mm Linear

Compact linear configuration for corridors, smaller processing rooms, access areas and industrial installations where available ceiling space is limited.

1200mm Linear

Longer linear hazardous area luminaire for larger production spaces, plant rooms, walkways and industrial processing areas.

600 x 600mm Panel

Square recessed or surface-mounted configuration for modular ceilings, control areas, production rooms and hazardous industrial interiors.

Key Benefits

The Appleton ATX RELED Series combines flexible installation, multiple light outputs and dependable LED performance for demanding hazardous area and industrial lighting projects.

Benefit Description
Flexible Installation Available in recessed and surface-mount configurations to suit different ceiling layouts and installation requirements.
Three Luminaire Formats Choose from 600mm linear, 1200mm linear and 600 x 600mm formats for different industrial lighting layouts.
Wide Lumen Range Approximately 1,500 to 7,800 lumens enables selection for compact areas and larger industrial spaces.
Multiple Colour Temperatures Available in 2200K, 3000K, 4000K and 5000K options to support different working environments and lighting preferences.
Consistent Performance A shared electrical and optical platform provides consistent lighting performance across recessed and surface-mounted installations.
Simplified Specification The common RELED platform can help simplify product selection, project specification and distributor stocking requirements.
Emergency Lighting Options Selected configurations are available with 90-minute or 180-minute emergency battery backup.
Automatic Emergency Testing Compatible emergency versions include automatic self-testing and an annual full-duration test to support routine maintenance programmes.
Smart Lighting Compatibility Optional 0–10V dimming enables integration with compatible Appleton lighting-control systems.
Long-Term Reliability Rugged stainless-steel construction, long LED service life and a 10-year warranty support dependable long-term operation.

Appleton ATX RELED Applications

The Appleton ATX RELED Series is designed for demanding hazardous and industrial environments requiring dependable LED illumination, durable construction and flexible recessed or surface-mount installation.

  • ✔
    Offshore Oil & Gas Platforms
  • ✔
    Chemical Processing Facilities
  • ✔
    Petrochemical Facilities
  • ✔
    Paint Booths
  • ✔
    Washdown Areas
  • ✔
    Food & Beverage Plants
  • ✔
    Pharmaceutical Plants
  • ✔
    Marine Terminals

Appleton ATX RELED Certifications

The Appleton ATX RELED Series is available with
ATEX and IECEx certification for qualifying hazardous gas and dust environments.
The precise certification marking and operating limits must be confirmed for the selected RELED configuration.


Certification

ATEX

Certification

IECEx

Gas Environments

Zone 1 & Zone 2

Dust Environments

Zone 21 & Zone 22

ATEX Certified

ATEX certification symbol for Appleton ATX RELED luminaires

ATEX certification supports the specification of selected
Appleton ATX RELED luminaires
for qualifying hazardous area installations within applicable European markets.

IECEx Certified

IECEx certification symbol for Appleton ATX RELED luminaires

IECEx certification supports the use of qualifying
Appleton ATX RELED configurations
across international hazardous area and export projects.
