ATEX Ammeter & 3-Position Selector Switch | Zone 1 & Zone 2 Hazardous Area | ATX U43W2VA13M3

âž¡ ATX U43W2VA13M3 control station with Ammeter & 3-Position Selector Switch is certified according to ATEX for safe installation in potentially explosive atmospheres and hazardous area locations according to the following classifications:

  • Zone 1 and Zone 2 Hazardous Areas
  • Zone 21 and Zone 22 Hazardous Areas
  • II 2 GD
  • Ex de IIC/Ex demb IIC/Ex tD A21
  • IP66 – IK09

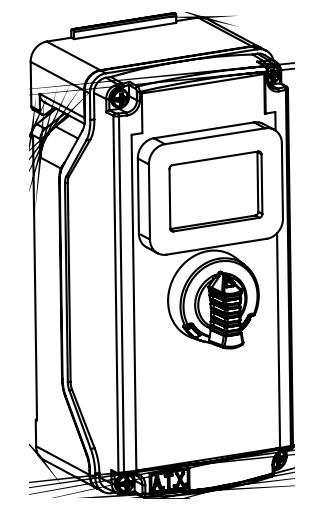

ATX U43W2VA13M3

Ammeter & 3-Position Selector Switch

  • Manufacturer: Appleton ATX
  • Order Code: U43W2VA13M3
  • Description: 1x ammeter 1.89 x 1.89 in/48 x 48 mm, 1A C.T.,3 F.L.C., with 0 – 1 – 3 scale 1x 3-position selector switch ‘I – 0 – II’ with spring return from II to 0 1NO + 1NC contacts
  • Bottom Entries: 2 X M20
  • Weight: 0.80kg (1.76 lb)
  • Volume: 2.5dm³ (152.26in³)
  • View complete range of ATEX Control Stations
