ATEX Enclosures

Enclosures with ATEX Certification

Thorne & Derrick provide both standard and customer designed ATEX Enclosures – this includes enclosures with ATEX Certification suitable for flammable gas (Zone 1/2) and combustible dust (Zone 21/22) potentially explosive atmospheres manufactured from stainless steel, GRP or aluminium. The enclosures are classified for submersible, flameproof and explosion proof applications in onshore and offshore locations – from extensive stock we can build and populate enclosures for cost-effective electrical and instrumentation connections in Ex environments.

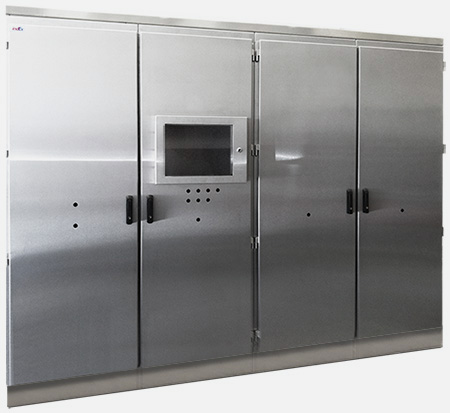

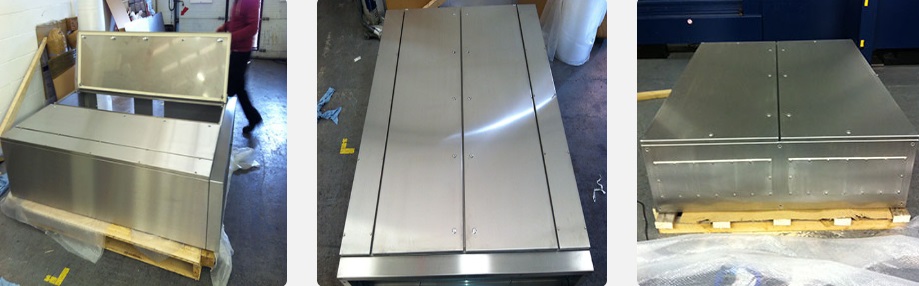

There is a demand for larger floor standing ATEX enclosures – this is an extension of rapid software design as Thorne & Derrick have the ability to scale up the front build process to accommodate these much larger enclosures.

The largest component approved ATEX enclosure currently stands at 2000mm(h)x1200(w)x800(d) – the build quality and material gauge are of sufficient rigidity and durability to withstand the same environmental and physical impact that the smaller ATEX enclosures must endure.

Hazardous Area Enclosures

MV & HV Electrical Enclosures

Industrial Enclosures

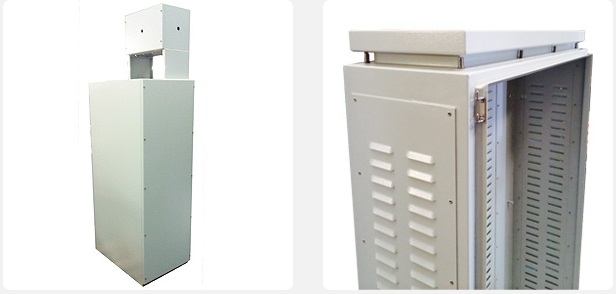

The following available optional enclosure extras are available on request:

• Plinths (top and bottom)
• Sun/ rain canopy
• Sloping roofs
• Eye bolts for lifting
• Removable door stays
• Bi folding enclosure doors
• Door and body strengthening
• Up to 3mm gauge steel through out
• Cut-outs, entries and cable gland plates any side
• Rapid delivery to your engineering design
• ATEX COMPONENT APPROVED up to 2000mmx1200mmx800mm

---

Enclosures

Enclosures with ATEX Certification are available in stainless steel, GRP and aluminium with various explosion protection concepts including Increased Safety (Ex e), Explosion Proof (Ex d) and Intrinsic Safety (Ex i) – all are ATEX and IECEx compliant and available with global certifications including EAC (TR CU), InMetro and North American approvals for the USA, Class 1 Div 2 and Canada, Class 1 Zone 2.

• Overview of ATEX Enclosures
• Stainless Steel Enclosures & Junction Boxes
• Aluminium Enclosures & Junction Boxes
• GRP Enclosures & Junction Boxes
• GRP Assembled Enclosures & Junction Boxes
• Fire Rated Enclosures & Junction Boxes (IEC311 BS6387)

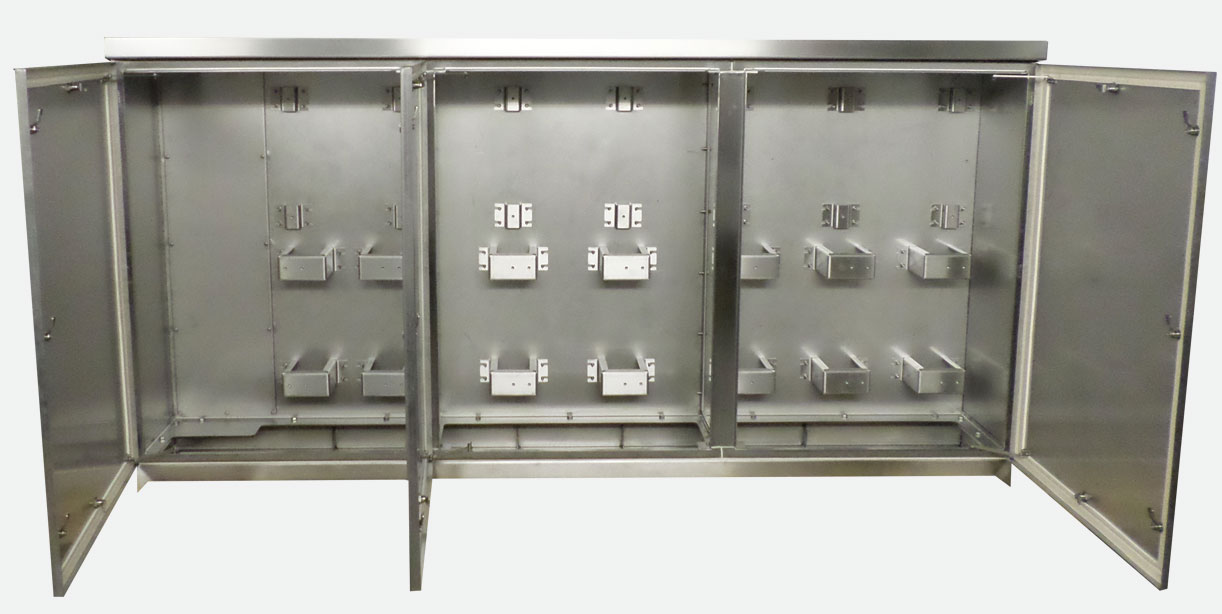

• High Voltage Hazardous Area Electrical Enclosures & Junction Boxes

ATEX Directive & Equipment Supply

Thorne & Derrick are leaders in the development and distribution of Product Innovations that deliver significant improvements to clients plant, people and operational safety in the explosive atmosphere industries.

Your proactive problem solvers experienced in succession planning for the replacement of obsolete, non-conformant and legacy equipment in hazardous areas.

Your first-choice provider of innovative and competitive solutions to ensure ATEX & IECEx Compliance for Hazardous Area Electrical, HVAC & Process Instrumentation Equipment to your UK and international projects.
