SPARTAN Recess Zone 1 Modular Emergency Hazardous Area Recessed Lights | SPX-RCM612-EMX25
SPARTAN Recessed Modular Lighting

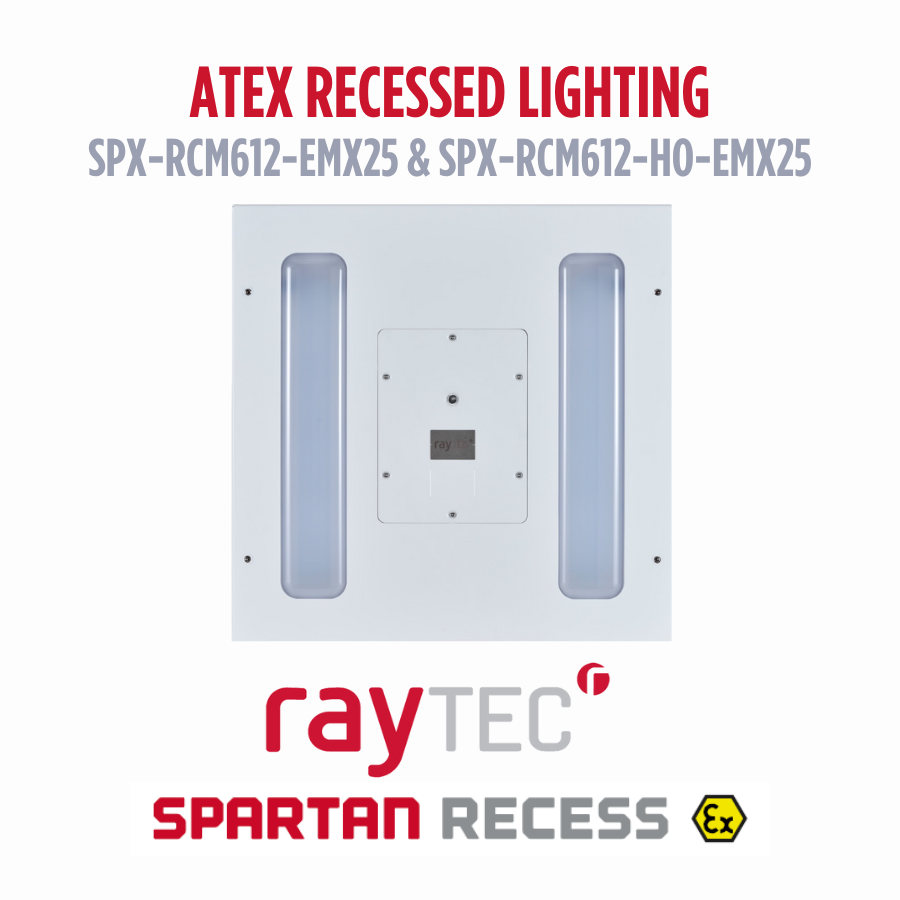

SPARTAN Recess SPX-RCM612-EMX25
Zone 1 & 21 SPX Recess Light Fittings – Modular ATEX, UKCA and IECEx Rated for Gas & Dust Explosive Atmospheres
The new SPARTAN Recess range of ATEX recessed lighting suitable for Zone 1 & 21 hazardous areas, showcases an innovative modular design that emphasises lightweight construction and convenient access from both above and below the ceiling, simplifying installation and maintenance.
âž¡ See for Zone 2 & Zone 22 Recessed Lights
The SPX-RCM612-EMX25 recess modular light fitting has a lumen output of 6158 (High Output 12316lm). Additionally, there is a standard version, the SPX-RCM612-HO-EMX25, which delivers an impressive 6158 lumens, ideal for environments requiring significantly brighter lighting.
The SPARTAN Recess SPX-RCM612-EMX25 is a versatile lighting fixture weighing 15.6 kg. Its 600 x 1200 Emergency variant is designed for multiple mounting options, allowing it to be installed on ceilings, floors, or walls.
This flexibility makes it suitable for various applications and environments, providing efficient illumination while complementing different interior designs. With its adaptable installation options, the SPX-RCM612-HO can enhance both functionality and aesthetics in a range of settings.
If you require a standard variant of the recessed lighting please quote SPX-RCM612.
Each SPARTAN ATEX light is proudly designed and manufactured in the UK by Raytec, ensuring high-quality craftsmanship. Additionally, they come with an industry-leading 5-year warranty, providing peace of mind for users.
spartan recess spx-rcm612-EMX25
Hazardous Area Rating: Zone 1 & 21 – Gas & Dust
| ATEX Rating | ATEX, UKEX & IEC Ex rated for Gas & Dust | |||||
| Hazardous Area Rating | Zone 1 (Gas), Zone 21 (Dust) | |||||
| Certificates | CML 23ATEX5448X CML 23UKEX5449X IECEx CML 23.0150X |
|||||
| Gas | II 2 G D Ex eb mb IIC T4 Gb Ta = -40°C to +60°C (Ta = -40°C to +50°C ) when covered with insulation Ta = -20°C to +50°C (Ta = -20°C to +40°C when covered with insulation) – emergency variants |
|||||
| Dust | Ex tb IIIC T95°C Db Ta = -40°C to +60°C (Ta = -40°C to +50°C) when covered with insulation) Ta = -20°C to +50°C (Ta = -20°C to +40°C when covered with insulation) – emergency variants |
|||||

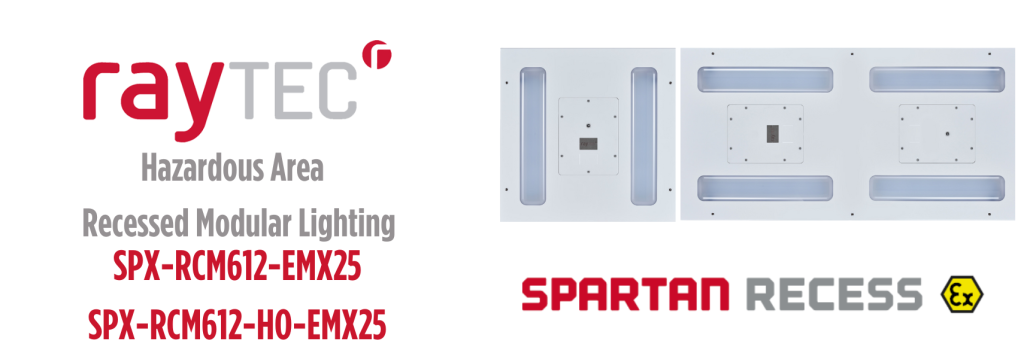

Hazardous Area Recessed Lighting | SPx-RCM612-EMX25 & SPx-RCM612-HO-EMX25
Technical Specification
| Input | 110-277VAC 50/60Hz |
| Power | 56W |
| High Output Power | N/A |
| Termination | Incoming terminal block suitable for looping 4 core 4mm² (6mm² available – POA) |
| Power Factor | >0.95 |
| Cable Entries | 2xM20 cable entries, loop in/loop out as standard (other entries available upon request). (Dispatched complete with one ATEX/IEC Ex/UKEX approved blanking plug) |
| DALI | All non-emergency 110-277V variants are DALI 2.0 enabled as standard. Terminals provided for loop in/loop out 2 core control cable |
| Beam Pattern | 120° x 120° as standard More options available, see beam patterns below |
| Lumen Output on Mains |
6158lm |
| LED Type | Platinum Elite SMT LEDs |
| Number of LEDS | 320 |
| CRI | 80+ |
| Colour Temp | 6500K Other options available, please contact T&D for more information |
| Burning Position | Universal – Ceiling, wall or floor mount |
| IK Rating | IK10 |
| Weight | 15.6kg |
| Housing and Geartray | Epoxy Powder Coated Aluminium (Stainless steel options available – POA) |
| Unit Colour | Fine Texture White RAL 9016 (other colours available – POA) |
| Installation Instructions | See below |
| Mounting | Lay-in (T Ceiling) as standard Pull-up and Surface Mount Accessory Kits available |
| Temperature Range | -20° to +50°C (+40°C with insulation) -4°F to +122°F (+104°F with insulation) |
| Insulation – optional | Rockwool or equivalent – maximum thickness 100mm at a density of 110Kg/m3 See Temperature Range and Certification Section |
| IP Rating | IP65 |
Product dimensions can be modified to suit particular ceiling types or to assist in retrofitting existing installations – please contact T&D for further information and assistance.

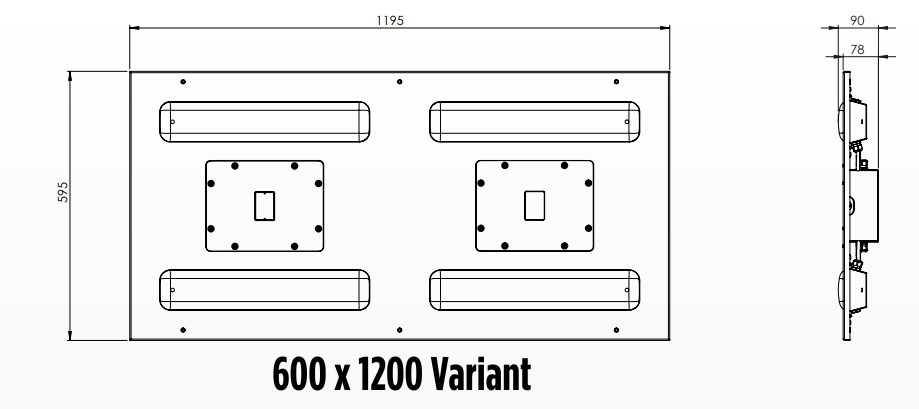

Recess Modular Lighting 600 x 1200 Variant | Product Dimensions
SPARTAN Zone 1 & 21 Recess Lighting
Product Codes
| SPARTAN Zone 1/21 600 x 1200 Recess Modular | |
| SPX-RCM612 | SPARTAN Zone 1 Recess Modular 600×1200 WL |
| SPX-RCM612-EMX25 | SPARTAN Zone 1 Recess Modular Intelligent Emergency 25% 600×1200 WL |
| SPARTAN Zone 1/21 600 x 1200 Recess Modular High Output | |
| SPX-RCM612-HO | SPARTAN Zone 1 High Output Recess Modular 600×1200 WL |
| SPX-RCM612-EMX25-HO | SPARTAN Zone 1 High Output Recess Modular Intelligent Emergency 25% 600×1200 WL |
LIGHTING DESIGNS FOR HAZARDOUS AREAS
Upgrading Plant Legacy Lighting to LED
Thorne & Derrick | Specialist Distributors Hazardous Area Lighting, Electrical & HVAC Products | ATEX, IECEx & UKEx
âž¡ Should you require any technical support, product selection guidance or a lighting design utilising the SPARTAN range of lighting for Explosive Atmospheres please do not hesitate to contact us – we can assist in the upgrade of your lighting system from conventional fluorescent to modern technology, energy-efficient and sustainable LED type fittings.
