SPARTAN Recess Zone 1 Recessed Plank Emergency Hazardous Area Lights | SPX-RCP308-EMX25

Hazardous Area Recessed Plank Lighting

SPARTAN Recess SPX-RCP308-EMX25

Hazardous Area Recessed Lighting | SPX-RCP308-EMX25

SPARTAN Zone 1 & 21 Recess Lighting

Product Codes

LIGHTING DESIGNS FOR HAZARDOUS AREAS

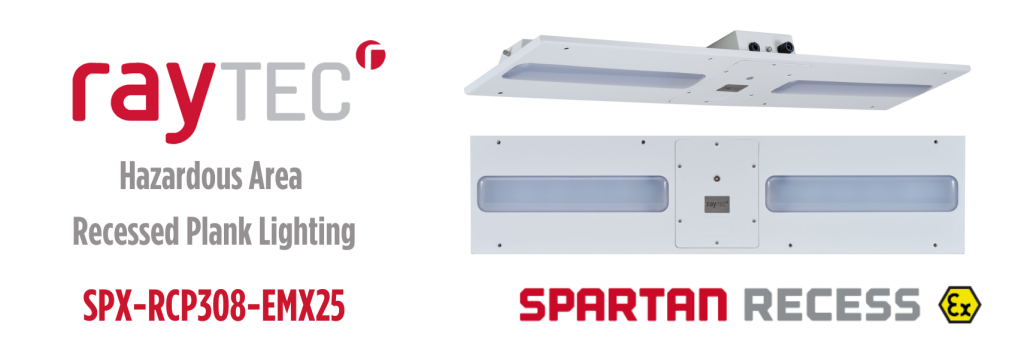

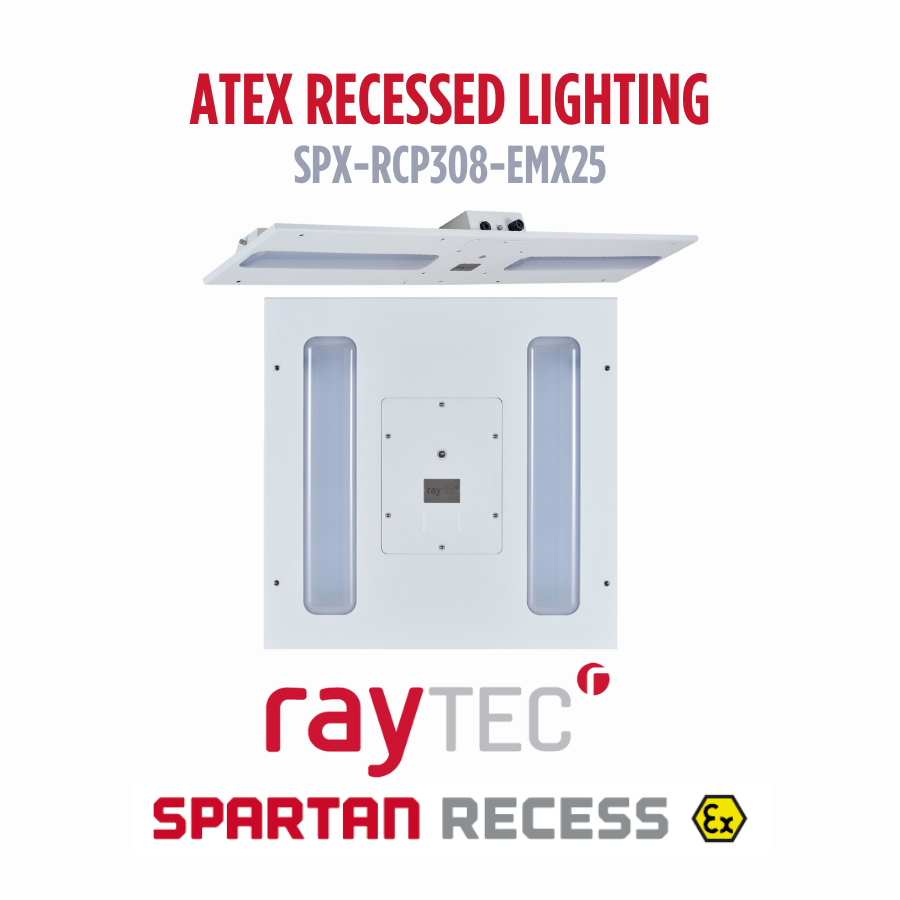

SPARTAN Recessed Plank SPX-RCP308-EMX25

Zone 1 & 21 SPX Recess Light Fittings – Plank ATEX, UKCA and IECEx Rated for Gas & Dust Explosive Atmospheres

The new SPARTAN Recess range of ATEX recessed lighting suitable for Zone 1 & 21 hazardous areas, showcases an innovative modular design that emphasises lightweight construction and convenient access from both above and below the ceiling, simplifying installation and maintenance.

➡ See for Zone 2 & Zone 22 Recessed Lights

The SPX-RCP308-EMX25 recess plank emergency light fitting has a lumen output of 3079.

The SPARTAN Recess SPX-RCP308-EMX25 is a versatile lighting fixture weighing 5.8 kg. Its 275 x 800 variant is designed for multiple mounting options, allowing it to be installed on ceilings, floors, or walls.

This flexibility makes it suitable for various applications and environments, providing efficient illumination while complementing different interior designs. With its adaptable installation options, the SPX-RCP308-EMX25 can enhance both functionality and aesthetics in a range of settings.

If you require an non emergency variant of the recessed lighting please quote SPX-RCP308.

Each SPARTAN ATEX light is proudly designed and manufactured in the UK by Raytec, ensuring high-quality craftsmanship. Additionally, they come with an industry-leading 5-year warranty, providing peace of mind for users.

Hazardous Area Rating: Zone 1 & 21 – Gas & Dust

SPARTAN Recess Plank Lighting

Technical Specification

Input	110-277VAC 50/60Hz
Power	32W
High Output Power	N/A
Termination	Incoming terminal block suitable for looping 4 core 4mm² (6mm² available – POA)
Power Factor	>0.95
Cable Entries	2xM20 cable entries, loop in/loop out as standard (other entries available upon request). (Dispatched complete with one ATEX/IEC Ex/UKEX approved blanking plug)
DALI	All non-emergency 110-277V variants are DALI 2.0 enabled as standard. Terminals provided for loop in/loop out 2 core control cable
Beam Pattern	120° x 120° as standard More options available, see beam patterns below
Lumen Output on Mains	3079lm
LED Type	Platinum Elite SMT LEDs
Number of LEDS	80
CRI	80+
Colour Temp	6500K Other options available, please contact T&D for more information
Burning Position	Universal – Ceiling, wall or floor mount
IK Rating	IK10
Weight	5.8kg
Housing and Geartray	Epoxy Powder Coated Aluminium (Stainless steel options available – POA)
Unit Colour	Fine Texture White RAL 9016 (other colours available – POA)
Installation Instructions	See below
Mounting	Pull-up and Surface Mount Accessory Kits available 300mm Marine type plank ceiling systems as standard
Temperature Range	-20° to +50°C (+40°C with insulation) -4°F to +122°F (+104°F with insulation)
Insulation – optional	Rockwool or equivalent – maximum thickness 100mm at a density of 110Kg/m3 See Temperature Range and Certification Section
IP Rating	IP65

Product dimensions can be modified to suit particular ceiling types or to assist in retrofitting existing installations – please contact T&D for further information and assistance.

SPARTAN Recess Zone 1 Recessed Plank Hazardous Area Lights | SPX-RCP308-EMX25

SPARTAN Zone 1/21 275 x 800 Recess Plank
SPX-RCP308	SPARTAN Zone 1 Recess Plank 300×800 WL
SPX-RCP308-EMX25	SPARTAN Zone 1 Recess Modular Intelligent Emergency 25% 300×800 WL

ATEX Rating

ATEX, UKEX & IEC Ex rated for Gas & Dust

Hazardous Area Rating

Zone 1 (Gas), Zone 21 (Dust)

Certificates

CML 23ATEX5448X
CML 23UKEX5449X
IECEx CML 23.0150X

II 2 G D Ex eb mb IIC T4 Gb
Ta = -40°C to +60°C (Ta = -40°C to +50°C ) when covered with insulation
Ta = -20°C to +50°C (Ta = -20°C to +40°C when covered with insulation) – emergency variants

Ex tb IIIC T95°C Db
Ta = -40°C to +60°C (Ta = -40°C to +50°C) when covered with insulation)
Ta = -20°C to +50°C (Ta = -20°C to +40°C when covered with insulation) – emergency variants

Upgrading Plant Legacy Lighting to LED

Thorne & Derrick | Specialist Distributors Hazardous Area Lighting, Electrical & HVAC Products | ATEX, IECEx & UKEx

➡ Should you require any technical support, product selection guidance or a lighting design utilising the SPARTAN range of lighting for Explosive Atmospheres please do not hesitate to contact us – we can assist in the upgrade of your lighting system from conventional fluorescent to modern technology, energy-efficient and sustainable LED type fittings.
