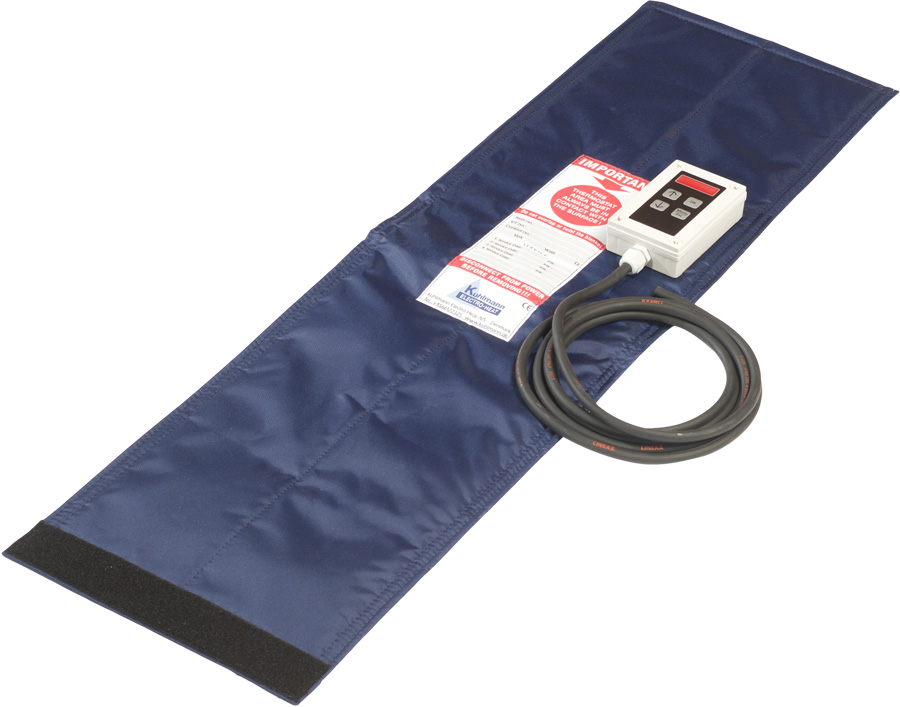

Composite Curing Heating Blankets 110V with Digital Controller 0-90°C

View Sub Products

110V Composite Curing Heating Blankets with Digital Controller 0-90°C

Composite Curing Heating Blankets 110V with Digital Controller 0-90°C

Composite Curing Heating Blankets

Silicone Heating Blankets

Composite curing heating blankets form part of Thorne & Derrick’s Silicone Heating Blankets range and are the ideal product when it comes to safety and effectively needing to heat an area/material to a certain temperature – ideal for composite repair and fabrication. The heating blankets makes it easy to heat up material including composite, carbon, epoxy prepreg and ensure a safe, uniform and accurate temperature distribution on the surface of the material.

Please note: A composite curing heating blanket the same size as the repair area is too small. Heating blankets must be considerably larger than the area being cured.

The composite curing heating blankets can be used can be used on horizontal surfaces, vertical surfaces, and on complex contoured surfaces without removing the damaged section ensuring better control of curing temperature and even distribution of heating.

This type of silicone heaters are suitable for numerous industries mainly the repair of wind turbine blades, repair and production of both the marine industry and the aerospace industry.

The heating blankets have the ability to heat up to 90°C using an adjustable digital controller 0-90°C (32-194°C) and are flexible, lightweight and durable in design. They have a 7mm insulation aiding heat retention and making the blanket suitable for both indoor and outdoor use.

Composite curing heating Blankets

Specifications:

  • Nylon Material
  • Polyester insulation
  • 8mm insulation for minimal heat loss.
  • Teflon Heating Wire
  • Grounded Heating system
  • Safety Thermostat
  • Available with adjustable Digital temperature controllers , Temp Sensor  or bi-metal limiter.
  • 3M power Cable (no plug)
  • Optimal curing of the composite materials, carbon, and epoxy pre preg.
  • The blankets can be put together to cover a larger surface.
  • Straps for fixed installation (optional).
  • Many sizes in stock.
  • Special sizes produced upon request.


T&D are able to offer heating blankets in many standard sizes with different outputs which can be found in the below table. Custom size and/ or outputs are available on request.

Part NumberVoltage & Power ConsumptionSize Color
HF5W1(A)/A/700110V / 700W3000 x 500mm (118.1 x 19.7in)Dark Blue
HF5W1(B)/A/540110V / 540W2000 x 500mm (78.7 x 19.7in)Dark Blue
HF5W1(C)/A/250110V / 250W1000 x 500mm (39.4 x 19.7in)Dark Blue
HF5W1(D)/A/220110V / 220W600 x 600mm (23.6 x 23.6in)Dark Blue
HF5W1(E)/A/450110V / 450W1000 x 1000mm (39.4 x 39.4in)Dark Blue
HF5W1(F)/A/450110V / 450W1300 x 1300mm (51.2 x 51.2in)Dark Blue
HF5W1(G)/A/1200110V / 1200W2000 x 1000mm (78.7 x 39.4in)Dark Blue
HF5W1(H)/A/400110V / 200W3800 x 290mm (149.6 x 11.4in)Dark Blue
Part Numbers Explained

Part Numbers Explained

Applications:

  • Curing composite materials
  • Curing carbon
  • Curing epoxy prepreg
  • Curing processes in aerospace industry
  • Curing processes in marine industry
  • Wind turbine rotor blade repair
  • Wind turbine rotor blade production
