Silicone Heating Blankets

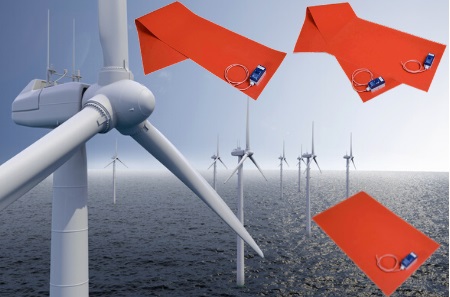

Silicone Heating Blankets are the ideal product when it comes to safety and effectively needing to heat elements to a certain temperature. The heating blankets makes it easy to heat up material including composite, carbon, epoxy prepreg and ensure a safe and uniform temperature distribution on the surface of the material.

This type of silicone heaters are suitable for numerous industries mainly the repair of wind turbine blades, repair and production of both the marine industry and the aerospace industry.

The heating blankets have the ability to heat up to 120°C. This blanket is without insulation which results in perfect contact and even heat spreading to the material. Industrial heating high temperature blankets are produced with a controllable Jumo thermostat box.

T&D are able to offer heating blankets in many standard sizes with different outputs which can be found in the below table. Custom size and/ or outputs are available on request.

Silicone Heating Blankets 230V

Specifications

  • Optimal curing of the composite materials, carbon, and epoxy prepreg
  • Available with adjustable Jumo thermostat (0-120°C)
  • 1 meter power cord (no plug)
  • Straps for fixed installation (optional)
  • Many sizes in stock
  • Special sizes produced upon request


T&D are able to offer heating blankets in many standard sizes with different outputs which can be found in the below table. Custom size and/ or outputs are available on request.

Part Number Voltage & Power Consumption Size  Color
HF5W2(A)/B/1460 230V / 1460W 3000 x 500mm (118.1 x 19.7in) Silver
HF5W2(B)/B/1140 230V / 1140W 2000 x 500mm (78.7 x 19.7in) Silver
HF5W2(C)/B/640 230V / 640W 1000 x 500mm (39.4 x 19.7in) Silver
HF5W2(D)/B/430 230V / 430W 600 x 600mm (23.6 x 23.6in) Silver
HF5W2(E)/B/1220 230V / 1220W 1000 x 1000mm (39.4 x 39.4in) Silver
HF5W2(F)/B/1420 230V / 1420W 1300 x 1300mm (51.2 x 51.2in) Silver
HF5W2(G)/B/1750 230V / 1750W 2000 x 1000mm (78.7 x 39.4in) Silver
HF5W2(H)/B/1040 230V / 1040W 1200 x 800mm (47.2 x 31.5in) Silver
Part Numbers Explained

Part Numbers Explained

Applications:

  • Curing composite materials
  • Curing carbon
  • Curing epoxy prepreg
  • Curing processes in aerospace industry
  • Curing processes in marine industry
  • Windmill blade repair
  • Windmill blade production
