ATEX Recessed Lighting

Hazardous Area Recessed Lights

SPARTAN Recess

Recessed Modular & Plank Lighting

SPARTAN RECESS Product Codes

LIGHTING DESIGNS FOR HAZARDOUS AREAS

Recessed Lighting Zone 1 & 21

Zone 1 & Zone 21 Recessed Lighting

The SPARTAN Recess range offers a cutting-edge modular design that prioritises both lightness and accessibility, making installation and maintenance a breeze from both above and below the ceiling.

Proudly designed and manufactured in the UK, all SPARTAN luminaires come backed by an impressive 5-year warranty, ensuring peace of mind and long-lasting performance. This innovative product line is perfect for those seeking reliable and efficient hazardous area lighting solutions.

With its modular design, lightweight construction, ease of maintenance, and multiple beam options, SPARTAN Recess ATEX lighting is the perfect solution for any application, ceiling type, or installation method. Modular options available in 600×600, 300×1200 and 600×1200 with plank options available in 275×800 and 275×1400 with a lumen output of 3079 or 6158 for the high output version.

Available in emergency and high output variants the Zone 1 & Zone 21 recessed lights can be tailored to meet the specific needs of the user.

➡ Zone 2 & Zone 22 Recessed Lighting

ATEX Recessed Lighting is available in modular and plank options

Key Benefits:

Modular Design: Available in various bespoke and plank sizes, SPARTAN Recess can be tailored to fit any specific need. Whether you’re working with a unique ceiling configuration or require a custom-fit solution, our modular design ensures a seamless integration
Lightweight Construction: Built 50% lighter than equivalent products, SPARTAN Recess reduces the weight load on your ceiling, making installation and maintenance a breeze. This feature also reduces the risk of damage to the luminaire or surrounding structure
Ease of Maintenance: Designed with accessibility in mind, SPARTAN Recess can be serviced from both below and above the ceiling. This ensures quick and easy maintenance, minimising downtime and reducing costs
Multiple Beam Options: With various beam angles available, SPARTAN Recess caters to different applications and requirements. From narrow-beam spotlights to wide-beam general lighting, T&D have got you covered

Lightweight Design

SPARTAN Recess is built 50% lighter than equivalent products. It’s lightweight design allows for easier installation and reduces the weight load on the ceiling.

Lightweight Design

Multiple Beam Angles

The Zone 1 & Zone 21 Recessed Lighting are available with a range of different beam angles to suit a wide range of applications.

Multiple Beam Angles

Hazardous Area Rating: Zone 1 & 21 – Gas & Dust

ATEX Recessed Lighting

Product Dimensions

Product dimensions can be modified to suit particular ceiling types or to assist in retrofitting existing installations – please contact T&D for further information and assistance.

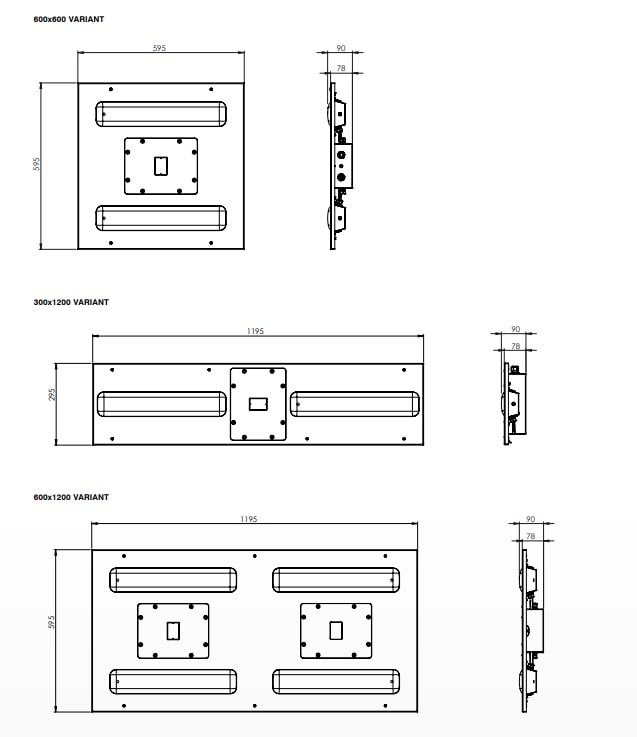

ATEX Recess Modular Lighting Zone 1 & Zone 21

ATEX Recess Plank Lighting Zone 1 & Zone 21

Recess Modular

SPARTAN Zone 1/21 600 x 600 Recess Modular
SPX-RCM66	SPARTAN Zone 1 Recess Modular 600×600 WL
SPX-RCM66-EMX25	SPARTAN Zone 1 Recess Modular Intelligent 25% 600×600 WL
SPARTAN Zone 1/21 600 x 600 Recess Modular High Output
SPX-RCM66-HO	SPARTAN Zone 1 High Output Recess Modular 600×600 WL
SPX-RCM66-EMX25-HO	SPARTAN Zone 1 High Output Recess Modular Intelligent 25% 600×600 WL

SPARTAN Zone 1/21 600 x 1200 Recess Modular
SPX-RCM612	SPARTAN Zone 1 Recess Modular 600×1200 WL
SPX-RCM612-EMX25	SPARTAN Zone 1 Recess Modular Intelligent 25% 600×1200 WL
SPARTAN Zone 1/21 600 x 1200 Recess Modular High Output
SPX-RCM612-HO	SPARTAN Zone 1 High Output Recess Modular 600×1200 WL
SPX-RCM612-HO-EMX25	SPARTAN Zone 1 High Output Recess Modular Intelligent 25% 600×1200 WL

SPARTAN Zone 1/21 300 x 1200 Recess Modular
SPX-RCM312	SPARTAN Zone 1 Recess Modular 300×1200 WL
SPX-RCM312-EMX25	SPARTAN Zone 1 Recess Modular Intelligent 25% 300×1200 WL
SPARTAN Zone 1/21 300 x 1200 Recess Modular High Output
SPX-RCM312-HO	SPARTAN Zone 1 High Output Recess Modular 300×1200 WL
SPX-RCM312-HO-EMX25	SPARTAN Zone 1 High Output Recess Modular Intelligent 25% 300×1200 WL

Recess Plank

SPARTAN Zone 1/21 300 x 800 Recess Plank
SPX-RCP308	SPARTAN Zone 1 Recess Plank 300×800 WL
SPX-RCP308-EMX25	SPARTAN Zone 1 Recess Plank Intelligent 25% 300×800 WL

SPARTAN Zone 1/21 300 x 1400 Recess Plank
SPX-RCP314	SPARTAN Zone 1 Recess Plank 300×1400 WL
SPX-RCP314-EMX25	SPARTAN Zone 1 Recess Plank Intelligent 25% 300×1400 WL
SPARTAN Zone 1/21 300 x 1400 Recess Plank High Output
SPX-RCP314-HO	SPARTAN Zone 1 High Output Recess Plank 300×1400 WL
SPX-RCP314-HO-EMX25	SPARTAN Zone 1 High Output Recess Plank Intelligent 25% 300×1400 WL

ATEX Rating

ATEX, UKEX & IEC Ex rated for Gas & Dust

Hazardous Area Rating

Zone 1 (Gas), Zone 21 (Dust)

Certificates

CML 23ATEX5448X
CML 23UKEX5449X
IECEx CML 23.0150X

II 2 G D Ex eb mb IIC T4 Gb
Ta = -40°C to +60°C (Ta = -40°C to +50°C ) when covered with insulation
Ta = -20°C to +50°C (Ta = -20°C to +40°C when covered with insulation) – emergency variants

Ex tb IIIC T95°C Db
Ta = -40°C to +60°C (Ta = -40°C to +50°C) when covered with insulation)
Ta = -20°C to +50°C (Ta = -20°C to +40°C when covered with insulation) – emergency variants

Upgrading Plant Legacy Lighting to LED

Thorne & Derrick | Specialist Distributors Hazardous Area Lighting, Electrical & HVAC Products | ATEX, IECEx & UKEx

➡ Should you require any technical support, product selection guidance or a lighting design utilising the SPARTAN range of lighting for Explosive Atmospheres please do not hesitate to contact us – we can assist in the upgrade of your lighting system from conventional fluorescent to modern technology, energy-efficient and sustainable LED type fittings.
