ATEX Street Lighting Zone 1 & 21 | Raytec SPARTAN SPX-SL96 | Up To 6,770 Lumens
SPX-SL96 | ATEX Street Lighting Zone 1 & 21
Raytec SPX-SL96
ATEX Street Light Up To 6,770 Lumens
Zone 1 & 21 Light Fittings ATEX, UKEX and IEC Ex Rated for Gas & Dust Explosive Atmospheres
SPARTAN range of ATEX Street Lights form part of the Hazardous Area Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations which require high performance, high reliability and white-light illumination in potentially explosive atmospheres.
SPARTAN Street SPX-SL96 is a powerful multi-purpose LED luminaire for use in a wide range of Zone 1 and Zone 21 (Gas & Dust) hazardous areas.
The Street Light is available with a range of optics and beam patterns (PP1-AR1).These optics and beam patterns help illuminate access roads, walkways and perimeters. It can also be used for illuminating areas located on site that can be deemed high risk or been classified as a hazardous area.
âž¡ Read More In Our Blog – Hazardous Area Lighting | SPARTAN Ex Luminaire by Raytec
Hazardous Area Rating: Zone 1 & 21 – Gas & Dust
Zone 1 Gas
II 2 G
Ex eb mb IIC T4 Gb
Ta = – 40°C to +50°C
Zone 21 Dust
II 2 D
Ex tb IIIC T80°C Db
Ta = -40°C to +50°C

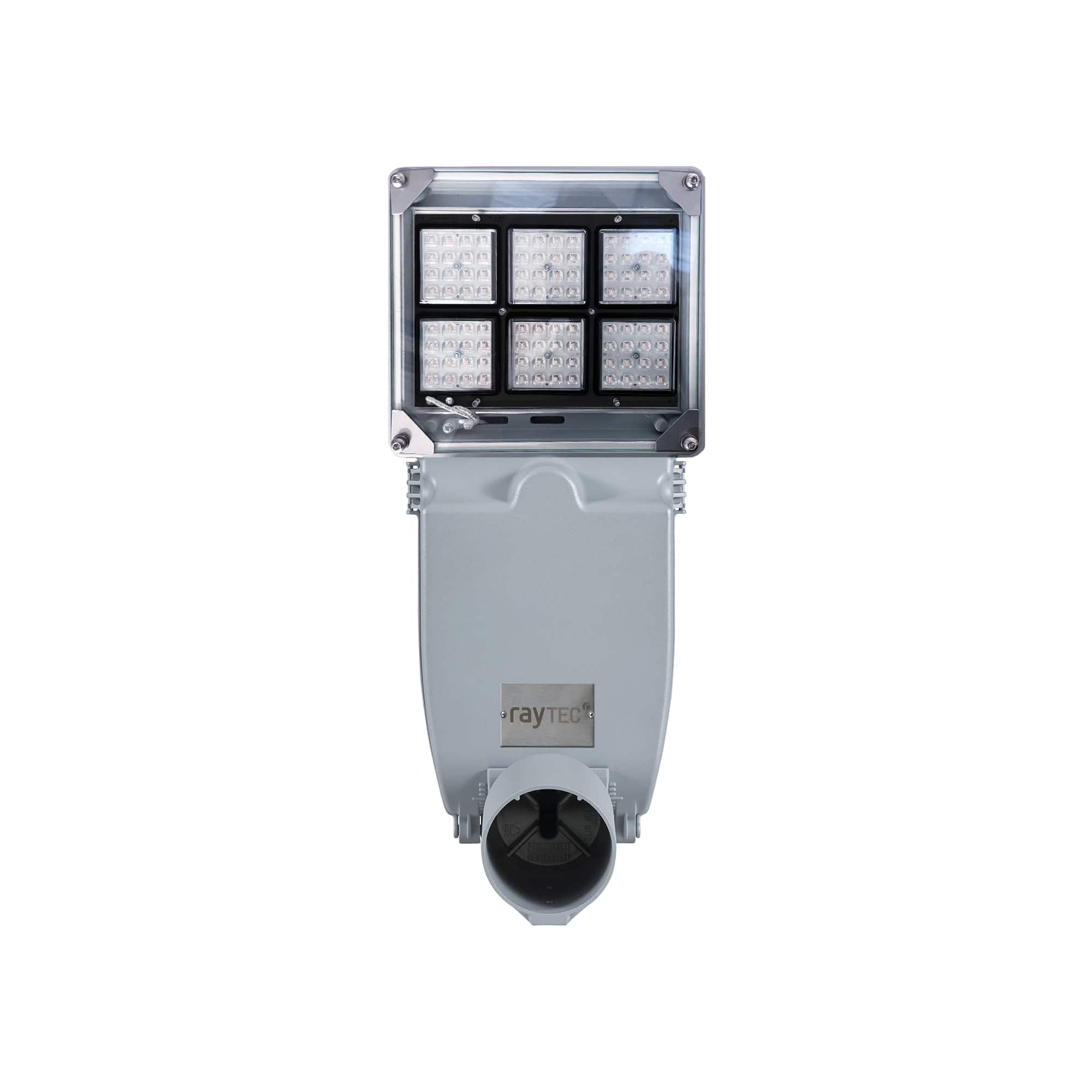

SPARTAN-Street | SL96
With an adjustable bracket that can be rotated 90°, the luminaire can be fixed to any column, bracket or pole in post top or side arm configuration.
SPARTAN Street delivers significant energy savings and outstanding optical performance.
Zone 1 & 21 Street light features
- Raytec Part Number – SPX-SL96
- ATEX and IEC Ex approved – Zone 1 (Gas) & Zone 21 (Dust)
- UKCA approved
- Up to 6,770 Lumen Output
- Easy Installation and Maintenance
- Ultra Long Life LED
- Extreme Durability and Toughness
- Wide Operating Temp -40° to +50°
- 5 Year Warranty
- UK Designed and Manufactured

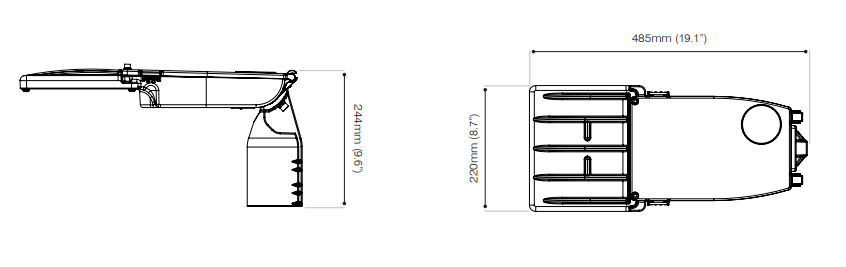

SPX-SL96 Product Dimensions
ATEX Street Lighting
Technical Specification
| Certification: | ATEX, UKCA and IEC Ex rated for Zone 1 and 21 Gas and Dust |
| Beam Patterns: | Perimiter/Pathway – PP1 Perimiter/Pathway – PP2 Perimiter/Pathway – PP3 Area – AR1 |
| Input: | 110-254V AC 50/60Hz |
| Beam Angle System: | Fixed |
| Spigot (Pole) Diameter | Compatible with 76mm pole diameter (48mm & 60mm pole adaptors are available) |
| Mounting: | Supplied with Integrated Spigot Mount with adjustable rotation |
| LED Type: | Platinum Elite SMT LEDs |
| Number of LEDs: | 96 |
| Power Output: | Up to 6,770 |
| Wavelength: | White Light |
| IP Rating: | IP66 |
| Temperature Range: | -40°C to +50°C |
| Weight | 6.5kg |
ATEX STREET LIGHTING
Certifications:
| SL96 | |
| ATEX Rating | ATEX Rating ATEX, UKEX and IEC Ex rated for Gas and Dust |
| Hazardous Area Rating | Zone 1 (Gas), Zone 21 (Dust) |
| Certificates | IECEx CML 23.0094X, CML 23ATEX3246X, CML 23UKEX3247X |
| Gas | II 2 G Ex eb mb IIC T4 Gb Ta = -40 °C to +50 °C |
| Dust | II 2 D Ex tb IIIC T80°C Db Ta = -40 °C to +50 °C |

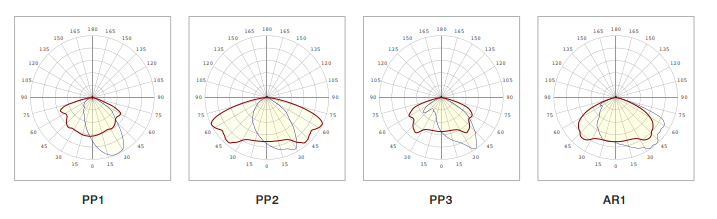

lIGHT dISTRIBUTION
Light Distribution SPX-SL96

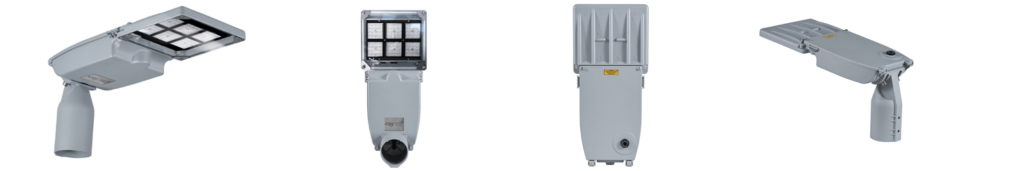

ATEX Spartan street light zone 1 & 21 | SPX-SL96
The SPARTAN Street is a powerful multi-purpose Ex luminaire for use in a wide range of Zone 2 and Zone 22 hazardous areas.
Available with a range of optics, SPARTAN Street provides the ideal solution for illuminating access roads, walkways or perimeters. It can also be used for general illumination of car parks, or other areas located on sites which are deemed high-risk or have been classified as a hazardous area.
With a low power consumption of 53W and high efficacy of 156lm/W. Raytec’s range of SPARTAN Street deliver significant energy savings and outstanding optical performance. The ATEX Light only weighs 6.5kg and comes pre-terminated with a 12M outdoor, cold resistant, PVC cable for a quick and easy installation process.
Raytec are specialists in LEDs and all our products are designed around the LEDs with bespoke housing for optimum performance and reliability.
ATEX Lighting | SPX-SL96
| Â Standard: Example – SPX-SL96-4K-PP1 | ||||
| Family | Model | CCT | Optic | Pole Adaptor |
| SPX | SL96 | 4K | PP1 | Not stated- Suits 76mm Pole |
| Other Colour Options available | PP2 | (60mm & 48mm Pole adaptors are available) | ||
| PP3 | ||||
| AR1 | ||||
ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
Datasheet-SPARTAN-Street-Zone-1-21
Download
