MEDC PH1 Call Point | ATEX IECEx Explosion Proof & Hazardous Area Call Points

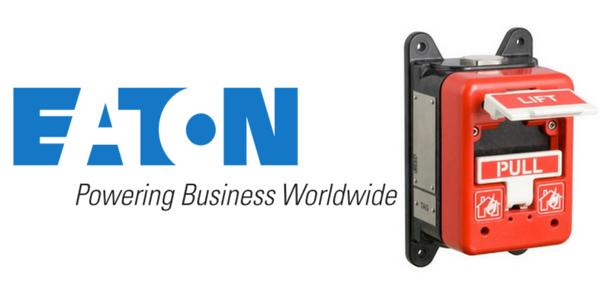

ATEX Call Points Zone 1 & Zone 2 Pull Handle Hazardous Area Ex d – Eaton MEDC PH1 Hazardous Area Manual Call Point

MEDC PH Call Point | ATEX IECEx Explosion Proof & Hazardous Area Call Points

MEDC PH

MEDC PH1 are ATEX call points with a double action pull handle has been designed for use in flammable atmospheres and harsh environmental conditions in ATEX & IECEx Zone 1 and Zone 2 hazardous area. The hazardous area call points, manufactured by MEDC, are manually operated fire alarms that are both simple to install and maintain in explosive atmospheres in onshore or offshore locations in accordance with the ATEX & IECEx certification and explosion protection levels.

The GRP enclosure of the hazardous area call point is suitable for use offshore or onshore where light weight combined with a high level of corrosion resistance is required.

The large “Lift” and “Pull” GRP handles can be operated effortlessly whilst wearing industrial gloves and require double action to raise the alarm, preventing accidental activation.

:arrow: View the complete range of MEDC call points.

MEDC PH1 Call Point

MEDC PH1 Call Point

ATEX Call Points Zone 1 & Zone 2

Features

Call Point Order Code MEDC PH1.

  • UL Class I, Div 1
  • UL Class I, Div 2
  • Class I, Zone 1 AEx d IIC
  • UL Ord Locs
  • Zone 1 and Zone 2 use.
  • Ex d IIC T6 Gb
  • Ex tb IIIC T85ºC Db
  • IECEx certified Gd, Db
  • ATEX certified call point Ex II 2 GD
  • IP66 & 67 rated ATEX call point
  • Certified temperature: -55°C (-50°C UL) to +70°C
  • Corrosion free GRP construction (stainless steel cover UL Class I, Div 1)
  • Optional series, end of line resistors and diodes
  • Retained stainless steel cover screws for hazardous area call point
ATEX Call Point | Ex II 2 GD

ATEX Call Point | Ex II 2 GD


Hazardous Area Guide

♦ Definition : Potentially explosive atmospheres exist where there is a risk of explosion due to mixtures of gas/air, vapour/air, dust/air or other flammable combinations. Where electrical equipment has to be used in these areas, it must be so designed and constructed such that it does not create sources of ignition capable of igniting these mixtures.
♦ Area Classification : Process plants are divided into Zones (European and IEC method) or Divisions (North American method) according to the likelihood of a potentially explosive atmosphere being present. Note: North American legislation now allows Zones to be used to classify areas, where this practice is used it follows the IEC Zone method.

➡ For further information about see Hazardous Area Zones and T-Class Temperature Ratings.

European ATEX & IEC ClassificationDefinition of Zone or DivisionNorth American Classification
Zone 0 (gases)A hazardous area in which an explosive mixture is continuously present or present for long periodsClass I Division I (gases)
Zone 20 (dusts)Class II Division 1 (dusts)
Zone 1 (gases)A hazardous area in which an explosive mixture is likely to occur in normal operationClass I Division 1 (gases)
Zone 21 (dusts)Class II Division 1 (dusts)
Zone 2 (gases)A hazardous area in which an explosive mixture is not likely to occur in normal operation and if it occurs it will exist only for a short timeClass I Division 2 (gases)
Class II Division 2 (dusts)
Zone 22 (dusts)Class III Division 1 (fibres)
Class III Division 2 (fibres)



IECEx Call Point | Gb, Db Equipment Protection Level

IECEx Call Point | Gb, Db Equipment Protection Level

Eaton MEDC PH1 - Dimensions

Eaton MEDC PH1 – Dimensions

Eaton MEDC PH1 - Standard Wiring Variations For Single & Double Switches

Eaton MEDC PH1 – Standard Wiring Variations For Single & Double Switches

MEDC PH1 Hazardous Area Manual Call Point

Technical Specification

Hazardous Area Certifications
UL Haz LocsUL listed for USA and Canada.
Listing no. E186629.
Class I, Div. 1. Groups B, C & D.
Class I, Div. 2. Groups A- D.
Class I, Zone 1, AEx d IIC, Ex d IIC.
Class II, Div.2, Groups F & G.
Class III.
UL Ord LocsUL Listing no. S8117. Fire alarm boxes.
UL for USA and Canada.
IECEx Ex dCert. no. IECEx ITS.11.0021X.
Certified to: IEC60079-0, IEC60079-1, IEC60079-31.
Ex d IIC T6 Gb, Ex tb IIIC T85ºC Db. IP66.
ATEX Ex dCert. no. ITS11ATEX17308X.
Certified to: EN60079-0, EN60079-1, EN60079-31.
Ex II 2 GD, Ex d IIC T6 Gb, Ex tb IIIC T85ºC Db. IP66.
MaterialBody/covers/handles:- GRP (glass reinforced polyester).
UL Class I, Div. 1 Inner Cover: 316 (ANC4B) Stainless Steel.
Fixings:- Stainless steel grade 316.
FinishCover:- natural red, Body:- natural black.
Handles:- natural white.
Cover may be painted to customer’s requirements.
Voltage0-50Vdc, 0-254Vac
Switch Rating1 or 2 c/o switches, 254V, 3A max
WeightUL Class I, Div 2, ATEX, IECEx & UW: Gross weight 3.2Kg.
Net weight 2.6Kg.
UL Class I, Div. 1: Gross weight 4.4 Kg. Net weight 3.8Kg
Certified TempATEX & IECEx: -55ºC to +70ºC.
UL Class I, Divs. 1 & 2, UW: -50ºC to +70ºC
Ingress ProtectionNEMA 4X & 6. IP66 & IP67
EntriesUL Class I, Div. 1 – Max 1 per face. Up to 2 x 1/2” NPT or 3/4” NPT.
Positions 2 & 5 only.
UL Class I, Div. 2, UW: Up to 2 x 1/2” or 3/4” NPT. 3/4” NPT,
Max. 1 per face & positions 2 & 5 only.
ATEX, IECEx – Max 2 per face. Up to 2 x M20 or M25, up to 2 x 1/2” or
3/4” NPT.
Please note that certified blanking plugs cannot be fitted to this product.
Terminals6 x 2.5sqmm as standard. Contact MEDC for options
Earth Continuity:Earth continuity is provided by internal plate
Duty Labels‘Burning house’ label fitted as standard on red units.
Red blank duty label fitted as standard on all other colour units, unless
text is supplied by customer.
Tag Label: worded to customers requirements.
ResistorsVarious configurations available, 470 Ohms minimum
DiodesVarious configurations available

Eaton MEDC PH1 – Ordering Requirements

The following code is designed to help in selection of the correct MEDC hazardous area call point with ATEX approval and certification. Build up the part number of the call point by inserting the code for each component into the appropriate box.

Eaton MEDC PH1 - Ordering Requirements

MEDC PH1 Call Points – Ordering Requirements



MEDC PH Call Points are certified to International Standards for Explosion Proof Protection Levels and Hazardous Area Classifications

MEDC PH Call Points are certified to International Standards for Explosion Proof Protection Levels and Hazardous Area Classifications

MEDC

MEDC have developed ATEX & IECEx call points designed for harsh and hazardous area conditions and where there is a risk of explosion due to the presence of flammable atmospheres both onshore and offshore – since 1975 MEDC have been designers and manufacturers of Explosion Proof alarm, signal, control and communications equipment.

Thorne & Derrick International, based in the UK, distribute the extensive range of Eaton MEDC ATEX Certified manual call points, visual, audible alarms, loudspeakers and telephones for hazardous area workplaces, including Zone 1 & Zone 2 explosive atmospheres.
