MEDC SM87PB

MEDC SM87PB are ATEX call points designed for use in the most arduous environmental conditions. The hazardous area call points, manufactured by MEDC, are manually operated fire alarms that are both simple to install and maintain in explosive atmospheres in onshore or offshore locations in accordance with the ATEX & IECEx certification and explosion protection levels.

Intrinsically Safe Ex ia and Flameproof Ex d versions of each call point are available for safely raising the alarm in potentially explosive atmospheres including ATEX & IECEx Zone 1 and Zone 2 hazardous areas. Both the Ex ia units and the Ex d versions of the MEDC SM87PG call point have the same external appearance.

The internal components are identical throughout the range. Each unit can be wired for either NO, NC or CO contacts to customer specification

A choice of either stainless steel or alloy makes the ATEX call point range suitable for either the offshore or onshore industries. Stainless steel is one of the most durable materials available on the market and is both hard wearing and corrosion resistant. This increases the life of products in harsh environments and therefore reduces maintenance costs.

➡ View the complete range of MEDC call points.

MEDC SM87PB Call Point

MEDC SM87PB Call Point

ATEX Call Points Zone 1 & Zone 2

Features

Call Point Order Code MEDC SM87PB.

  • Zone 0, Zone 1 and Zone 2 hazardous area use*.
  • Exia IICT4 or Exd IIC T5/T6.
  • ATEX aproved, call point Ex II 1G (Exia) Ex II 2GD (Exd).
  • BASEEFA certified
  • UL Listed (PB only), Class I, Div 1, Groups C & D.
  • CSA certified.
  • IECEx certified.
  • TR CU* certified.
  • Chinese (CQST) certified.
  • Brazilian (Inmetro) certified.
  • DNV certified.
  • SIL2 ceritified.
  • IP66 and IP67.
  • Certified temperature: –55°C to +70°C*.
  • Stainless steel or marine grade alloy ATEX call points
  • Robust yet lightweight.
  • Easy to maintain hazardous area call points

*Depending on version.

MEDC SM87PB

Selection of SM87PB models:
Breakglass Latching BGL
Lift Flap Breakglass Latching LBGL
Push Button Latching Key Reset PBL
Push Button Only Momentary Action PBM

ATEX Call Point | Ex II 1G (Ex ia) or Ex II 2GD (Ex d)

ATEX Call Point | Ex II 1G (Ex ia) or Ex II 2GD (Ex d)

Hazardous Area Guide

♦ Definition : Potentially explosive atmospheres exist where there is a risk of explosion due to mixtures of gas/air, vapour/air, dust/air or other flammable combinations. Where electrical equipment has to be used in these areas, it must be so designed and constructed such that it does not create sources of ignition capable of igniting these mixtures.
♦ Area Classification : Process plants are divided into Zones (European and IEC method) or Divisions (North American method) according to the likelihood of a potentially explosive atmosphere being present. Note: North American legislation now allows Zones to be used to classify areas, where this practice is used it follows the IEC Zone method.

➡ For further information about see Hazardous Area Zones and T-Class Temperature Ratings.

European ATEX & IEC ClassificationDefinition of Zone or DivisionNorth American Classification
Zone 0 (gases)A hazardous area in which an explosive mixture is continuously present or present for long periodsClass I Division I (gases)
Zone 20 (dusts)Class II Division 1 (dusts)
Zone 1 (gases)A hazardous area in which an explosive mixture is likely to occur in normal operationClass I Division 1 (gases)
Zone 21 (dusts)Class II Division 1 (dusts)
Zone 2 (gases)A hazardous area in which an explosive mixture is not likely to occur in normal operation and if it occurs it will exist only for a short timeClass I Division 2 (gases)
Class II Division 2 (dusts)
Zone 22 (dusts)Class III Division 1 (fibres)
Class III Division 2 (fibres)






IECEx Call Point | Gb, Db Equipment Protection Level

IECEx Call Point | Gb, Db Equipment Protection Level

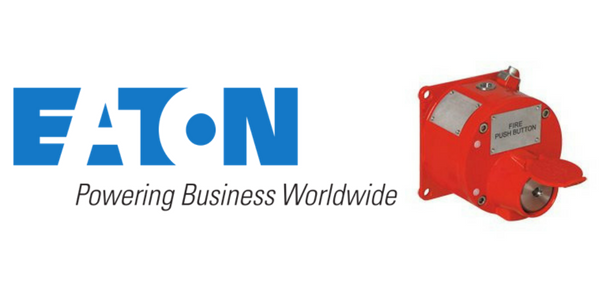

Eaton MEDC SM87PB - Break Glass & Push Button Diagram

Eaton MEDC SM87PB – Break Glass & Push Button Diagram

MEDC SM87PB Hazardous Area Manual Call Point

Technical Specification

Hazardous Area Certifications
ATEX Ex dCert. no. Baseefa03ATEX0075. ATEX Approved Ex II 2GD
Certified to: EN60079-0, EN60079-1, EN60079-31
Ex d IIC T5/T6 Gb, Ex tb IIIC T85°C/T100°C Db. IP66/IP67
ATEX Ex iaCert no. Baseefa 02ATEX0152X. ATEX Approved Ex II 1G
Certified to: EN60079-0, EN60079-11, EN60079-26
Ex ia IIC T4 Ga
IECEx Ex dCert. no. IECEx BAS 09.0060
Certified to: EN60079-0, EN60079-1, EN60079-31
Ex d IIC T5/T6 Gb, Ex tb IIIC T85°/T100°C Db. IP66/IP67
IECEx Ex iaCert. no. IECEx BAS 10.0033X
Certified to: IEC60079-0, IEC60079-11, IEC60079-26
Ex ia IIC T4 Ga
ULListing no. E186629
UL listed to Class 1, Div 1. Groups C & D. (SM87PBL)
ULCCert. no. 20091023-E320282
ULC certified for Class I, Zone 1 Groups C & D
CSA Ex dClass 1, Div 1 & 2. Group D
CSA Ex iaClass 1, Div 1 & 2. Groups A-D
TR CU Ex d1Ex d IIC T5/T6 Gb, Ex tb IIIC T85°/T100°C Db. IP66/IP67
Russian Fire Approved
TR CU Ex ia0Ex ia IIC T4 Ga. Russian Fire Approved
INMETRO Ex dEx d IIC T5/T6 Gb
CQST ExdExd IICT85°C/T100°C
CQST ExiaExia IIC T4
Type ApprovalsDNV (IEC 60945) (Stainless Steel SM87PB only
SILSM87PB only – SIL2 Certification to IEC61508. Cert no. 20151118-4786827453
Specifications
MaterialGrade 316 ANC4B stainless steel or LM 25 TF marine grade alloy
FinishPaint finish as standard or to customer specification
VoltageEx d 24V a.c./d.c. Ex ia 28V
Rating2A
Switches2 pole c/o, wired to terminals
Optional up to 4 pole (UL version 2 pole only)
Optional indicatorA red high intensity LED can be fitted for alarm indication
As standard the LED is not provided with over current protection. The forward
current (If) should be limited to 20mA
Certified tempEx d* –55ºC to +70ºC. Ex ia*–55ºC to +60ºC
–20ºC to +55ºC (LED version only)
UL –40ºC to +70ºC, –20ºC to +55ºC (LED version only)
CSA –50ºC to +55ºC (Ex d), –50ºC to +40ºC (Ex ia)
*Note: includes ATEX, IECEx, CUTR, Brazilian & Chinese versions
Weight3·8 kg. steel (approx.) or 2.5 kg. alloy (approx
Ingress protectionIP66 & IP67. SM87PB IP68 (35m for 40 hours)
EntriesUp to 4 x M20 or M25 ISO Ex d/Ex ia
Up to 4 x 1/2” or 3/4” NPT UL
TerminalsWill accept up to 1·5sqmm cable
Resistor values470R minimum (d.c. & I.S. units only)

Eaton MEDC SM87PB – Ordering Requirements
