Drum Heaters – Rigid Drum Heater Enclosure & Base Heater Set IDR-IBDR-CON



Drum Heaters – Rigid Drum Heater Enclosure & Base Heater Set IDR-IBDR-CON

RIGID DRUM HEATER ENCLOSURE | THERMOCOAX Drum Heater

Heatfast Logo

Product Code: IDR / IDBR – CON

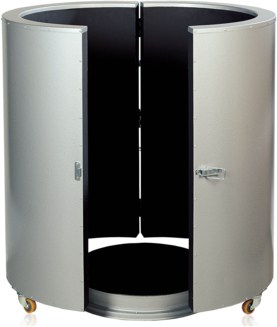

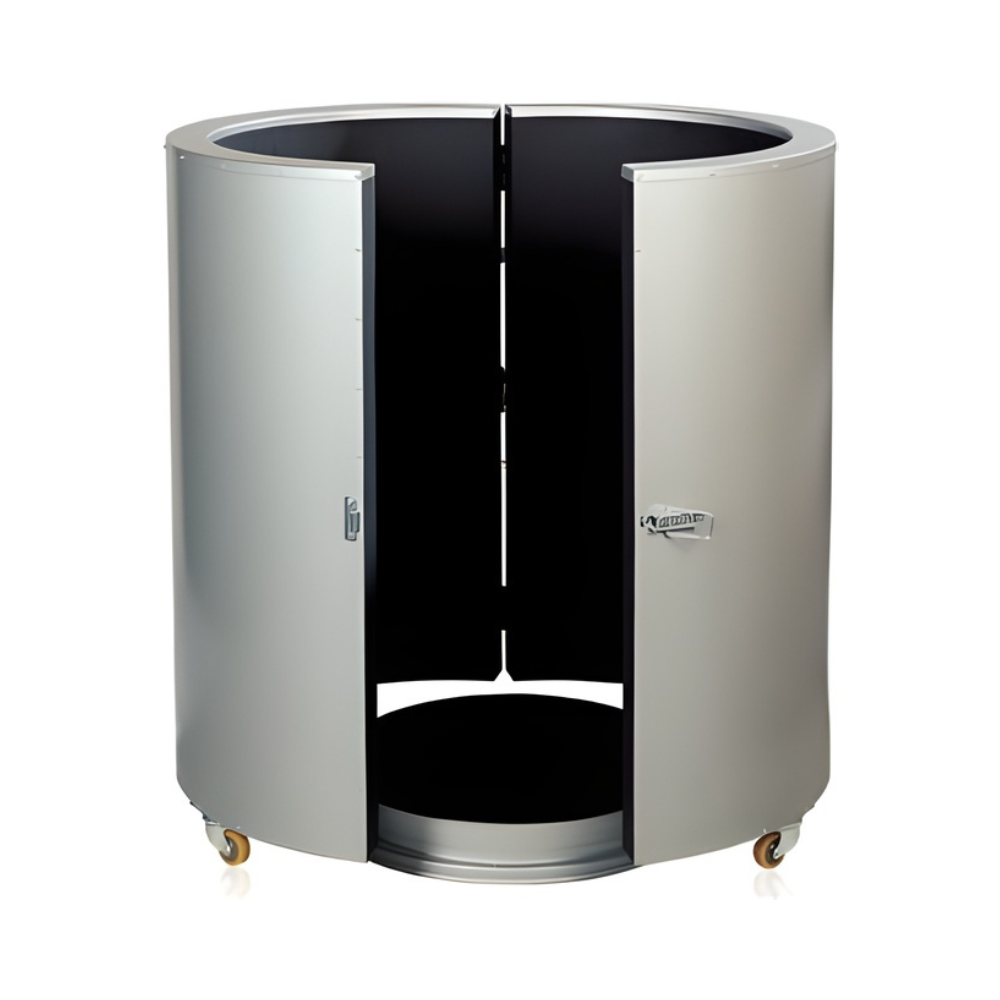

The Thermocoax / ISOPAD IDR–IBDR-CON Rigid Drum Heating Enclosure with Base Drum Heater is a high-performance heating solution designed to deliver uniform, controlled heating of standard 200-litre drums. Combining a rigid insulated enclosure with a dedicated base heater, the system provides efficient full-surface heating for temperature-sensitive products in industrial environments.


SEE TECHNICAL SPECIFICATIONS

Product Overview

Engineered for demanding process applications, the IDR–IBDR-CON system applies heat evenly to both the drum sidewalls and base, significantly reducing heat-up times compared to flexible heating jackets alone. The rigid insulated construction minimises heat loss, improves thermal efficiency and ensures stable temperature maintenance, helping to protect product quality and consistency.

Suitable for steel and plastic drums containing oils, chemicals, resins, fats and other process fluids, the system offers precise temperature control via integrated thermostats and is available in both 230 V and 400 V configurations. Its robust, enclosed design enhances operator safety, supports long service life and makes it ideal for use in warehouses, production areas and process plants.

Contact our trusted experts – place an order or find out more about the Thermocoax Drum Heating Enclosure for your operations. Thorne & Derrick International, based in the UK, are the leading stockists and suppliers of Drum Heaters & Jackets providing technical advice, quotations and fast worldwide delivery for both UK & export projects.

Contact Our Experts

Technical Specifications

rigid Drum Heating ENCLOSURE & base drum heater – & ISOPAD IDR-IBDR-CON – Technical Specifications

Part Number For Standard Sizes (L) Height (mm) Inner Diameter (ID) (mm) Outer Diameter (OD) (mm) Nominal Power (W) Nominal Voltage (Vac) Weight (kg)
IDR-IBDR-CON 230V 200 990 650 770 4900 230 ~ 1ph 60
IDR-IBDR-CON-400V 200 990 650 770 4900 400 ~ 3ph 60

thermocoax rigid Drum Heating ENCLOSURE & base drum heater – ISOPAD IDR-IBDR-CON – key features

IDR Drum Heater Enclosure IBDR Base Drum Heater
Area Classification Non-Hazardous Area
Ingress Protection IP52 IP65
Electrical Protection Class Class I
Ambient Temperature Range -25°C to +40°C -20°C to +80°C
Height 980 mm (including castors) 75 mm heating surface
Inner Diameter 650 mm N/A
Outer Diameter 770 mm 570 mm
Heater Type Resistance Heating Cable
Material Various Alloys
Thermal Insulation Material Glass Fibre Mineral Fibre
Insulation Thickness 50 mm
Outer Protection Sheet Steel
Paint Finish Matt Black Heat Resistant & Hammer Trimite Silver-Grey
Connection Lead Length 2 m 3 m
Thermostat Type TS-C TSW
Nominal Power 4000 W 900 W
Maximum Operating Temperature 300°C
Options Alternative controller ranges: 0°C to +43°C or +30°C to +110°C
Optional insulated lid to reduce heat loss

Key Benefits

✔ Complete drum heating system combining a rigid enclosure and base heater for full-surface, uniform heating of 200 L drums

✔ Faster heat-up times with simultaneous sidewall and base heating to improve process efficiency

✔ High thermal efficiency from rigid insulated construction, reducing heat loss and energy consumption

✔ Consistent, controlled temperatures to protect sensitive materials such as oils, resins, chemicals and fats

✔ Even heat distribution prevents hot spots and maintains product integrity

✔ Precise temperature control via integrated thermostats for reliable operation

✔ Robust, enclosed design engineered for demanding industrial environments and improved operator safety

✔ Available in 230 V and 400 V configurations to suit site power requirements

✔ Compatible with steel and plastic drums and suitable for viscosity reduction, frost protection and temperature maintenance

✔ Long service life with minimal maintenance requirements

Applications

✔ Viscosity reduction of oils, resins, adhesives and coatings to improve flow and handling

✔ Temperature maintenance of process fluids stored in 200 L drums

✔ Frost protection for drums in unheated warehouses and outdoor storage areas

✔ Pre-heating of chemicals prior to pumping, mixing or dosing operations

✔ Heating of fats, waxes and greases to maintain product consistency

✔ Process preparation for materials requiring controlled, uniform heating before use

✔ Drum heating in production and manufacturing environments to support continuous operations

✔ Storage heating to prevent solidification or phase separation of temperature-sensitive products

✔ Use in warehouses, process plants and industrial facilities where safe, enclosed drum heating is required
