Drum Heaters – Food Industry FDA Approved Drum Heating Jacket HSHP
Drum Heating Jacket, FDA Approved Drum Heater Jacket, Drum Heater Specialists
HSHP drum heaters are insulated heating jackets constructed with an outer layer of PFTE coated glass fabric that is recognised by EU and US standards in the food industry including FDA approval HSHP is available in 200 litre version with power outputs of 1200W and 1800W.
This range of FDA approved drum heating jacket is designed to be powerful, robust and thermally efficient and therefore provides high levels of performance and powerful heating capabilities for a wide range of industry applications.
HSHP drum heating jackets are designed for melting or reducing the viscosity of products that require aggressive heating or high temperatures for handling. HSHP is used to achieve product temperatures at multiple levels and up to 220ºC

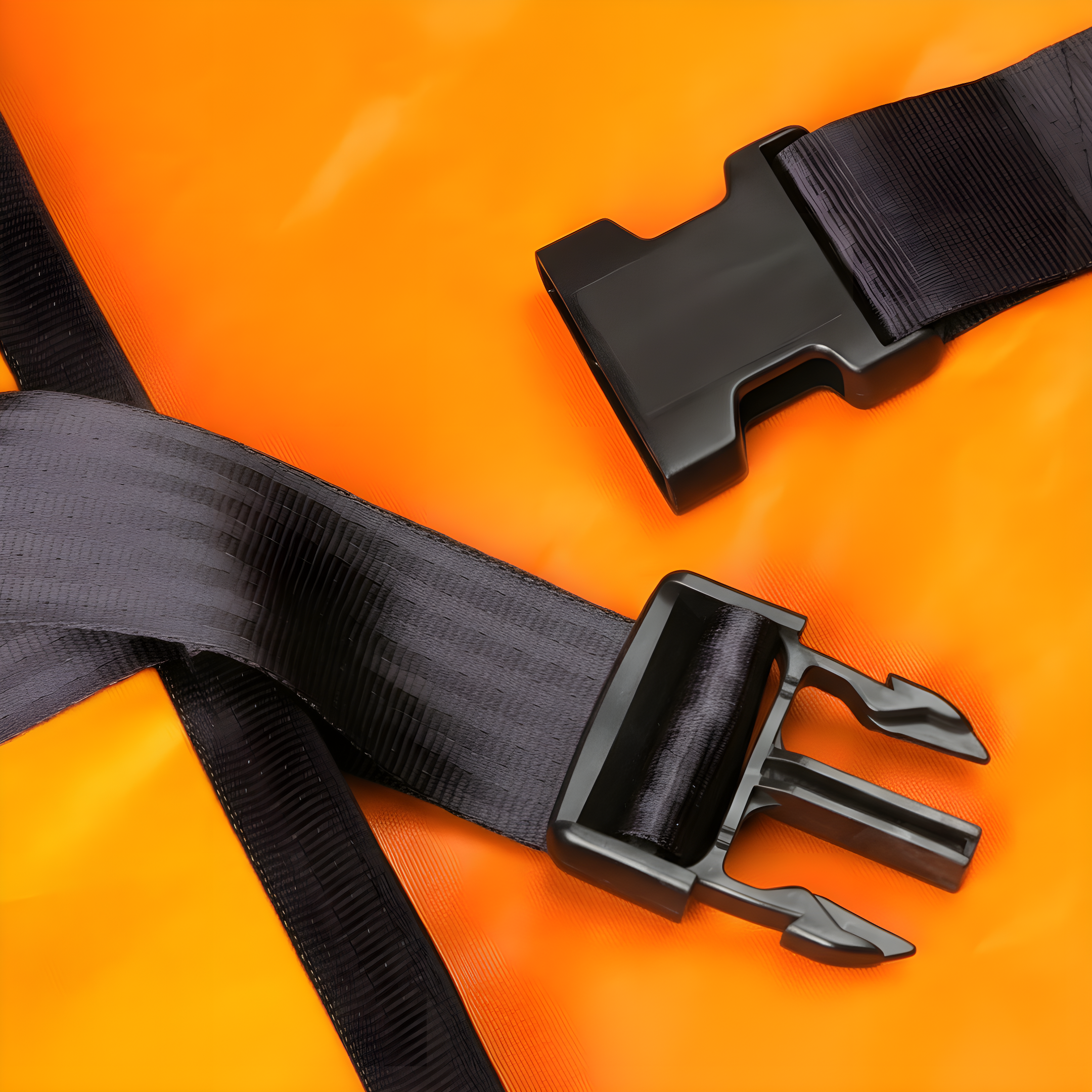

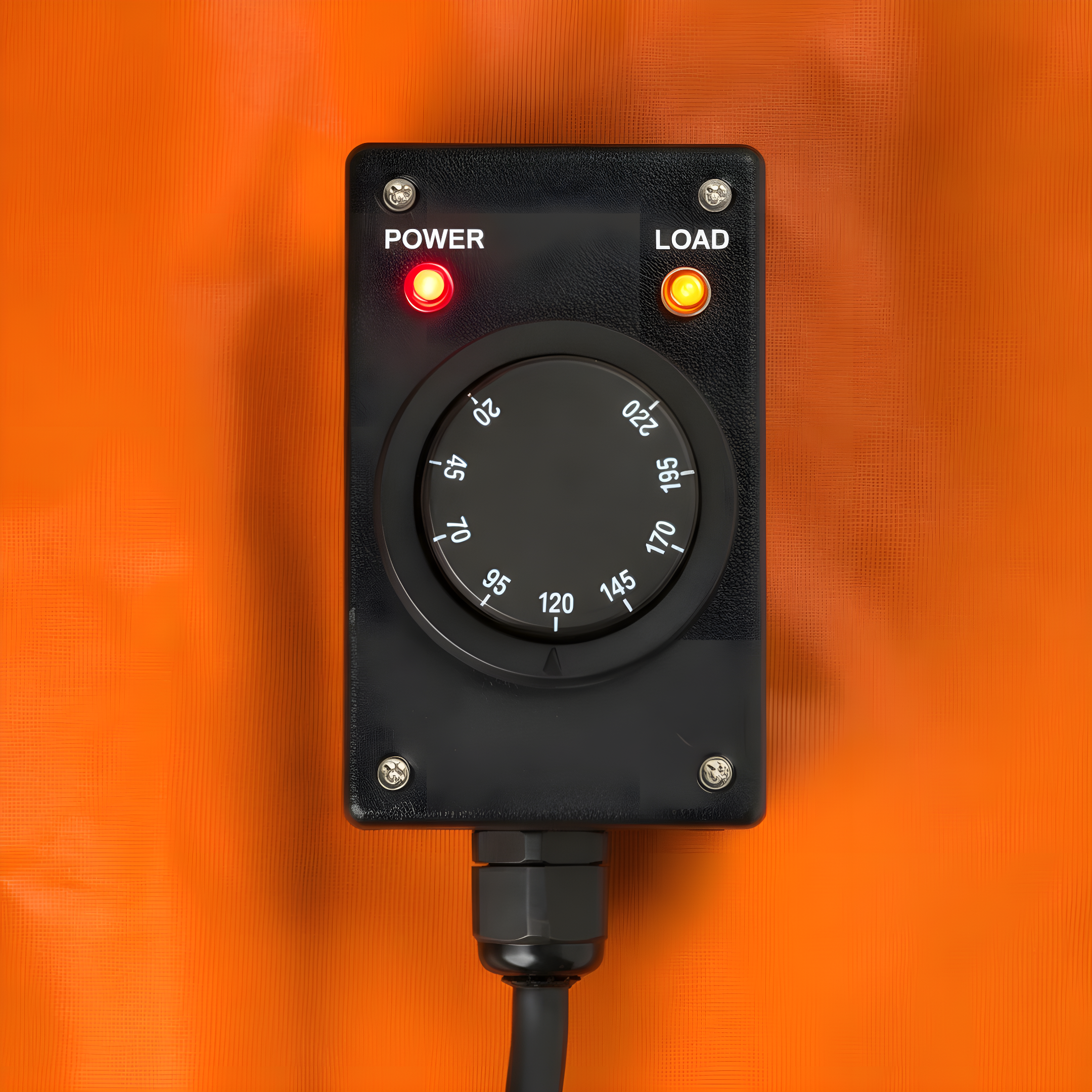

HSHP drum heating jacket is quick and simple to fit as it is supplied with quick-release buckles, 4 metres of robust rubber power cable and can be fitted with a range of adjustable thermostats (0-90°C, 0-120°C, 20-220°C)

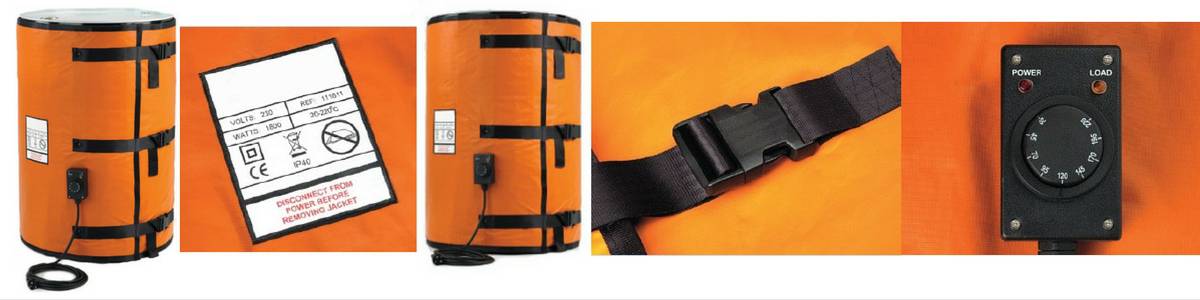

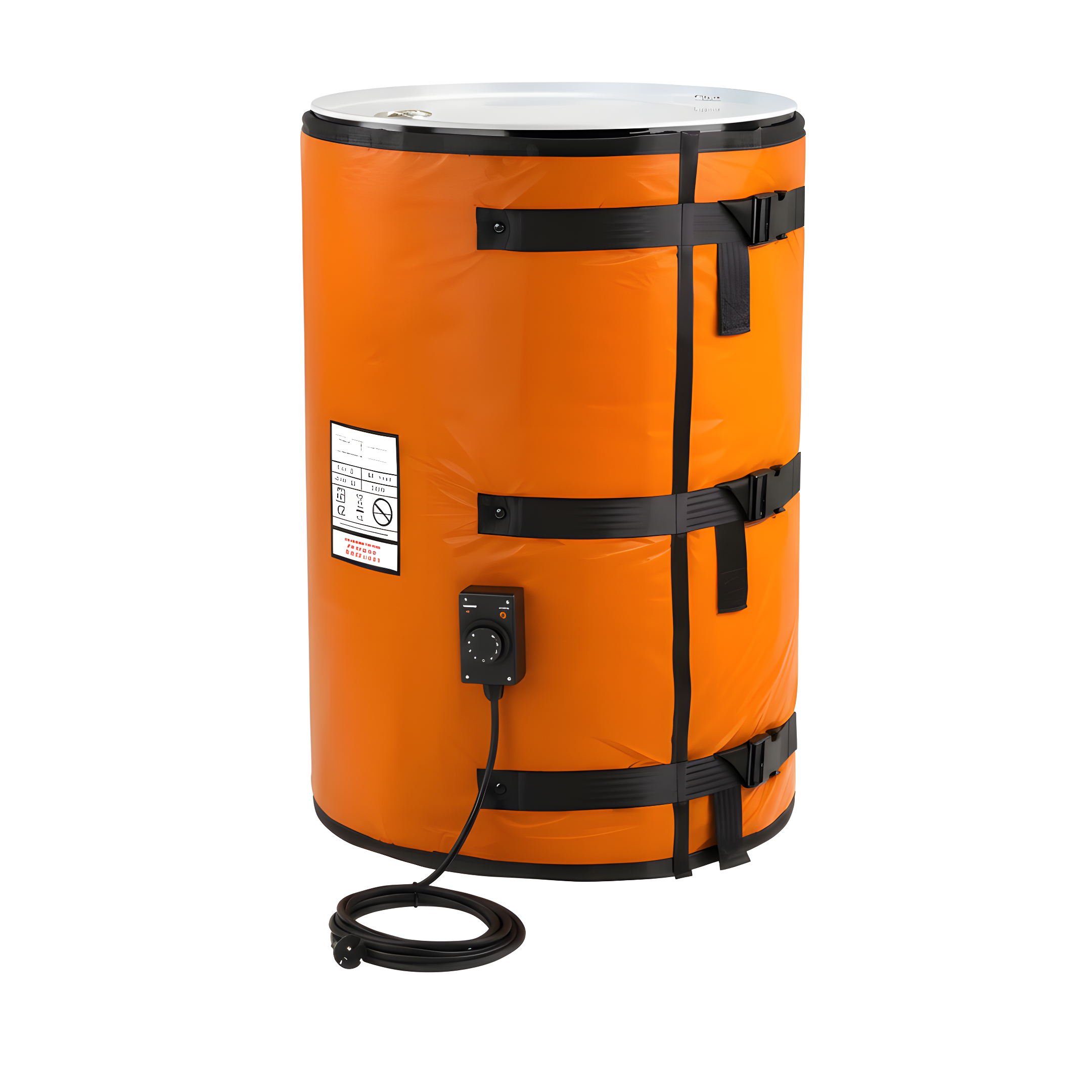

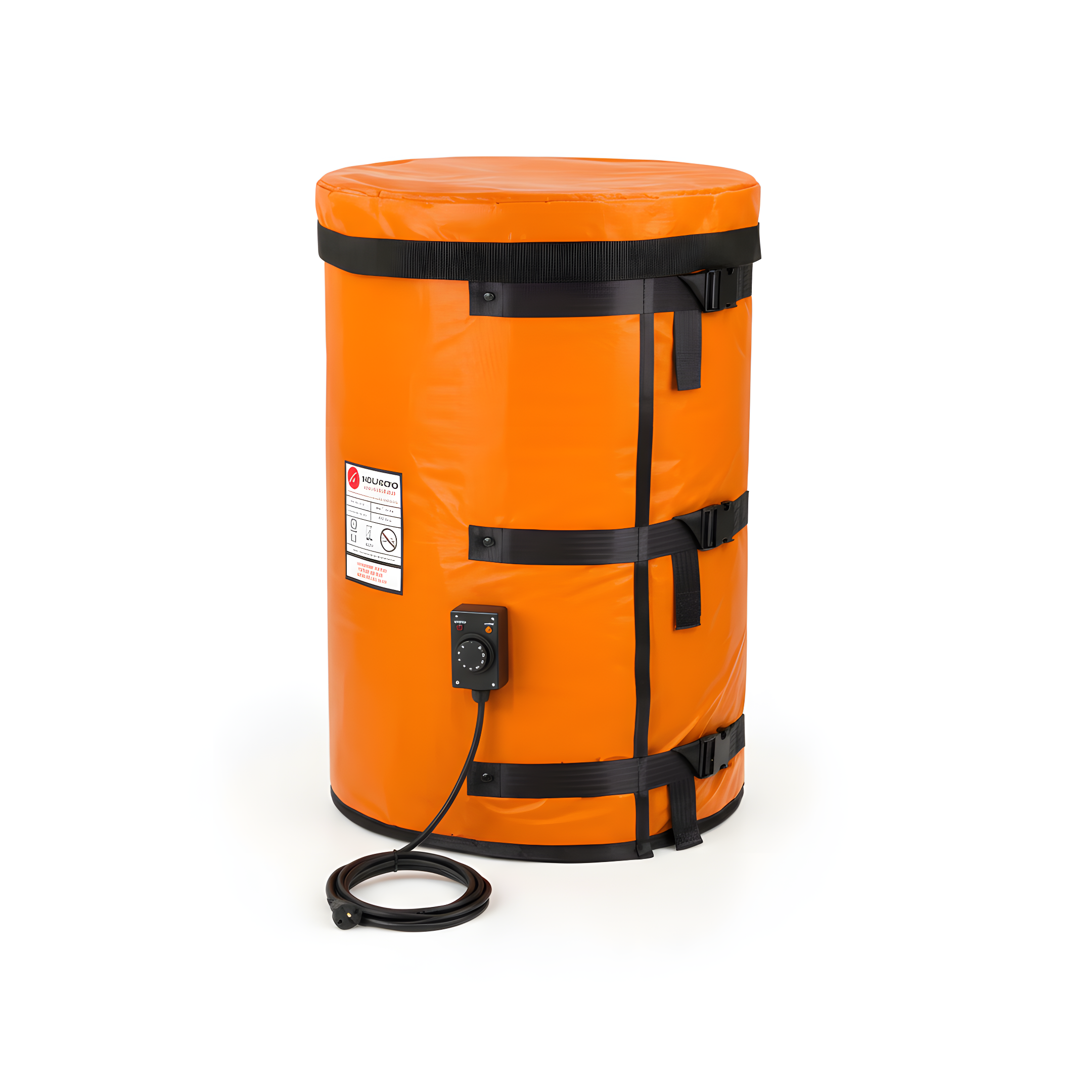

Drum Heater Jacket
Food Industry FDA Approved Drum Heating Jacket HSHP
| Part Number | Description | Dimensions | Heated Length | Rating & Power Output (W) |
| HSHP/E | 200 Litre Drum Heater Jacket | 850mm x 1950mm | 870mm | 110v or 230v 1200W 0-90 |
| HSHP/E | 2000 Litre Drum Heater Jacket | 850mm x 1950mm | 1100mm | 110v or 230v 1800W 20-220 |
HSHP Drum Heater Jacket Technical Specifications
| Supply Voltage | Thermostat Control | Insulation | Jacket Material | Power Cable | Heating Element | Fixing |
| 110V or 230V | 0-90°C, 0-120°C, 20-220°C Adjustable thermostat | E-glass fibre blanket | PTFE coated glass fibre cloth | 4 metre H07RN-F | Silicone insulated spiral wound resistance element | High temperature polyester webbing with quick release adjustable buckles |
Drum Heater – Food Industry FDA Approved Drum Heating Jacket HSHP Test Data
HSHP Drum Heater Design Features
Approvals
Commission Regulation: EU 10/211
US FDA regulation: 21 CFR 177 1550
HEATING DRUMs, ibc CONTAINERS & cylinders
Viscosity Simulation: Substances have different viscosities – the substance on the left has lower viscosity than the substance on the right.
Applications
Frost Protection
Reduce Viscosity
Temperature Maintenance
Low Temperature Heat Up 0-20° Celsius
Medium Temperature Heat Up 21-50° Celsius
High Temperature Heat Up 50° Celsius
Service PROMISE
Quotations same day, delivery 2-3 Days (Overnight & International options) from the UK’s leading distributor of Industrial & Hazardous Area Heating Equipment – ask about custom silicone heating pads and mats for surface heat distribution to complex shapes.
Hazardous Area Drum Heaters (ATEX Certified) For Heating Drums In Zone 1 & Zone 2 Locations.
Heating Drums: T&D stock drum heaters for industrial, non-hazardous and ATEX certified versions for potentially explosive atmospheres and hazardous area locations, Zone 1 & Zone 2.
➡ For further information about the complete range of Drum Heaters please browse the product sections below – for intermediate bulk container applications, visit IBC Heaters.
Drum Heater – Food Industry FDA Approved Drum Heating Jacket HSHP – Spec Sheet
Download
