Drum Heaters – Side Drum Heating Jacket HISD
Side Drum Heating Jacket HISD | Heatfast Drum Heaters
Product Code: Heatfast HISD/D & HISD/E
EXHEAT’s LFH-15 ATEX Temporary Fan Heater is designed to provide dependable heat in challenging Zone 1, Zone 2, Zone 21 and Zone 22 Hazardous Area environments. With a robust 15kW output and ATEX/IECEx certification, it delivers high-volume and efficient airflow for offshore modules, refineries, temporary habitats and industrial maintenance areas. Its ability to raise air temperature rapidly makes it especially effective for drying, curing, protecting equipment from cold conditions and maintaining safe working environments.
GO TO DOWNLOADSProduct Overview
The EXHEAT LFH-15 is one of the most powerful ATEX temporary fan heaters on the market, engineered for reliable performance in hazardous area Zone 1 and Zone 2 environments. Designed for demanding industrial applications, the LFH-15 delivers a stable 15kW heating output and class-leading efficiency, making it the ideal choice for temporary fan heating in oil & gas facilities, offshore platforms, refineries and industrial maintenance zones.
Unlike conventional temporary heaters, the EXHEAT LFH-15 ATEX Heater provides continuous, uninterrupted heat thanks to patented heating technology capable of raising air temperature by up to 38°C from inlet to outlet. This exceptional ΔT, combined with an airflow of up to 2,240 m³/hr, enables rapid and efficient heating of confined spaces, temporary enclosures, habitats and critical on-site work areas. Its robust stainless steel construction, anti-static castors, lifting handles and full ducting compatibility ensure simple deployment and long-lasting durability in the harshest operating conditions.
Contact our trusted experts – place an order or find out more about the EXHEAT LFH-15 for your operations. Thorne & Derrick International, based in the UK, are the leading stockists and suppliers of Electric & Process Heating & Heat Trace, providing technical advice, quotations and fast worldwide delivery for both UK & export projects.
Technical Specifications
Key Benefits
✔ Delivers a powerful and reliable 15kW heating output for hazardous area use
✔ Certified for Zone 1 & Zone 2 gas and Zone 21 & Zone 22 dust environments
✔ Achieves up to a 38°C temperature rise using patented heating technology
✔ Provides constant full-output heating for consistent temporary heat delivery
✔ High airflow (2,120–2,240 m³/hr) ensures fast and effective heat distribution
✔ Operates reliably in extreme ambient temperatures down to –40°C
✔ RTD monitoring protects the elements and maintains correct T-Class ratings
✔ Long flying lead available for flexibility and convenience
✔ Fully ductable on inlet and outlet for precise heat placement
✔ Stainless steel construction for long-term durability in harsh environments
✔ Anti-static castors and lifting handles allow easy on-site movement
✔ Local isolation switch provides straightforward, safe operation
✔ Compatible with 380–440V three-phase supply at 50/60Hz
✔ Optional power cables and plugs available on request
✔ Low-maintenance design ideal for demanding temporary heating tasks
Applications
✔ Aircraft servicing and aerospace maintenance environments
✔ Offshore containers, drilling rigs and production platforms
✔ Oil refineries, petrochemical plants and hazardous processing areas
✔ Comfort heating in controlled or temporary industrial spaces
✔ Curing and drying of paints, coatings and composite repairs
✔ Frost protection for sensitive equipment and work environments
✔ Paint stores, spray booths and controlled finishing rooms
✔ Pipe wrapping, composite repair works and habitat pressurisation
✔ Shipboard areas including deck houses, pump stations and engine rooms
✔ Temporary enclosures and maintenance habitats requiring safe heating
✔ Any Zone 1 & Zone 2 hazardous area requiring reliable temporary heat
Certifications
The LFH-15 is designed to meet stringent global safety requirements, with full ATEX, IECEx and CU TR (EAC) certification for use in explosive gas (IIB) and dust (IIIC) atmospheres. A bespoke low-temperature protection system allows operation down to –40°C, while an integrated RTD sensor monitors heating element temperature to maintain the assigned T-Class Rating and safeguard against overheating. With superior build quality, high thermal performance and proven safety, the EXHEAT LFH-15 stands out as the leading ATEX temporary fan heater for reliable, high-output heating in hazardous industrial environments.
Drum Heaters
DRUM HEATER JACKET
SIDE DRUM HEATING JACKET HISD

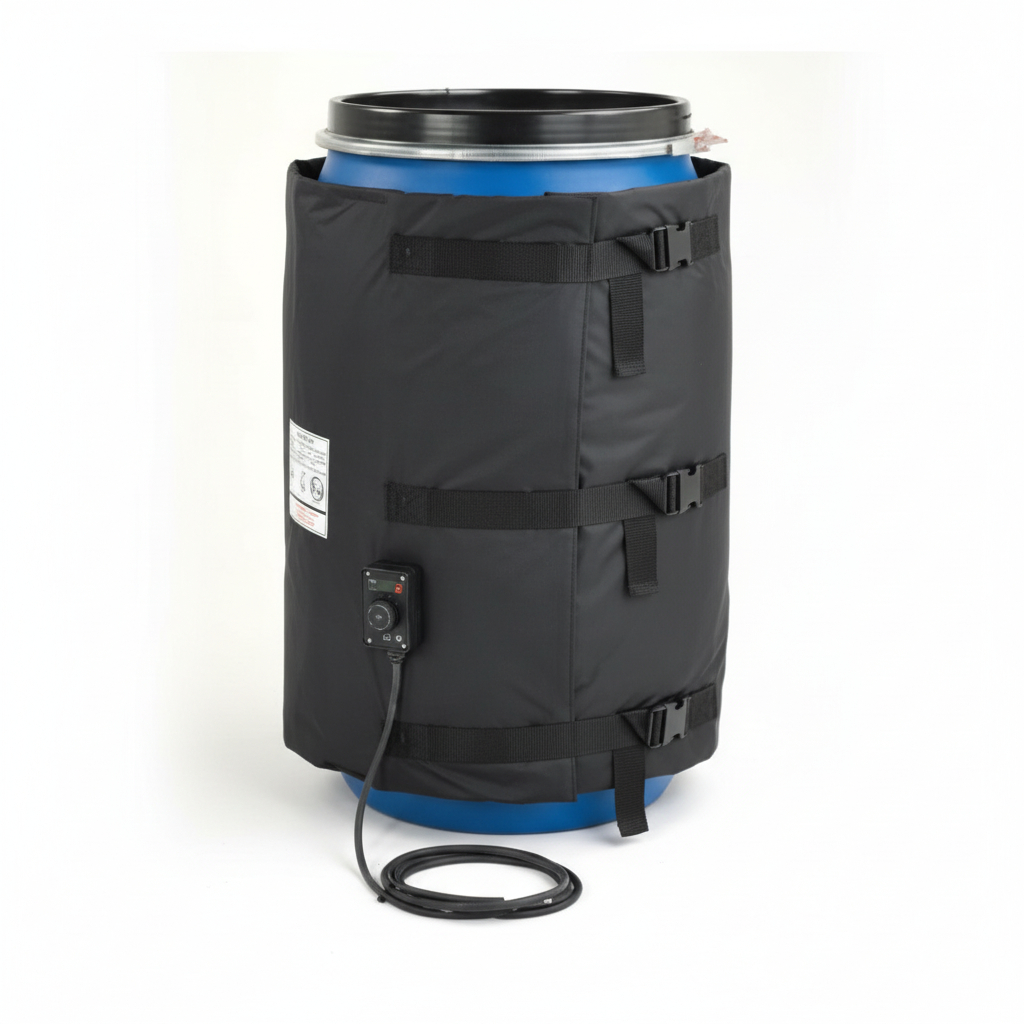

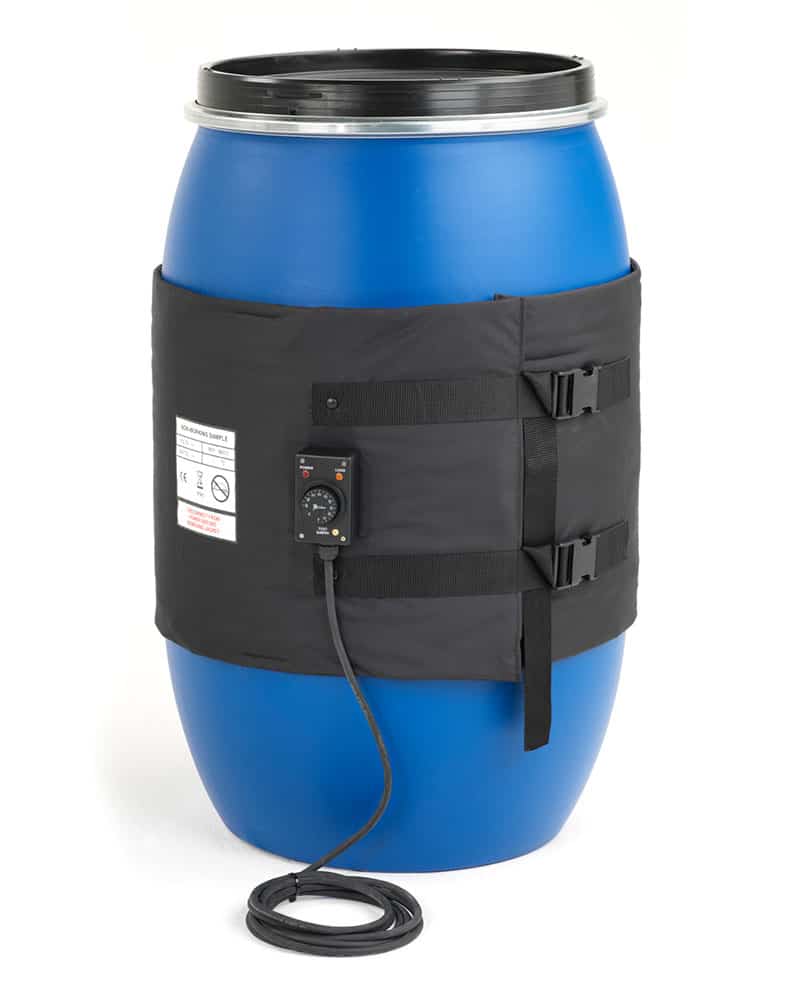

HISD drum heaters are insulated heating jackets manufactured from Teflon/polyester and are available in a range of sizes 25, 50, 105, 200 litre for both plastic and steel drums or containers with power outputs up to 1200W – designed to provide reliable electric surface heating to the sides of tighthead and open top drums.
This range of drum heater jackets are ideal for melting or reducing the viscosity of soaps, fats, varnishes and oil based products.

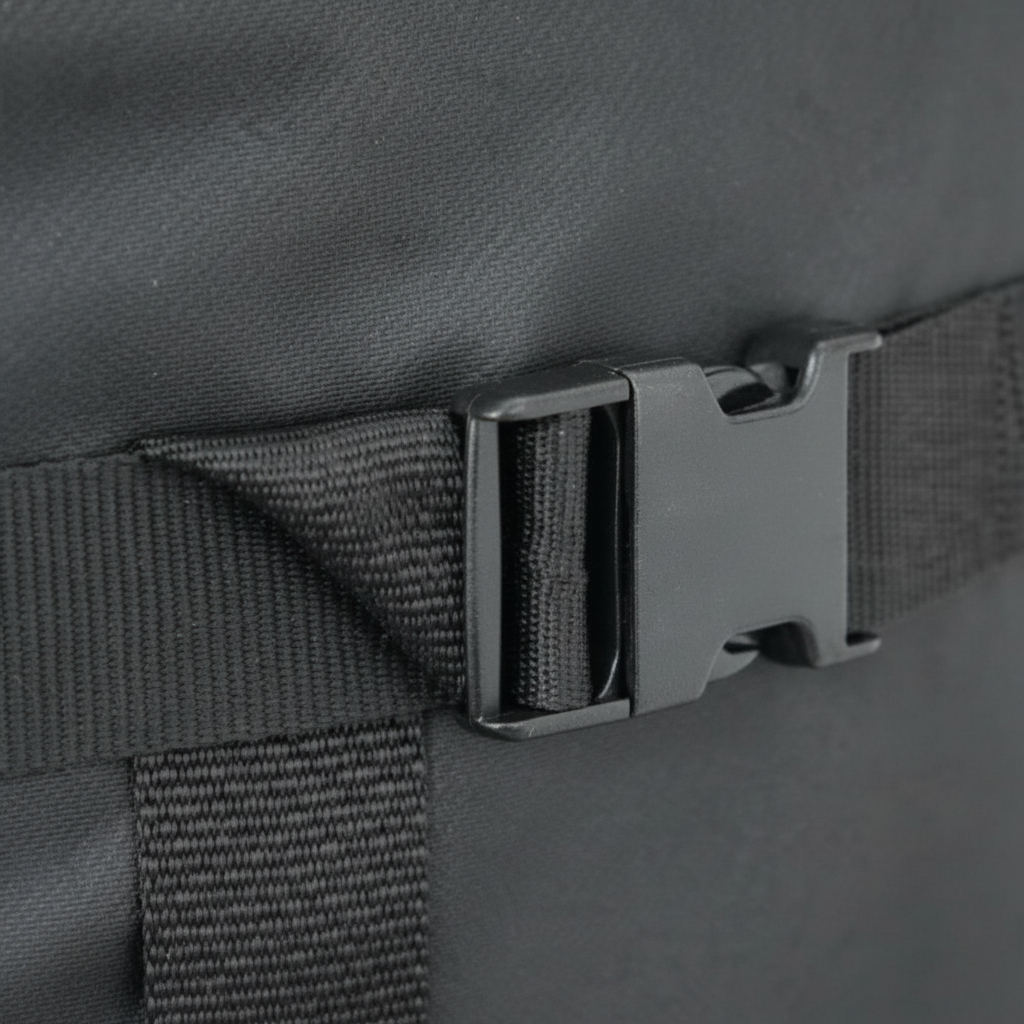

HISD drum heater jackets are fitted with either a 0-40ºC or 0-90ºC adjustable thermostat, a 4 metre power cable and adjustable quick release buckles to secure the jacket to a container.
If faster drum heating is required, the HISD drum heater can be used in conjunction with base drum heaters to significantly reduce heating time – HTSD drum heater is a higher power alternative to the HISD for heating metal drums.
When using HISD heater jackets it is recommended the power is not connected when installing the jacket on an empty drum or one being filled – the unit should only be operated in dry conditions and vented to avoid a build up of internal pressure.
| Product Code | Drum Size | Size (mm) | Power | Diameter* (mm) |
| HISD/A | 25L | 400 x 1020 | 200W | 277 to 315 |
| HISD/B | 50L | 400 x 1020 | 250W | 350 to 388 |
| HISD/C | 105L | 370 x 1650 | 400W | 470 to 515 |
| HISD/D | 200-210L | 450 x 1950 | 450W | 573 to 611 |
| HISD/E | 200-210L | 800 x 1950 | 1200W | 573 to 611 |
HISD Drum Heater Jacket Technical Specifications
| Supply Voltage | Thermostat Control | Insulation | Jacket Heated Face Material | Jacket Outer Face Material | Power Cable | Heating Element | Fixing |
| 110V or 230V | 0 to 40ºC or 0 to 90ºC | Glass filament blanket | Polyester base fabric, teflon coated | 1100 deitex texturised, nylon polyurethane coated | 4 metre H07RN-F | Silicone insulated spiral wound resistance element | Nylon webbing with quick release adjustable buckles |
Drum Heater – Side Drum Heating Jacket HISD/D Test Data
The drum heating element is stitched into an insulated jacket manufactured from a flame retardant polyester fabric and insulated with an e-glass fibre blanket, complete with quick release buckles for ease of installation and removal. The heating jacket is double insulated for safety and all HISD Side Drum Heaters are supplied with 4 metres of power cable and fitted with either a 0-+40°C or 0-+90°C capillary thermostat.
HEATING DRUMs, ibc CONTAINERS & cylinders
Viscosity Simulation: Substances have different viscosities – the substance on the left has lower viscosity than the substance on the right.
Applications

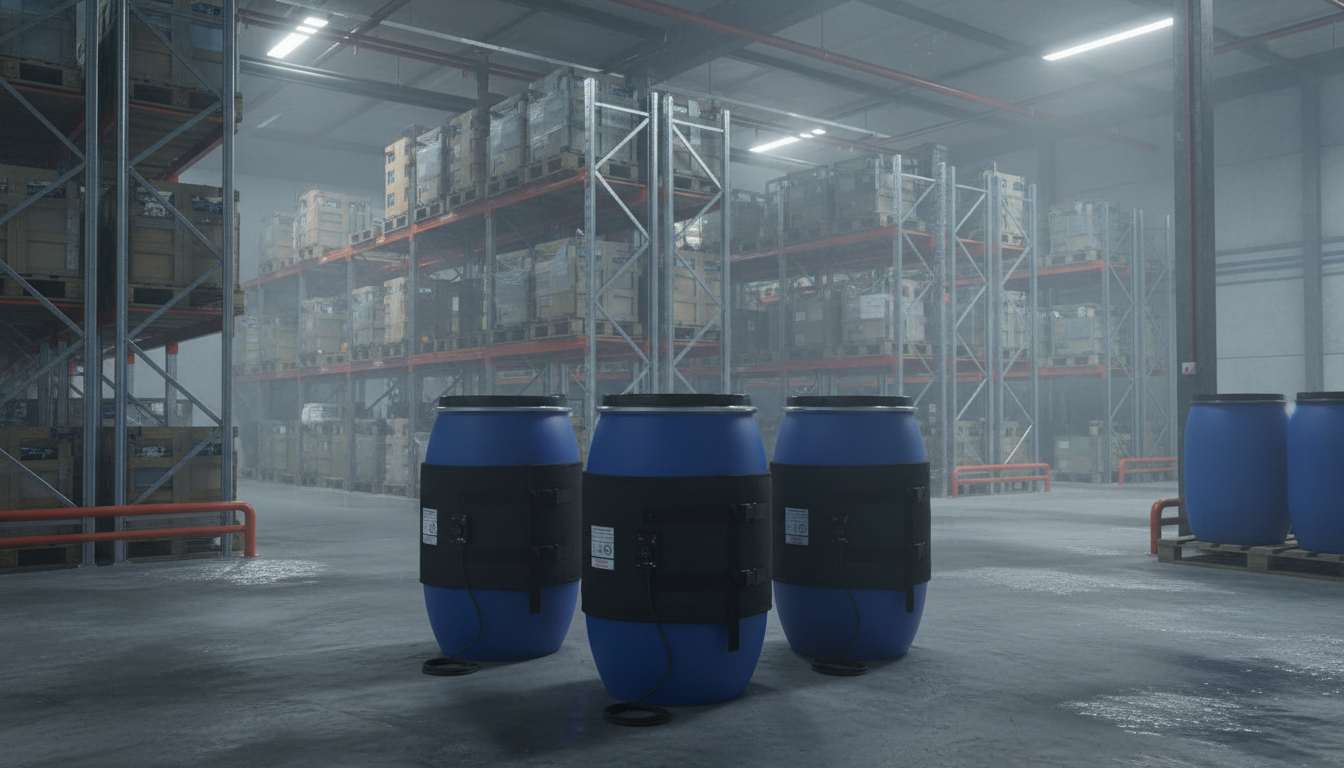

Frost Protection
Reduce Viscosity
Temperature Maintenance
Low Temperature Heat Up 0-20° Celsius
Medium Temperature Heat Up 21-50° Celsius
High Temperature Heat Up 50° Celsius
Service PROMISE
Quotations same day, delivery 2-3 Days (Overnight & International options) from the UK’s leading distributor of Industrial & Hazardous Area Heating Equipment – ask about custom silicone heating pads and mats for surface heat distribution to complex shapes.
Hazardous Area Drum Heaters (ATEX Certified) For Heating Drums In Zone 1 & Zone 2 Locations.
Heating Drums: T&D stock drum heaters for industrial, non-hazardous and ATEX certified versions for potentially explosive atmospheres and hazardous area locations, Zone 1 & Zone 2.
➡ For further information about the complete range of Drum Heaters please browse the product sections below – for intermediate bulk container applications, visit IBC Heaters.
Drum Heater – Side Drum Heating Jacket HISD – Spec Sheet
Download
