Raytec FL48C | Crane Floodlight Zone 1 & Zone 21 10,000 Lumens
Zone 1 Floodlights ATEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres
Hazardous Area Rating: Zone 1 – Gas & Dust
Zone 1 Gas
- II 2 G D
- Ex e mb op is IIC T4 Gb
- Ta= Up to -52°C to +55°C
T4 T5 T6 Temperature Ratings are available.
Zone 21 Dust
- Ex tb op is IIIC T82°C Db
- Ta= Up to -10°C to +55°C
- IP66/IP67
SPARTAN Flood range of Zone 1 floodlights form part of the ATEX Lighting range manufactured by Raytec and are designed for use on marine/offshore boom cranes where high performance, reliable, White-Light illumination is required for safe crane operations.
The FL48C floodlights are globally certified to Zone 1 offering long-life LED technology.
Highly resistant to vibration, a rotary damper also ensures the hazardous area lighting is always targeted where required and prevents the unit from swinging.
CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 10,000 delivered lumens. All SPARTAN lighting comes with an industry leading 5 year warranty as standard.

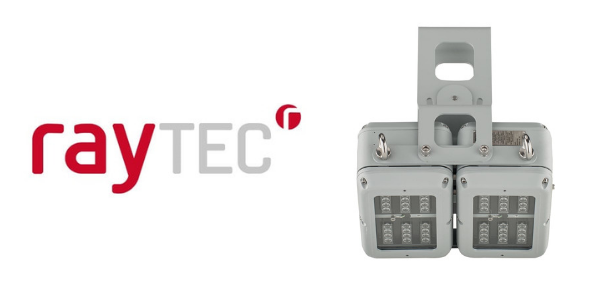

Raytec Spartan FL48C Zone 1 Crane Floodlights Hazardous Area 10,000 Lumens
Zone 1 Floodlights
Features & Benefits
ATEX Floodlights
- Raytec Part Number – SPX-FL48C-W
- ATEX & IEC Ex approved – Zone 1
- UL/CSA approved including C1D2 and ABS
- Ultra Long Life LED Lighting
- High Lumen Output LED Lighting
- Rotary Damper – ensures light stays targeted where required
- Wide Operating Temp -10° to +55°
- 2 Anchor Points for Safety Cord
- Zone 2 Floodlights Available
- 5 Year Warranty
- UK Designed and Manufactured

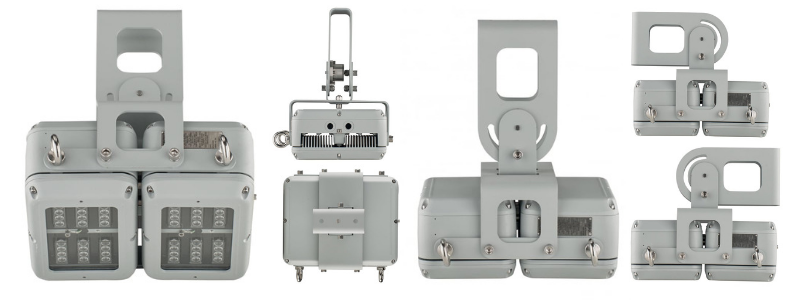

Raytec Spartan ATEX Crane Floodlights
Zone 1 Floodlights – Product Dimensions
Raytec SPARTAN FloodLight
Technical Specification
| Certification: | ATEX and IEC Ex rated for Zone 1 and 2 Gas and Dust, and UL/CSA inc. C1D2 |
| Angles: | 10×10°/ 35×10°/ 60×25°/ 80×30°/ 120×50° elliptical and 30°, 50° and 120° circular options |
| Input: | Mains Voltage 110-254V 50/60 Hz AC only Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC |
| Beam Shape: | Elliptical or Circular |
| Beam Angle System: | VARIO interchangeable lens system (elliptical) / Fixed (circular) |
| Consumption: | 136W |
| LED Type: | Platinum Elite SMT LEDs |
| Number of LEDs: | 48 |
| Power Output: | Up to 10,000lm |
| Wavelength: | White-Light (6,000K+) |
| IP Rating: | IP66 and IP67 |
| Temperature Range: | -10°C to +55°C |
Zone 1 Floodlight Product Codes
| SPARTAN Zone 1/21 Flood Crane FL48C | |
| Circular Beam Pattern | |
| SPX-FL48C-W-1010 | SPARTAN Flood Crane 48 LED, Zone 1/21, White-Light 10°x10° beam |
ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
