Deeter DE34-90A Float Switch – Polypropylene 90W Form A

Level Sensors - Deeter 20 Series 30 Series 40 Series

Float Switches & Liquid Level Sensors

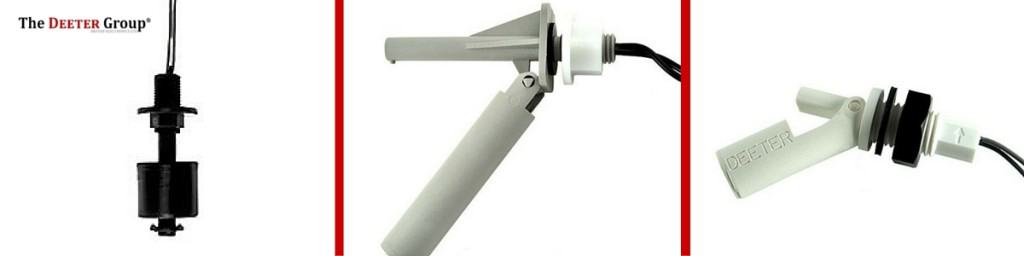

Deeter DE34-90A FLOAT SWITCH

    • Self cleaning hinge mechanism
    • High Power Switching
    • Suitable for harsh environments
    • Good chemical resistance
    • Wide operating temperature range.
    • Change switch operation from normally open (N/O) to normally close (N/C) by rotating the switch so the float is above the centre line.
    • The weight of the sensor is approximately 48g.
    • A 1 meter PVC cable is provided as standard, for custom cable lengths, contact sales office
Deeter DE34-90A Float Switch & Liquid Level Sensor

Deeter DE34-90A Float Switch & Liquid Level Sensor

Technical SPECIFICATION
Technical Data Nylon Polypropylene
Suitable specific gravity 0.7 0.7
Maximum Pressure 400KPa 400KPa
Operating Temperature 20degC~80degC -20 degC ~ 100 deg C
PVC Cable Length 1000mm 1000mm
Fixing Hole Size Torque Wall thickness (Max.)*
M12 Internal 12.5mm (Deburred) 6.8Nm 10mm

*For Chemical resistance data contact the sales office. Higher switch ratings are available.

➡ Deeter hazardous area float switches, liquid level sensors and load cells with ATEX & IECEx certification are used for Ex d Explosion Proof requirements.

Hazardous Area Level Sensors & Float Switches

Level Sensors & Float Switches : ATEX IECEx & CSA Certified flameproof and explosion proof equipment is available for hazardous area applications. Image : ENPPI.
