Deeter DE42-10C04 Float Switch – White PVC Form C 4W 1/2″ NPT

Level Sensors - Deeter 20 Series 30 Series 40 Series

Float Switches & Liquid Level Sensors

Deeter DE42-10C04 FLOAT SWITCH

  • Horizontally mounted miniature liquid level sensors designed for external or internal tank mounting.
  • The design provides a cost effective solution where high reliability in a demanding environment is called for.
  • Available in UL/WRC listed PVC,Polypropylene,PPS and Nylon materials to permit use in most chemical and temperature environments.
  • By rotating the body through 180°it is possible to sense for high or low conditions.
  • Coupled with a choice of switching options this design is ideal for food,automotive,petroleum,chemical and laboratory applications

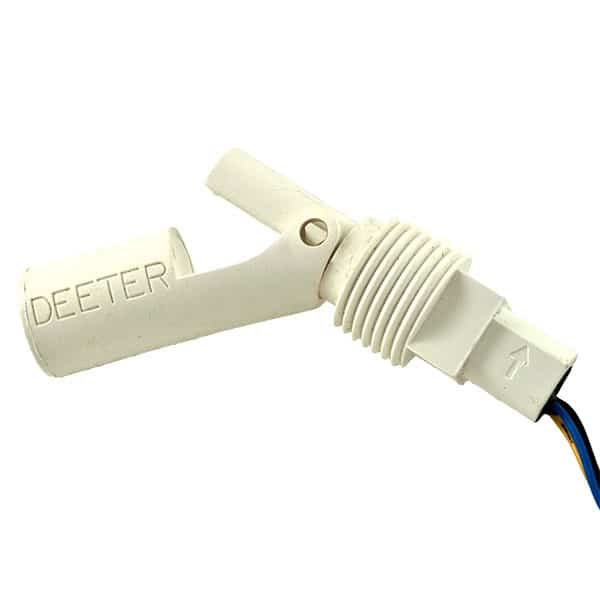

Deeter DE42-10C04 Float Switch & Liquid Level Sensor

Deeter DE42-10C04 Float Switch & Liquid Level Sensor

Deeter DE42-10C04 Technical SPECIFICATION
Technical Data White PVC Black Nylon Grey Polypropylene PPS
Suitable specific gravity 0.8 0.7 0.7 0.9
Maximum Pressure 200 KPa 200 KPa 200 KPa 200 KPa
Operating Temperature -20 to +65°C -20 to +80°C -20 to +80°C -30 to +125°C
PVC Cable length* 1 metre 1 metre 1 metre 1 metre
Weight 35 g 35g 35g 35g

*Other lengths available to order

Switch Contact Ratings
  • Form A switches are rated at 240v AC/DC, 1.0 Amp resistive load only
  • Form C switches are rated at 60v DC, 0.25 Amp resistive load only
  • For other loads i.e. capacitive, inductive or incandescent lamps please contact Deeter for advice
  • For AC circuits ensure the peak voltage x current does not exceed the power rating
  • All PPS switches have 7/0.2 PTFE insulated wires
  • PVC, Nylon and PP form A switches have 16/0.2 PVC insulated wires
  • PVC, Nylon and PP form C switches have 7/0.2 PTFE insulated wires
Fixing Hole Size Torque Wall Thickness
M16 external mount 23mm 2.7Nm 6mm max
M16 internal mount 16.5mm 6.8Nm 10mm max
Internal 3/8” NPT To suit 6.8Nm 16mm max
External 1/2” NPT To suit 6.8Nm 12mm max

Deeter DE42-10C04 is designed for external or internal tank mounting. The design provides a cost effective solution where high reliability in a demanding environment is called for. Available in UL/WRC listed PVC, Polypropylene, PPS, Nylon and ABS materials to permit use in most chemical and temperature environment.
