Deeter DE52-10C04 Float Switch – White PVC 10W Form C 1/2″ NPT

Level Sensors - Deeter 50 Series 60 Series 70 Series

Float Switches & Liquid Level Sensors

Deeter DE52-10C04 FLOAT SWITCH

  • Vertically mounted miniature liquid level sensors designed for internal tank mounting
  • The design provides a cost effective solution where high reliability in a demanding environment is called for
  • Available in UL/WRC listed PVC, Polypropylene, PPS and Nylon materials to permit use in most chemical and temperature environments
  • Coupled with a choice of switching options this design is ideal for food, automotive, petroleum, chemical and laboratory applications

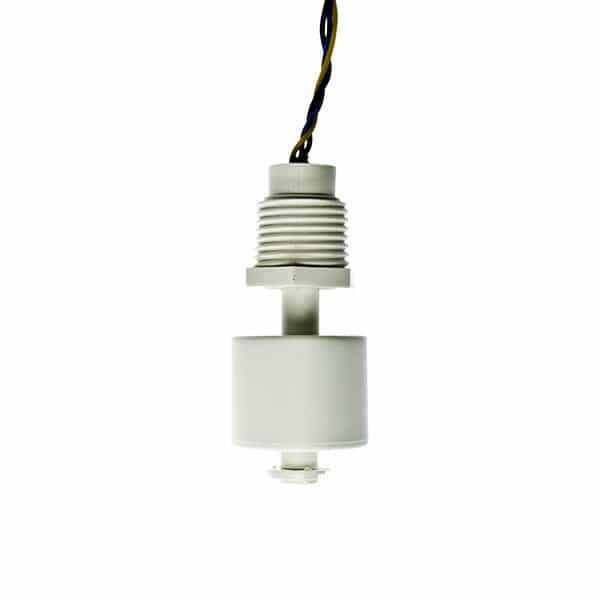

Deeter DE52-10C04 Float Switch & Liquid Level Sensor

Deeter DE52-10C04 Float Switch & Liquid Level Sensor

Deeter DE52-10C04 Technical SPECIFICATION
Technical Data White PVC Black Nylon Grey Polypropylene PPS
Suitable specific gravity 0.8 0.7 0.7 0.9
Maximum Pressure 200 KPa 200 KPa 200 KPa 200 KPa
Operating Temperature -20 to +65°C -20 to +80°C -20 to +80°C -30 to +125°C
PVC Cable length* 1 metre 1 metre 1 metre 1 metre
Weight 35 g 35g 35g 35g

*Other lengths available to order

Deeter DE52-10C04 Features
  • Vertically mounted miniature liquid level sensors designed for internal tank mounting.
  • The design provides a cost effective solution where high reliability in a demanding environment is called for.
  • Available in UL/WRC listed PVC, Polypropylene, PPS and Nylon materials to permit use in most chemical and temperature environments.
  • Coupled with a choice of switching options this design is ideal for food, automotive, petroleum, chemical and laboratory applications
Float Switches & Level Sensors

Deeter electronic sensors, switches and control and instrumentation systems are specified across all industries.

➡ Deeter hazardous area float switches, liquid level sensors and load cells with ATEX & IECEx certification are used for Ex d Explosion Proof requirements.

Hazardous Area Level Sensors & Float Switches

Level Sensors & Float Switches : ATEX IECEx & CSA Certified flameproof and explosion proof equipment is available for hazardous area applications. Image : ENPPI.
