Drum Heaters – Side Drum Heating Jacket HISD

Drum Heaters – Insulated Jackets

Drum Heater Jackets, Drum Heating Specialists, Heating Drums, Side Drum Heating Jackets

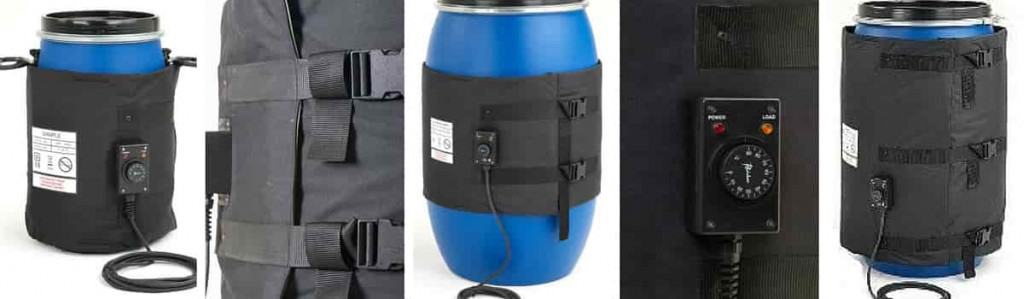

HISD drum heaters are insulated heating jackets manufactured from Teflon/polyester and are available in a range of sizes 25, 50, 105, 200 litre for both plastic and steel drums or containers with power outputs up to 1200W – designed to provide reliable electric surface heating to the sides of tighthead and open top drums.

This range of drum heater jackets are ideal for melting or reducing the viscosity of soaps, fats, varnishes and oil based products.

HISD drum heater jackets are fitted with either a 0-40ºC or 0-90ºC adjustable thermostat, a 4 metre power cable and adjustable quick release buckles to secure the jacket to a container.

If faster drum heating is required, the HISD drum heater can be used in conjunction with base drum heaters to significantly reduce heating time – HTSD drum heater is a higher power alternative to the HISD for heating metal drums.

When using HISD heater jackets it is recommended the power is not connected when installing the jacket on an empty drum or one being filled – the unit should only be operated in dry conditions and vented to avoid a build up of internal pressure.

Drum Heater Jacket

Side Drum Heating Jacket HISD

Part NumberDescriptionDimensionsHeated LengthPower Output (W)
HISD/A25 Litre Drum Heater Jacket400mm x 1020mm870mm200W
HISD/B50 Litre Drum Heater Jacket460mm x 1250mm1100mm250W
HISD/C105 Litre Drum Heater Jacket370mm x 1650mm1500mm400W
HISD/D200 Litre Drum Heater Jacket450mm x 1950mm1800mm450W
HISD/E200 Litre Drum Heater Jacket800mm x 1950mm1800mm1200W

HISD Drum Heater Jacket Technical Specifications

Supply VoltageThermostat ControlInsulationJacket Heated Face MaterialJacket Outer Face MaterialPower CableHeating ElementFixing
110V or 230V0 to 40ºC or 0 to 90ºCGlass filament blanketPolyester base fabric, teflon coated1100 deitex texturised, nylon polyurethane coated4 metre H07RN-FSilicone insulated spiral wound resistance elementNylon webbing with quick release adjustable buckles
Drum Heater - Side Drum Heating Jacket HISD/D Test Data

Drum Heater – Side Drum Heating Jacket HISD/D Test Data



Drum Heater – Side Drum Heating Jacket HISD

HISD Drum Heater Design Features

The drum heating element is stitched into an insulated jacket manufactured from a flame retardant polyester fabric and insulated with an e-glass fibre blanket, complete with quick release buckles for ease of installation and removal. The heating jacket is double insulated for safety and all HISD Side Drum Heaters are supplied with 4 metres of power cable and fitted with either a 0-+40°C or 0-+90°C capillary thermostat.

Drum Heater Jackets



HEATING DRUMs, ibc CONTAINERS & cylinders
Drum Heating - Viscosity

Viscosity Simulation: Substances have different viscosities – the substance on the left has lower viscosity than the substance on the right.

Applications

Frost Protection
Reduce Viscosity
Temperature Maintenance
Low Temperature Heat Up 0-20° Celsius
Medium Temperature Heat Up 21-50° Celsius
High Temperature Heat Up 50° Celsius

Service PROMISE

Quotations same day, delivery 2-3 Days (Overnight & International options) from the UK’s leading distributor of Industrial & Hazardous Area Heating Equipment – ask about custom silicone heating pads and mats for surface heat distribution to complex shapes.

Drum Heating Specialists

Hazardous Area Drum Heaters (ATEX Certified) For Heating Drums In Zone 1 & Zone 2 Locations.

dRUM hEATING JACKETS

Watch our video to understand more about the features and design of our HISD Drum Heaters.

Drum Heaters Industries

Heating Drums: T&D stock drum heaters for industrial, non-hazardous and ATEX certified versions for potentially explosive atmospheres and hazardous area locations, Zone 1 & Zone 2.

➡ For further information about the complete range of Drum Heaters please browse the product sections below – for intermediate bulk container applications, visit IBC Heaters.
