Fisher easy-e ES Universal Globe Valves – Sliding Stem Valves

Fisher easy-e ES Universal Globe Valves are part of the sliding stem valve range that have unbalanced plugs and cage-guided trim for all general applications with process temperatures up to 566°C (1050°F).

The easy-e ES valves are available in sizes ranging from NPS ½ to 8 and pressure ratings up to CL600, with several body configurations, including ES and EAS:

ES: Globe body sliding-stem valve with push-down-to-close action
EAS: Angle body sliding-stem valve with push-down-to-close action

In both designs the Fisher easy-e ES has metal-to-metal seating as a standard for all general applications over a wide range of pressure drops and temperatures.

Fisher easy-e ES Universal Globe Valve

Product Features

Compliance with the Clean Air Act—ENVIRO-SEAL™ packing systems provide an improved stem seal to help prevent the loss of process fluid. The ENVIRO-SEAL packing systems feature PTFE, Graphite ULF, or Duplex packing with live loading for reduced packing maintenance
Valve Plug Stability— Rugged cage guiding provides high valve plug stability, which reduces vibration and mechanical noise
More Flow Capacity for Initial Investment— Streamlined flow passages provide excellent capacities and flow
Compliance with European Standards— Valves are available with dimensions specified by EN/DIN standards
Sour Service Capability—Materials are available to meet NACE standards
Operating Economy—Increased wear resistance provided by standard, hardened stainless steel trim means long service life
Maintenance Economy— Trim inventory costs are cut because dimensional standardization permits use of most standard easy-e trim parts. During removal of trim parts, the valve body can remain in the pipeline

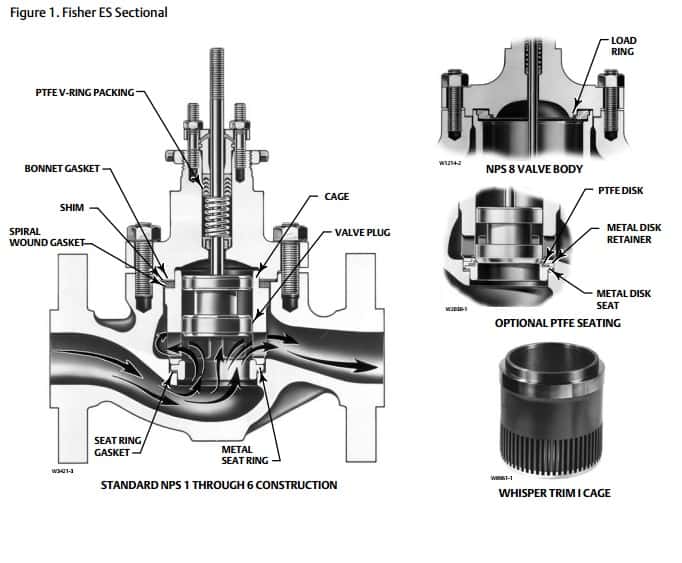

Fisher easy-e ES Universal Globe Valves – Valve Detail

FISHER easy-e ES UNIVERSAL GLOBE VALVE

PRODUCT Specification

Valve Sizes	ES 1/2 or 3/4 1, 1-1/2, or 2 1-1/4 2-1/2, 3, 4, 6, or 8 ; EAS 1 or 2 3, 4, or 6
End Connection Styles(1)(2)	Cast Iron Valves Flanged: ES, NPS 1 through 8, including NPS 1-1/2 and 2-1/2 (except NPS 1-1/4), CL125 flat-face or CL250 raised-face flanges per ASME B16.1 Steel and Stainless Steel Valves Flanged: CL150, 300, or 600 raised-face (RF) or ring-type joint (RTJ) flanges per ASME B16.5, Raised-face (RF) flanges per EN1092-1/B Screwed or Socket Welding: NPS 1/2 through 2, consistent with ASME B16.11 Buttwelding: NPS 1 through 8 (except NPS 1-1/4). Schedules 40 or 80 consistent with ASME B16.25
Maximum Inlet Pressure and Temperature(1)(2)	Cast Iron Valves Flanged: Consistent with CL125B or 250B per ASME B16.1 Steel and Stainless Steel Valves Flanged: Consistent with CL150, 300, and 600(3) per ASME B16.34 Screwed or Welding: Consistent with flanged CL600(3) per ASME B16.34
Shutoff Classifications per ANSI/FCI 70-2 and IEC 60534-4	Metal Seating: Class IV is standard. Class V is optional PTFE Composition Seating: Class VI
Construction Materials	Body, Bonnet, and Bonnet Spacer or Bottom Flange, if used: WCC carbon steel, CF8M stainless steel, LCC carbon steel, WC9 chrome moly steel; Cast iron body with steel bonnet construction Other material constructions upon request
Flow Characteristics	Standard Cages: Quick-opening, linear, or equal percentage Whisper Trim: Linear
Flow Direction	ES Standard Cage: Normally up Whisper Trim Cages: Always up EAS Standard Cage: Without liner, flow up or down; with liner, normally down Whisper Trim Cages: Always up
Options	Lubricator, lubricator/isolating valve, drilled and tapped connection in extension bonnet for leakoff service, body drain plug, style 3 fabricated extension bonnet made on order to a specific length for cryogenic service, and Whisper Trim III cage

1. EN (or other) ratings and end connections can usually be supplied. 2. The pressure/temperature limits in this bulletin, and any applicable standard limitations should not be exceeded. 3. Certain bonnet bolting material selections may require a CL600 easy-e valve assembly to be derated. Contact your Emerson Process Management sales office for more information
