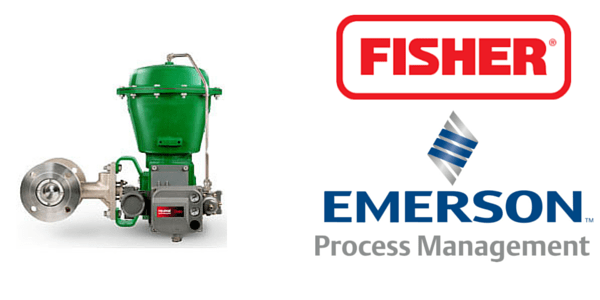

Fisher V500 Eccentric Plug Valve – Rotary Valves

Fisher V500 Valve is a flanged or flangeless eccentric plug valve with reversible metal seat ring or ceramic seat ring and splined shaft. The Fisher V500 eccentric plug rotary control valve controls erosive, coking, and other hard-to-handle fluids, providing either throttling or on/off operation.

The V500 is available in NPS 1 through 8 (flangeless available only in NPS 3 through 8), CL150/300/600 (PN 10/100) (NPS 3 through 8), CL300 (PN25/40). This valve is for use in heavy slurry or corrosive applications.

Together with a Fisher power or manual actuator, the V500 valve has the ability to dependably controls fluids in many process industries

Fisher V500 Eccentric Plug Valve – Product Features

• Resists Damage from Erosive Flow – valve assembly is specifically designed to combat the process of erosion. Streamlined flow passages, rugged components, and a wide choice of erosion-resistant trim materials all promote long, dependable service life in erosive applications
• Long Seat Life – path of eccentric plug minimizes contact with seat ring when opening, reducing seat wear and friction. When the valve plug rotates into the seat ring, a self-lapping action occurs, improving the fit between shut-off surfaces. Full-port, 316 SST, Alloy 6, or ceramic seat ring has two shutoff surfaces and can be easily reversed, reducing downtime
• Operational Versatility– patented self-centering seat ring and rugged plug allow forward or reverse flow with tight shutoff in either flow direction. Reverse flow direction helps move downstream turbulence away from shutoff surfaces. Full 90-degree rotation removes valve plug from flowstream, helping to reduce plug wear. Seat ring and retainer are available in full and restricted port constructions, and can easily be changed if capacity requirements change
• Easy Installation – integral valve body flanges mate with many different classes of pipeline flanges, satisfying a variety of piping requirements. Flanges help to eliminate exposed line flange bolting, shorten alignment and installation time, and promote secure valve installations and piping integrity. Flangeless valves are automatically self-centering on line bolting for easy installation
• Simple Assembly and Maintenance – no special orientation, precision clamping or repetitive centering of valve plug and seat ring is required when tightening the retainer, promoting accurate alignment and easy assembly
• Improved Environmental Capabilities – optional ENVIRO-SEAL packing systems are designed with very smooth shaft surfaces and live loading to provide improved sealing. The seal of the ENVIRO-SEAL system can restrict emissions to less than the EPA (Environmental Protection Agency) limit of 100 ppm (parts per million)
• Sour Service Capability – trim and bolting materials are available for applications handling sour service. These materials comply with the requirements of NACE MR0175-2002
• Rugged Construction – durable, solid metal or ceramic seat ring and valve plug shut off tightly without deforming plug arms or employing thin ball seals. Oversized shaft diameters and rugged trim parts allow high pressure drops
• Reliable Performance – patented seat ring design self-centers, self-laps, and dynamically aligns with V-notch ball, giving superior cycle life. Optional sealed metal bearings help prevent particle buildup and valve shaft seizure in severe applications
• Choice of Construction Materials – plug, seat ring, and retainer are available in four levels of hardness for selection of erosion resistance

FISHER V500 ECCENTRIC PLUG VALVE

PRODUCT Specification

Available Valve Configurations	Flanged valve assembly (NPS 3 through 8 only) with reversible(1) metal or VTC (ceramic) seat ring and splined valve shaft
Valve Body Sizes	NPS 1, 1-1/2, 2, 3, 4, 6, and 8 DN
End Connection Style	Raised-face flanges or ring-type joint flanges (ASME B16.5). Valves with EN PN10 through PN100 flanges also available. (S
Maximum Inlet Pressure(2)	Consistent with applicable ASME or EN flange ratings
Shutoff Classification	Class IV per ANSI/FCI 70-2 and IEC 60534-4, (0.01% of valve capacity at full travel) for either flow direction. Leak rates for full and restricted port valves are based on full port valve capacities. Reduced port valves seat at the full port diameter
Flow Characteristic	Modified linear
Flow Direction	Reverse flow (standard): Past valve plug and through seat ring; tends to close the valve; recommended for erosive service Forward flow: Through seat ring and past valve plug; tends to open the valve
Flow Coefficient Ratio(3)	200 to 1
Actuator Mounting	Right-hand or left-hand as viewed from the upstream side of the valve. Mounting position depends on the desired open valve plug position and flow direction required by operating conditions. For more information, see the Installation section.
Valve Plug Rotation	Counterclockwise to close (when viewed from actuator side of valve) through 90 degrees of plug rotation
Valve Body/Actuator Action	With diaphragm or piston rotary actuator, field-reversible between push-down-to-close (extending actuator rod closes valve) and push-down-to-open (extending actuator rod opens valve
Packing Constructions	PTFE V-Ring: With one carbon-filled PTFE conductive packing ring in single, double, or leak-off arrangements, -46 to 232C (-50 to 450F) PTFE/Bound-Composition: With one graphited composition conductive packing ring in single, double, or leak-off arrangements, -46 to 232C (-50 to 450F) Graphite Ribbon Packing Rings: In single, double, or leak-off arrangements, -198 to 538C (-325 to 1000F) ENVIRO-SEAL™ PTFE: -46 to 232C (-50 to 450F) (for 100 ppm service requirements) ENVIRO-SEAL Graphite: -7 to 316C (20 to 600F) (for 100 ppm service requirements). This packing arrangement can be used to 371C (700F) for non-environmental service. (continued)
Options	Restricted trim (retainer and seat ring) for low-flow applications, sealed bearing constructions, purged bearings, tungsten carbide trim option, flushing connections, chrome carbide valve body coating, ENVIRO-SEAL packing system; see

1. The reversible seat is not available in every trim material.  2. The pressure or temperature limits in the referenced tables or figures, and in any applicable code limitation, should not be exceeded. 3. Ratio of maximum flow coefficient to minimum usable flow coefficient. May also be called rangeability

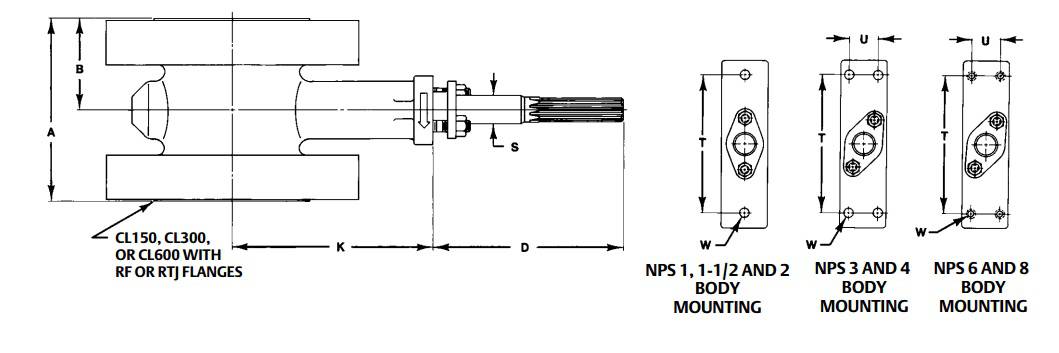

Valve Size, NPS	Dimensions										Approximate Weight
	A		B		D	K	S (Shaft Dia)(1)	T	U	W	Flanged
											Pressure Class
											CL150	CL300	CL600
	RF	RTJ	RF	RTJ
mm											Kg
1	102	108	51	57	187	126	12.7	118	–	11	5.4	5.9	5.9
1-1/2	114	122	57	63	187	135	15.9	118	–	14	8.6	9.5	10
2	124	124	62	62	187	151	15.9	118	–	14	9.5	11	13
3	165	165	83	83	213	200	25.4 25.4 x 19.1	152	32	14	19	24	26
4	194	194	97	97	208	216	31.8	235	46	18	36	42	50
6	229	229	114	114	208	270	38.1 38.1 x 31.8	235	46	5/8-Inch 11 UNC	54	69	93
8	243	243	121	121	208	318	38.1	235	46	5/8-Inch 11 UNC	79	98	135

See how Fisher Control Valves provide safe, efficient and intuitive flow control.

Installing Fisher V500 Eccentric Plug Valve

Fisher V500 eccentric plug valves may be installed in any position. However, for best shutoff performance, a position with the shaft horizontal is recommended.

➡ Did you know? Fisher was founded  in 1880 by William Fisher. Today Fisher valves are used throughout oil and gas, petrochemical, refining, power and paper industries – the company is now a subsidiary of the Emerson process industrial group.
