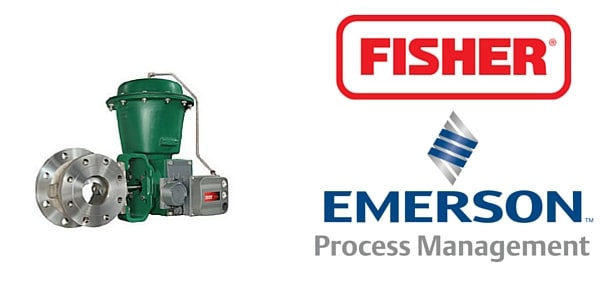

Fisher Vee-Ball V150E Segmented Ball Valve – Rotary Valves

Fisher Vee-Ball V150E Valve is a segmented ball valve that features a flanged expanded outlet design of one standard line size larger than the inlet. The expanded outlet geometry of the V150E streamlines the process flow through the valve as flow area increases from the inlet to the outlet.

The V150E valve retains many of the favorable traits of the traditional Vee-Ball valve design with the added feature of an expanded outlet.

The Fisher V150E segmented ball valve assembly features CG8M (S31700) valve body and ball, and R30006 seal materials as standard.

Fisher Vee-Ball V150E Segmented Ball Valve – Product Features

• Trim Versatility – trim components are interchangeable between V150, V200, and V300 valves. This feature allows you to reduce your spare parts inventory and maintenance procedures. The seal assembly can be changed without removing the actuator or without removing the ball from the valve body
• Easy Installation – flanged valve body design eliminates exposed line flange bolting, reduces alignment and installation time, and promotes secure valve installations and piping integrity
• Long Service Life- heavy-duty, metal seal construction provides long service life in demanding applications. The constant wiping action of the seal across the ball’s sealing surface provides excellent service on high consistency fibrous slurry applications. Also, low-friction, rigid bearing designs are tested and proven in high-load and high-cycle applications
• Smooth Valve Operation – precision machined parts, pressure-balanced seal, and low friction bearing designs allow smooth, precise movement of the ball
• Excellent Flow Control – precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic
• Expanded Outlet – Satisfies installation requirements where expanded down stream piping is specified
• Face-to-Face – unique dimensions typical of expanded outlet ball valve designs
• Structural Integrity – one-piece valve body improves structural integrity of the pressure boundary by eliminating leak paths that could be caused by the gaskets in two-piece, bolted valve designs

FISHER Vee-Ball V150E Segmented Ball Valve

PRODUCT Specification

Valve End Connection Styles	DN J 80×100, J 100×150, J 150×200, J 200×250, J 250×300 and NPS J 3×4, J 4×6, J 6×8, J 8×10, J 10×12 flanged valves that mate with PN 10/16 or CL150 raised-face flanges
Maximum Inlet Pressure(1)	CG8M (317 Stainless Steel) Valves: Consistent with ASME CL150 pressure-temperature ratings per ASME B16.34 or with PN pressure- temperature ratings shown in table 1, but do not exceed the material temperature capabilities shown below or the pressure drop limitations
Maximum Shutoff Pressure/Temperature Ratings(1)	HD (Heavy Duty) Metal Ball Seals and PEEK/PTFE Bearings:
Shutoff Classification(1)	HD (Heavy Duty) Metal Ball Seal (Bidirectional Flow): 0.01% of valve capacity; Class IV per ANSI/FCI 70-2 and IEC 60534-4; Maximum allowable pressure drop in reverse flow is 6.9 bar (100 psi)
Temperature Capabilities(1,2)	HD Metal Seals: -46 to 288_C (-50 to 500_F) PEEK/PTFE Bearings: -198 to 260_C (-325 to 500_F)
Flow Characteristic	Modified equal percentage
Packing Constructions	PTFE V-ring: —198 to 232_C (-325 to 450_F) ENVIRO-SEALt Single PTFE V-ring: -46 to 232_C (-50 to 450_F)
Standard Flow Direction	Forward (into the convex face of the V-notch ball)
Maximum Ball Rotation	90 degrees
Actuator Mounting	Standard valve construction is for right-hand mounting, as viewed from upstream end of valve with the shaft horizontal. Actuator can be mounted in any of four quadrants. Left-hand actuator mounting is available upon request
Valve Body/Actuator Action	With compact 2052 spring and diaphragm or 1061 piston rotary actuator, the valve is field-reversible between PDTC or PDTO: push-down-to-close (extending actuator rod closes valve) and push-down-to-open (extending actuator rod opens valve)
Options	J Flushing connection, J ENVIRO-SEAL packing system, J JIS 10K flanges

1. The pressure/temperature limits in this bulletin and any applicable standard or code limitation for valve should not be exceeded.

DN(1)	mm									Approxiamate Weight
	A	B	D	K	S	T	U	W	E (optional)	kg
80×100	165	82	214	130	19.1	152	31.8	14.2	12.7	26
100×150	163	76	214	141	19.1	152	31.8	14.2	12.7	28
150×200	207	101	214	164	25.4	152	31.8	17.5	12.7	46
200×250	248	123.5	208	232	31.8	235	46	17.5	19.1	87
250×300	297	147	208	260	31.8	235	46	17.5	19.1	123
