Horizontal Float Switch & Liquid Level Sensor (Stainless Steel) – Deeter 70 Series

Horizontal Float Switch & Liquid Level Sensor (Stainless Steel) – Deeter 70 Series

Liquid Level & Float Sensors

Deeter 70 Series is a horizontally mounted vertical liquid level sensor and float switch manufactured in 316L stainless steel.

Designed specifically for high pressure and temperature applications with a standard version for up to 120º and high temperature for up to 200º the Deeter 70 Series is suitable for the most harsh industries including food/beverage, automotive, pharmaceutical and chemical

T&D distribute the complete range of Deeter Level Sensors and Float Switches.

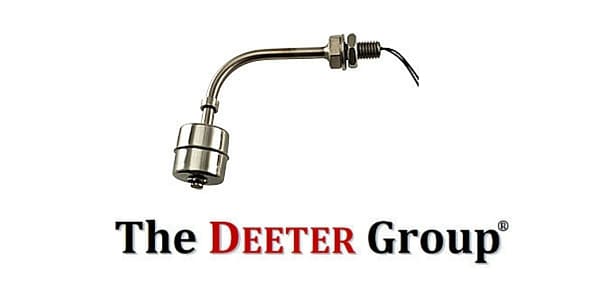

Deeter 70 Series liquid level sensor & float switch

Technical Data

  • Small side mounted vertical liquid level sensor
  • Suited for high temperature/pressure measurements and sensing chemically aggressive liquids
  • Change from N/O to N/C by inverting float
  • Food/beverage, automotive, pharmaceutical and chemical applications
Suitable Specific Gravity 0.8
Maximum Pressure 10 bar
Operating Temperature -20°C to +120°C (Standard version)
-20°C to +200°C (High Temperature version)
Cable length* 1 metre
Cable type Black P.T.F.E insulated 7/0.2mm rated 6A at 250vAC
Weight 30g
Tank Wall thickness 5MM max
Mounting M10 x 20mm
Wetted Materials 316 Stainless Steel

*other lengths available on request

level sensor & float switch – Part Locator

deeter 70 SERIES

70 Series Level Sensor & Float Switch 316L Stainless Steel

  • Deeter DE70-10C – 316L STAINLESS STEEL FORM C 10W 120°C
  • Deeter DE70-50A – 316L STAINLESS STEEL FORM A 10W 120°C
  • Deeter DE70-50AH – 316L STAINLESS STEEL FORM A 10W 200°C



Contact T&D for hazardous area level sensors and float switches with ATEX Certification for Zone 1 & Zone 2.

Liquid Level Sensors & Float Switches – Deeter Products

See how Deeter Electronics Group manufacture liquid level sensors and control equipment for commercial, industrial and hazardous area sensing of liquids with ATEX, IECEx and CSA Certified sensors. T&D can support, specify and supply explosion proof and flameproof level sensors for the global hazardous area industries including oil, gas and petrochemicals.

Liquid Level Sensors & Float Switches - Deeter Group - Hazardous Area (ATEX)

Contact T&D for Deeter Liquid Level & Float Sensors

➡ Did you know? T&D also supply Hydrostatic, Ultrasonic, Radar and Capacitive Level Measurement sensors, instruments and gauges.
