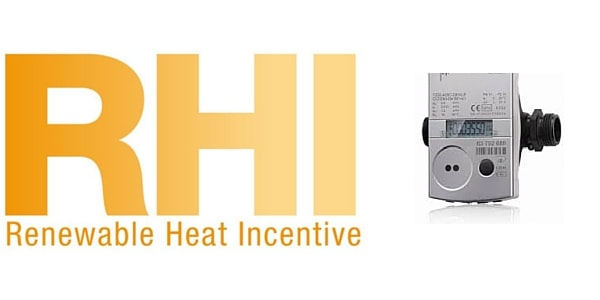

Landis + Gyr Ultraheat T230 Heat Meter RHI MID Class 2

RHI Compliant MID Class 2 Heat Meter

Meter Brand : Ultraheat
Meter Model : T230
Meter Manufacturer : Landis + Gyr
RHI Compliance : MID Class 2
Min Pipe Size 15mm
Max Pipe Size 20mm
Location of Flow Sensor : Flow or Return
Heat Conveying Liquid : Water

For complete technical data, specification information, installation guidelines and ordering details for Landis + Gyr Ultraheat T230 Heat Meter please refer to the download opposite.

Landis + Gyr Ultraheat T230 Heat Meter

Landis + Gyr Heat Meter Part Number	Pipe size	Max Flow Rate (qs m³/h)	Nominal Flow Rate (qs m³/h)	Min Flow Rate (qs m³/h)	Max Temperature °C	Min Temperature °C	Min Temperature Difference Δ max (°C)	Heat Meter Compliance
Landis + Gyr Ultraheat T230 4101515 / 4101516	15mm	3	1.5	0.01	90	5	3	RHI MID Class 2
Landis + Gyr Ultraheat T230 4102015 / 4102016	20mm	5	2.5	0.02	90	5	3	RHI MID Class 2

T&D are specialist suppliers of all RHI Compliant MID Class 2 Heat Meters – to discuss your gas, water or heat metering requirement contact our sales team.

MID & RHI

RHI Heat Meters

Landis + Gyr Ultraheat T230 heat meters have been independently verified by Kiwa GASTEC at CRE as suitably compliant with the Measuring Instruments Directive (MID) for the purposes of claiming the Renewable Heat Incentive (RHI).

RHI – Who Can Apply ?

Owner-occupiers, self-builders, private landlords and registered providers of Social Housing who have installed an eligible technology can apply for RHI support (provided they meet eligibility criteria).
Single domestic dwellings are covered.
RHI support is not available to new build properties (other than self-build projects).
