Rotronic BF220 Transmitter – Process Pressure Measurement
Rotronic BF220 process pressure measurement transmitter provides reliable measurement of the pressure of neutral gases and nitrogen in piping and closed containers within a compact and robust construction.
The pressure of the medium being measured acts on a pressure cell, which converts the pressure into an electronic signal.
The Rotronic BF220 transmitter is ideal for the measurement of absolute pressure in applications with fast temperature changes and in compressed air, HVAC and pneumatic systems.

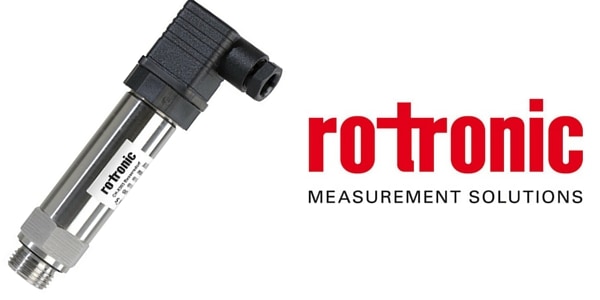

Rotronic BF220 Process Pressure Transmitter
Product Benefits
- Compact and robust construction transmitter
- Piezo-resistive steel sensor
- Zero and range adjustable with internal potentiometer
- RS-485
- Compatible to software SW21
- IP protection IP63/IP65
Rotronic BF220 Process Pressure Transmitter
Product Technical Data
| Rotronic Device Type | Parameters | Dimensions | Weight | Range Of Application | Measuring Range | Pressure Measurement Principle | Pressure Resistance |
| Process pressure transmitter | Absolute pressure | 137 x 41 x 27mm | ~220g | -30°C – 80°C | 0 – 10 bar | Piezo-resistive steel sensor | 15 bar |
Measurement Of Process Pressure & Field Of Application
Pressure transmitters measure the pressure of neutral gases and nitrogen in piping and closed containers. During this process, the pressure of the medium being measured acts as a pressure cell and converts it to an electronic signal.
The Rotronic BF220 is ideal for the measurement of absolute pressure in applications with fast temperature changes and in compressed air, HVAC and pneumatic systems.
Rotronic BF220 – Process Pressure Measurement Transmitter
Rotronic BF220 Process Pressure Transmitter
Technical Data
| Technical Data | Rotronic BF220 Pressure Transmitter | Rotronic BF227 Pressure Transmitter |
| Device type | Process pressure transmitter | |
| Parameters | Absolute pressure | |
| Housing Material | Stainless steel (1.4878) | |
| Diaphragm | Stainless steel (1.4404) | |
| IP protection | IP65 | IP63 |
| Mounting position | 90 ° to pressure pipe (max. 30 ° inclination) | |
| Transmitter dimensions | 137 x 41 x 27 mm | 113 x 14 x 27 mm |
| Weight | Approx. 220 g | Approx. 235 g |
| Pressure connection | G ½” male thread | |
| Seal ring | Viton | |
| Electrical connections | Hirschmann (DIN 43650) | 7-pin |
| Transmitter power supply | 15…30 VDC | 10…28 VDC |
| Range of application | -30…80 °C | -40…80 °C |
| Storage conditions | -30…80 °C | -40…80 °C |
| CE / EMC compatibility | EMC Directive 2004/108/EC, EN 61326 | |
ROTRONIC BF220 Absolute pressure measurement
| Pressure measurement principle | Piezo-resistive steel sensor | |
| Pressure measurement range | 0…10 bar | |
| Pressure resistance | 15 bar | |
| Medium | Air and non-aggressive gases | |
| Accuracy at 20 °C ±2 K (linearity, hysteresis, repeatability, deviation of start and end value of the measurement range | ±0.25 % FS max. | ±0.25 % FS max. |
| TK zero | ±0.03 %FS/K | |
| TK range | ±0.03 %FS/K | |
| Long-term stability | ±0.2 % full scale / year | |

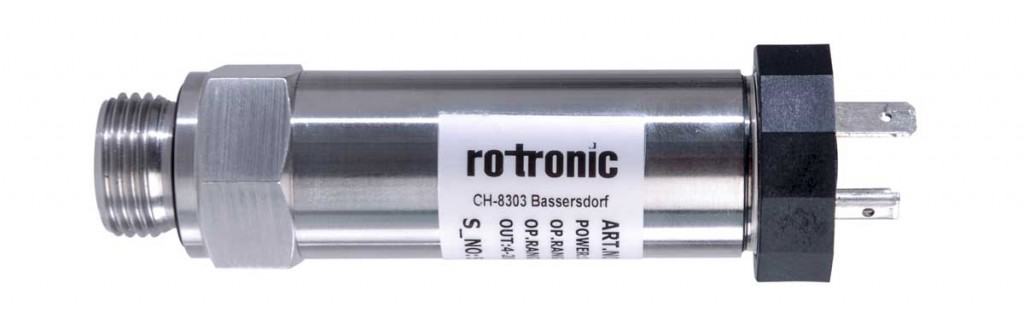

Rotronic BF220 BF227 (L-R) pressure measurement instrument product dimensions (mm)
ROTRONIC – PROCESS PRESSURE MEASUREMENT FOR PNEUMATIC SYSTEMS
Rotronic pressure transmitters measure nitrogen gas pressure in HVAC and pneumatic systems.
