SICK TBS Temperature Measurement Sensors
- Large display
- Individually programmable transistor outputs PNP or NPN, optional analog output 4 mA … 20 mA or 0 V … 10 V
- Round connector M12 x 1
- Measuring ranges –20 °C … +80 °C
- Pt1000 element, accuracy class A (IEC 60751)
- Various insertion lengths and connection threads
- Wetted parts made from corrosion-resistant stainless steel 1.4571
- Enclosure rating IP 65 and IP 67
SICK TBS – BENEFITS
- Quick and safe set-up through superior ease of use
- Compact dimensions and rotatable housing facilitate integration
- Very reliable: splash-proof housing, high-grade materials, rugged design, and field-proven technology
- Very good long-term stability, accuracy and linearity
- Quick response time
- Versatile configuration allows for optimal solutions for specific requirements
SICK TBS Temperature Measurement Sensors are simple to use and the rugged design aids the temperature measurement/monitoring of operating liquids, such as hydraulic oils, coolant lubricants and cleaning liquids in machine building and manufacturing. Suitable for are large range of applications as a result of having up to two binary outputs and one analog output.
Temperature measurement is done using a Pt1000 element that is located in the tip of the stainless steel probe and the uniquely designed menu navigation uses simple and standardised features and programming. A large, well legible display and three pushbuttons facilitate setup. It is possible to rotate the display and the process connection independently of the sensor body, ensuring both clean cable layout and that the display is facing the user.
| Measuring range | –20 °C … +120 °C |
| Accuracy of sensor element | ≤ ± (0.15 °C + 0.002 |t|) 1) |
| Accuracy of the opt. measuring transducer | ≤ ± 0.1 % of span |
| Signal outputs and maximum ohmic load RA | Switching outputs, Output signal 4 mA … 20 mA, Output signal 0 V … 10 V |
1) |t| is the absolute value of the temperature in °C.
Temperature Measurement SENSOR APPLICATIONS
SICK TBS Temperature Measurement Sensors enable temperature measurement of liquids and gases in industrial applications.
- General industrial temperature measurement
- Continuous temperature measurement and monitoring of temperature limits
- Local temperature display
- Well suited for temperature monitoring of operating liquids, such as hydraulic oils, cooling liquids and cleaning lubricants

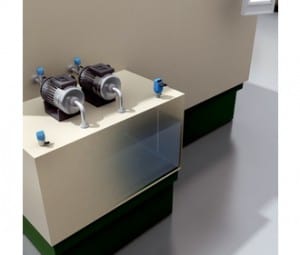

Monitoring the cooling lubricant
The SICK TBS temperature sensor signals any overheating of the cooling lubricant.
