SICK TBT Temperature Measurement Sensors
SICK SENSORS
SICK TBT Temperature Measurement Sensors
- Pt100 element, accuracy class A according to IEC 60751
- Measuring ranges –50 °C … +150 °C and –50 °C … +250 °C
- Wetted parts made from corrosion resistant stainless steel 1.4571
- Various mechanical adaptations and insertion lengths
- Pt100 (4-wire) or 4 mA … 20 mA (2-wire)
- Cable gland M16 x 1.5
SICK TBT – BENEFITS
- Reliable operation through rugged design and high-quality materials
- Very good long-term stability, accuracy and linearity
- Quick and safe installation
- Convenient system integration even in narrow installation spaces
- Optimal solutions for individual requirements due to versatile configurability
SICK TBT Temperature Measurement Sensors are Pt100 resistance thermometers with a splash resistant die-cast aluminium housing for the temperature measurement in liquid and gases. Suitable for a variety of applications thanks to a wide range of process connections and insertion lengths.
The SICK TBT has various connection threads that are available with or without compression fittings. Wetted parts of the SICK TBT are made from high-grade stainless steel 1.4571. Besides its Pt100 output signal, the TBT is available with an integrated transmitter with output signal 4 mA … 20 mA.
| Measuring range | –50 °C +150 °C –50 °C +250 °C |
| Accuracy of sensor element | Class A according to IEC 60751 |
| Accuracy of the opt. measuring transducer | ≤ ± 0.1 % of span |
| Signal outputs and maximum ohmic load RA | Pt100, 4-wire, 4 mA … 20 mA, 2-wire (RA ≤ (L+ – 10 V) / 0.028 A [Ohm]) |
| Electrical connection | Cable gland M16 x 1.5, IP65 1)Â Cable gland M16 x 1.5, IP67 |
1) Enclosure rating IP per IEC 60529. The enclosure rating classes specified only apply when connected with female connectors that provide the corresponding enclosure rating
Temperature Measurement SENSOR APPLICATIONS
SICK TBT Temperature Measurement Sensors enable temperature measurement of liquids and gases in industrial applications.
- Monitoring of operating conditions (e.g., temperature of cooling water or hydraulic fluids)
- Tank construction
- Plant engineering
- Heating systems

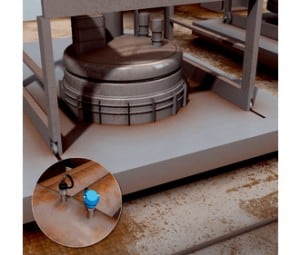

Cooling water pressure and temperature at vacuum degasser
Various parts of the vacuum degasser and vacuum oxygen degasser must be properly cooled in order to achieve problem-free plant operation. The SICK TBT temperature measurement sensor has a rugged design comprising of high-quality components that aid long-term stability, accuracy and linearity.
Together with the SICK PBT pressure transmitter the TBT can easily be installed offering an accurate cooling system for pressure and temperature monitoring applications.
