SICK THTE Temperature Measurement Sensors
- Pt100, accuracy class A (IEC 60751)
- Measuring ranges –50 °C … +150 °C and –50 °C … +250 °C
- Sensor probe spring-loaded in protective pipe
- Wetted parts: corrosion-resistant stainless steel 316L/1.4435, Ra ≤ 0.8 µm
- Hygienic process connections
- Pt100 (4-conductor) or 4 mA … 20 mA (2-conductor)
- M12 round connector x 1
SICK THTE – BENEFITS
- The sensor can be exchanged without opening the process, providing high equipment availability and minimizing hygienic risks
- Safe hygienic operation: Wetted parts are made from high-grade stainless steel, hygienically-graded surface finish, and a gap- and crevice-free design
- Rugged: Connection housing is easy to clean and splash water proof
- Quick and safe installation
- Very good long-term stability, accuracy and linearity
- Quick response time
- Optimal solutions for individual requirements due to versatile configurability
SICK THTE Temperature Measurement Sensors are able to offer a hygienic temperature measurement with a protection tube. The THTE is a Pt100 resistance thermometer designed specifically for use in industries such as food and beverage, cosmetics, pharmaceutical and biotechnology.
The SICK THTE is suitable for CIP and SIP processes and thanks to the high-grade stainless steel and crevice free design meets the latest industry hygienic requirements and enables safe and clean processing. The range of common hygienic process connections that are welded gap-free to the connection housing and multiple insertion lengths allow universal use.
| Measuring range | –50 °C +150 °C –50 °C +250 °C |
| Accuracy of sensor element | Class A according to IEC 60751 1) |
| Accuracy of the opt. measuring transducer | ± 0,25 K |
| Signal outputs and maximum ohmic load RA | Pt100, 4-wire, 4 mA … 20 mA, 2-wire (RA ≤ (L+ – 10 V) / 0.023 A [Ohm]) |
| Electrical connection | M12 round connector x 1, 4-pin |
1) Class B (measuring range –50 ° C … –30 ° C)
Temperature Measurement SENSOR APPLICATIONS
SICK THTE Temperature Measurement Sensors enable temperature measurement of liquids and gases in industrial applications.
- Hygienic temperature measurement in vessels and pipes
- Temperature monitoring and control in the food and beverage industry
- Temperature measurement in the cosmetics, pharmaceutical and biotechnology industries

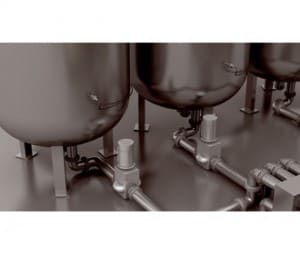

Measurement of temperature in supply tanks for bottling systems
In the beverage industry constant monitoring of the temperature of supply tanks for bottling systems is required. The THTE which is a Pt100 resistance thermometer that must meet the latest industry hygiene standards.
The stainless steel design of the SICK THTE and the gapless design ensures safe hygienic operation and optimised availability of the bottling system.
