SPZ-MPBY5K | ATEX Bay Light Zone 2 (Mid Power) | 5,000 Lumens
SPZ-MPBY5K | ATEX Bay Mid Power Light Zone 2

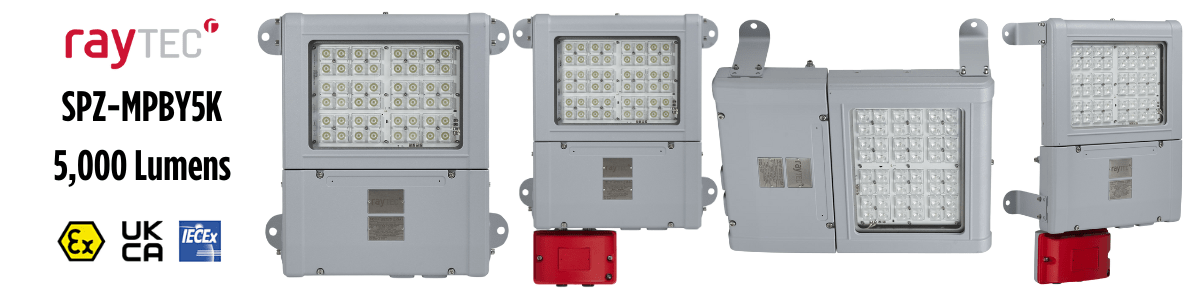

Raytec SPz-MPBY5K
ATEX Floodlight Zone 2 & Zone 22 5,000 Lumens
Zone 2 Light Fittings ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres
SPARTAN Flood range of ATEX Bay Lights form part of the Hazardous Area Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations which require high performance, high reliability and white-light illumination in potentially explosive atmospheres.
Using Raytec’s field-proven, long-life LED technology the SPZ-MPBY5K is globally certified for all Zone 2 applications.
Now available in NEW Intelligent Emergency variants combining advanced technology with a relentless commitment to safety, providing unparalleled reliability and illumination in even the most demanding hazardous environments. Available in 90-minute and 180-minute duration variants, as a standard (other options available).
SPARTAN Mid Power Bay SPZ-MPBY5K features a unique modular design, where key components are easily accessible for straightforward maintenance and inspection.
The ATEX bay light is available with a range of beam patterns (30°x30, 60°x60, 90°x90, 10°x10° and 120°x15) to effectively illuminate large open areas . The use of secondary optics means no loss of output on wider angles.
Hazardous Area Rating: Zone 2 – Gas & Dust
Zone 2 Gas
II 3 G D
Ex ec mc IIC T4 Gc
Ta= -40°C to+60°C
Zone 22 Dust
Ex tc IIIC T90°C Dc
Ta= -40°C to+60°C
CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 5, 149 delivered lumens.
All SPARTAN luminaires including the Mid Power Bay come with an industry leading 5 year warranty.
Zone 2 bay light Key Features
- Raytec Part Number – SPZ-MPBY5K
- ATEX and IEC Ex approved – Zone 2 (Gas) & Zone 22 (Dust)
- UKCA approved
- Ultra Long Life LED
- High Lumen Output LED
- Easy Installation and Maintenance
- Extreme Durability and Toughness
- Wide Operating Temp -40° to +60°
- Zone 1 Variants Available
- 5 Year Warranty
- UK Designed and Manufactured
MPBY Standard & Emergency Product Specifications
Technical Specification
| Certification: | ATEX, UKCA and IEC Ex rated for Zone 2 and 22 Gas and Dust |
| Angles: | 30°x30°, 60°x60°, 90°x90°, 10°x10° and 120°x15 circular |
| Input: | Mains Voltage 110-277V 50/60 Hz AC Only |
| Beam Angle System: | Fixed |
| Consumption: | 40W |
| LED Type: | PLATINUM Elite SMT LEDs |
| Number of LEDs: | 24 |
| Power Output: | Up to 5,149lm |
| Wavelength: | White-Light (5,700K) |
| IP Rating: | IP66 and IP67 |
| Temperature Range: | -40° to +60° |
ATEX Mid Power Bay light Zone 2 | SPZ-MPBY5K
Product Codes
| SPARTAN BAY Zone 2/22 Mid Power Bay SPZ-MPBY | ||
| SPZ-MPBY5K-W-1010 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay | Beam patterns 10°x10° |
| SPZ-MPBY5K-W-1010-EMX90 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay (Intelligent Emergency 90mins) | Beam patterns 10°x10° |
| SPZ-MPBY5K-W-1010-EMX180 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay (Intelligent Emergency 180mins) | Beam patterns 10°x10° |
| SPZ-MPBY5K-W-3030 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay | Beam patterns 30°x30° |
| SPZ-MPBY5K-W-3030-EMX90 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay (Intelligent Emergency 90mins) | Beam patterns 30°x30° |
| SPZ-MPBY5K-W-3030-EMX180 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay (Intelligent Emergency 180mins) | Beam patterns 30°x30° |
| SPZ-MPBY5K-W-6060 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay | Beam patterns 60°x60° |
| SPZ-MPBY5K-W-6060-EMX90 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay (Intelligent Emergency 90mins) | Beam patterns 60°x60° |
| SPZ-MPBY5K-W-6060-EMX180 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay (Intelligent Emergency 180mins) | Beam patterns 60°x60° |
| SPZ-MPBY5K-W-9090 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay | Beam patterns 90°x90° |
| SPZ-MPBY5K-W-9090-EMX90 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay (Intelligent Emergency 90mins) | Beam patterns 90°x90° |
| SPZ-MPBY5K-W-9090-EMX180 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay (Intelligent Emergency 180mins) | Beam patterns 90°x90° |
| SPZ-MPBY5K-W-12015 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay | Beam patterns 120°x15° |
| SPZ-MPBY5K-W-12015-EMX90 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay (Intelligent Emergency 90mins) | Beam patterns 120°x15° |
| SPZ-MPBY5K-W-12015-EMX180 | SPARTAN BAY Zone 2/22 LED White Light Mid Power Bay (Intelligent Emergency 180mins) | Beam patterns 120°x15° |
ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
SPARTAN Mid Power Bay Light MPBY Zone 2 – Data Sheet
