Recessed LED Lighting For Hazardous & Industrial Areas | Product Overview
Published 01 Sep 2024
Recessed LED Lighting
Introducing the Next Generation of Recessed Luminaires for use in explosive atmospheres, the NEW SPARTAN Recess – the latest addition to the SPARTAN hazardous area lighting range. This revolutionary new product, manufactured by Raytec, is designed to set a new standard for ATEX recessed lighting in the industry.
The SPARTAN Recess is a highly versatile and efficient solution that provides unparalleled light distribution and coverage in hazardous environments. Its unique design features a slim, compact body that allows for easy installation in tight spaces, making it an ideal choice for applications where traditional recessed luminaires may not fit.
With its modular design, lightweight construction, ease of maintenance, and multiple beam options, SPARTAN Recess ATEX lighting is the perfect solution for any application, ceiling type, or installation method.
Hazardous Area & Heavy Industrial Lighting
 |
 |
 |
 |

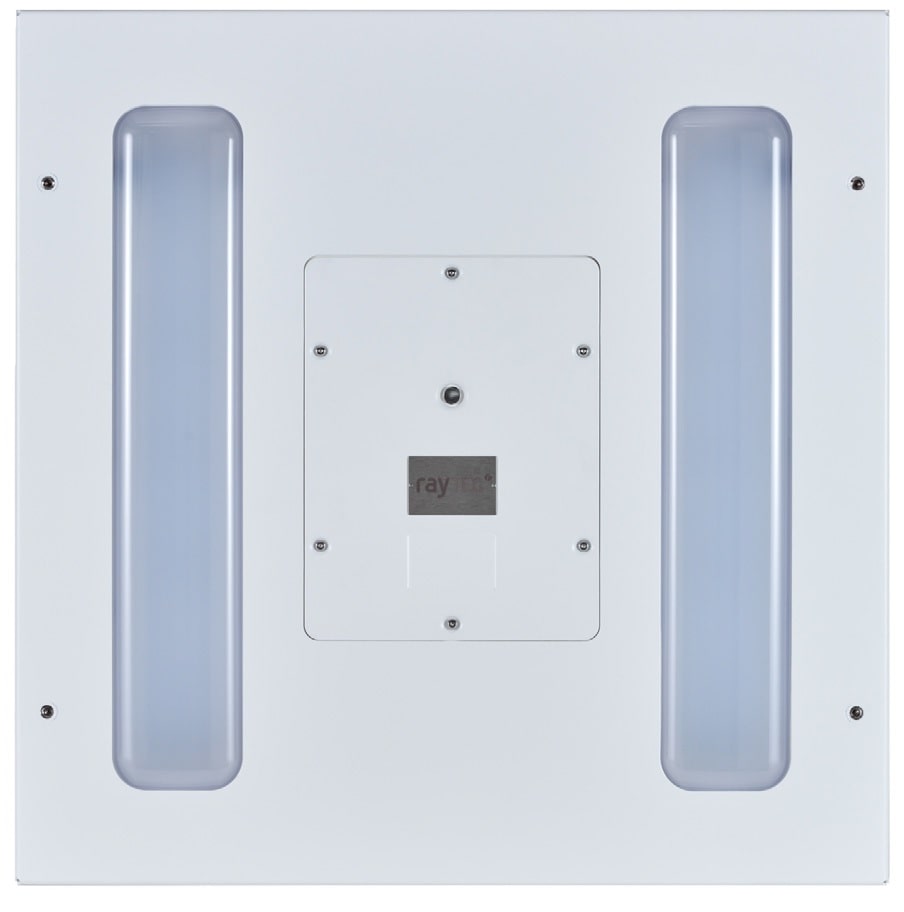

| The SPARTAN Recess luminaires are fully certified for Zone 1/21 and Zone 2/22 hazardous areas, including ATEX, IECEx and UKCA. | WARRIOR Recess are also available for heavy duty industrial applications, providing all the durability of the Ex variant for safe area applications |
Recessed Lighting For Industrial & Hazardous Areas
Key Benefits:
- Modular Design: Available in various bespoke and plank sizes, SPARTAN Recess can be tailored to fit any specific need. Whether you’re working with a unique ceiling configuration or require a custom-fit solution, our modular design ensures a seamless integration
- Lightweight Construction: Built 50% lighter than equivalent products, SPARTAN Recess reduces the weight load on your ceiling, making installation and maintenance a breeze. This feature also reduces the risk of damage to the luminaire or surrounding structure
- Ease of Maintenance: Designed with accessibility in mind, SPARTAN Recess can be serviced from both below and above the ceiling. This ensures quick and easy maintenance, minimizing downtime and reducing costs
- Multiple Beam Options: With various beam angles available, SPARTAN Recess caters to different applications and requirements. From narrow-beam spotlights to wide-beam general lighting, we’ve got you covered

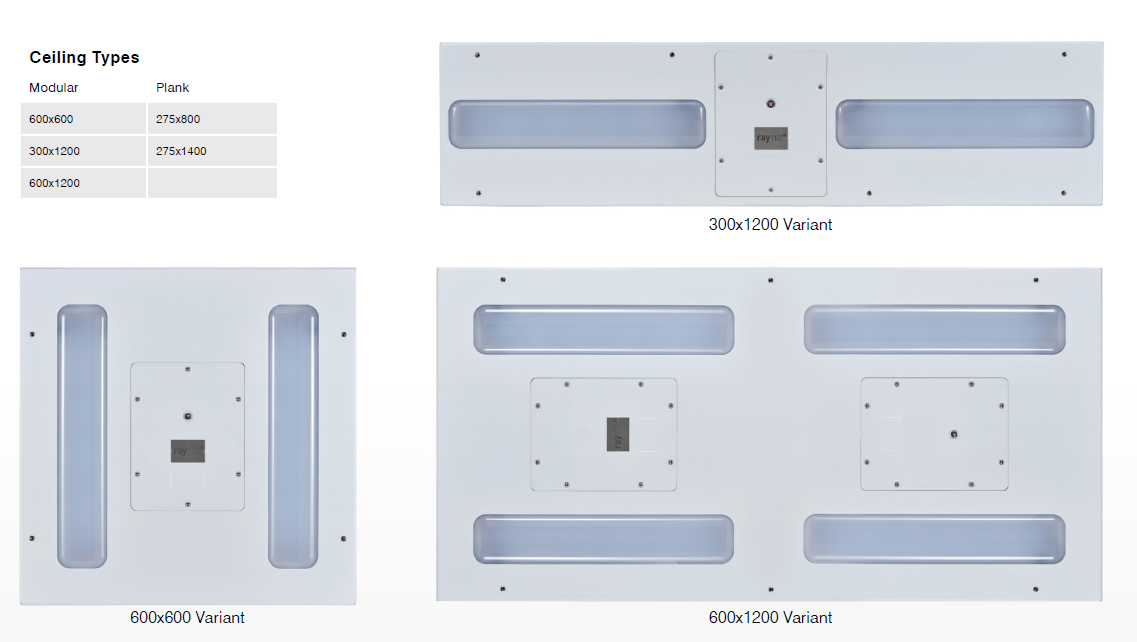

Modular Design – Multiple Variant Options
SPARTAN Recess is available in a variety of standard and bespoke options to suit any application, ceiling type, or installation method. Modular options available in 600×600, 300×1200 and 600×1200 with plank options available in 275×800 and 275×1400.

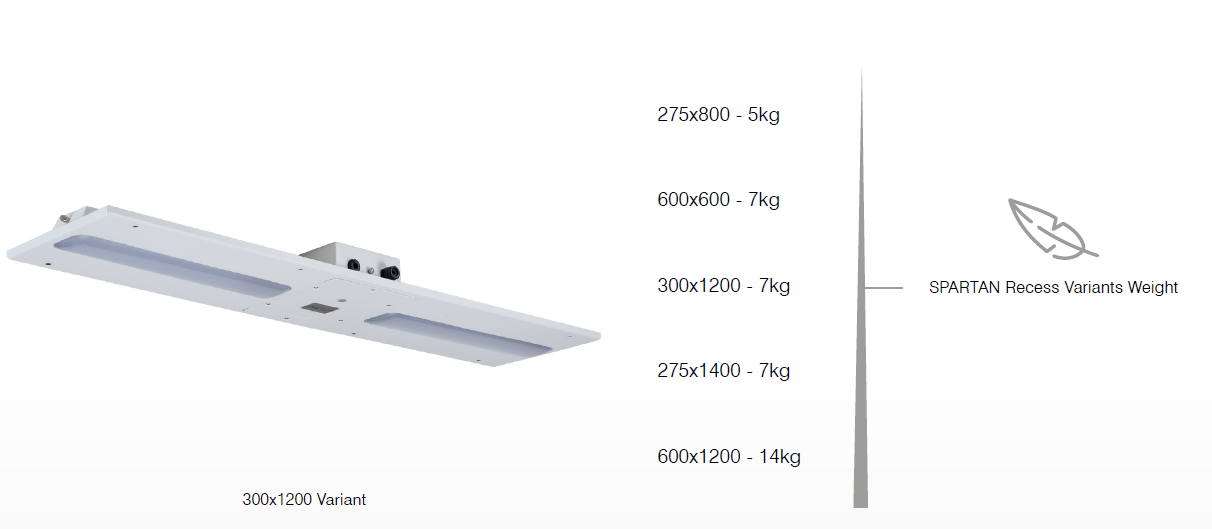

Lightweight Design
SPARTAN Recess is built 50% lighter than equivalent products. It’s lightweight design allows for easier installation and reduces the weight load on the ceiling.

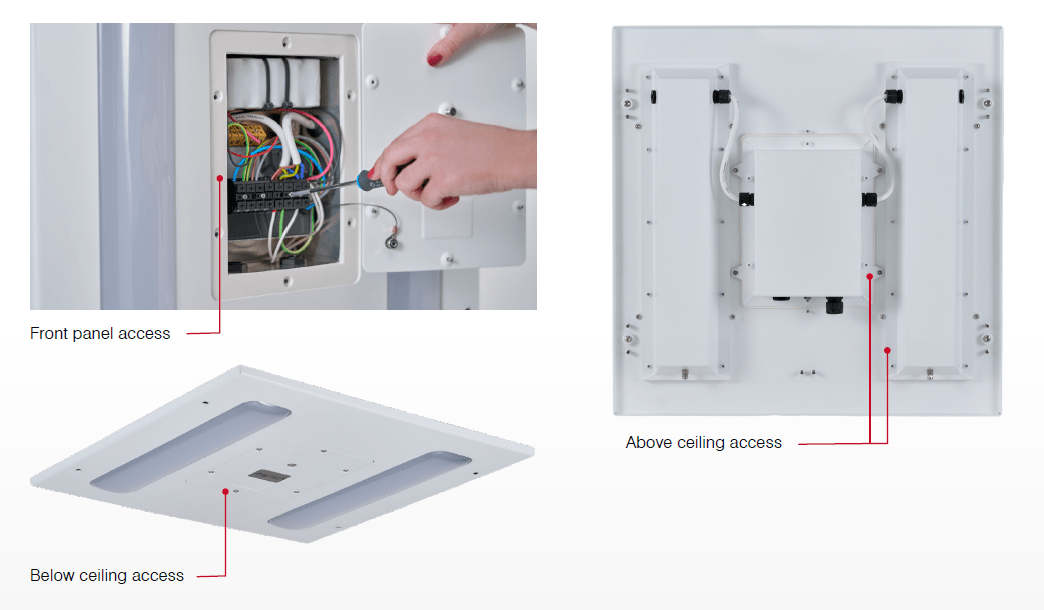

Ease of Installation & Maintenance
As with all Raytec products, the new SPARTAN Recess luminaires have been designed with maintenance in mind, featuring an innovative, lightweight, modular design to allow access from below and above the ceiling for quick and easy on-site servicing.
Recessed Lighting Accessories
Installation is made easy with the SPARTAN Recess bracket accessories. Purchase our Swing Arm Bracket or the Drop Rod Bracket with your SPARTAN Recess fitting to make installation quick and easy.
 |
 |

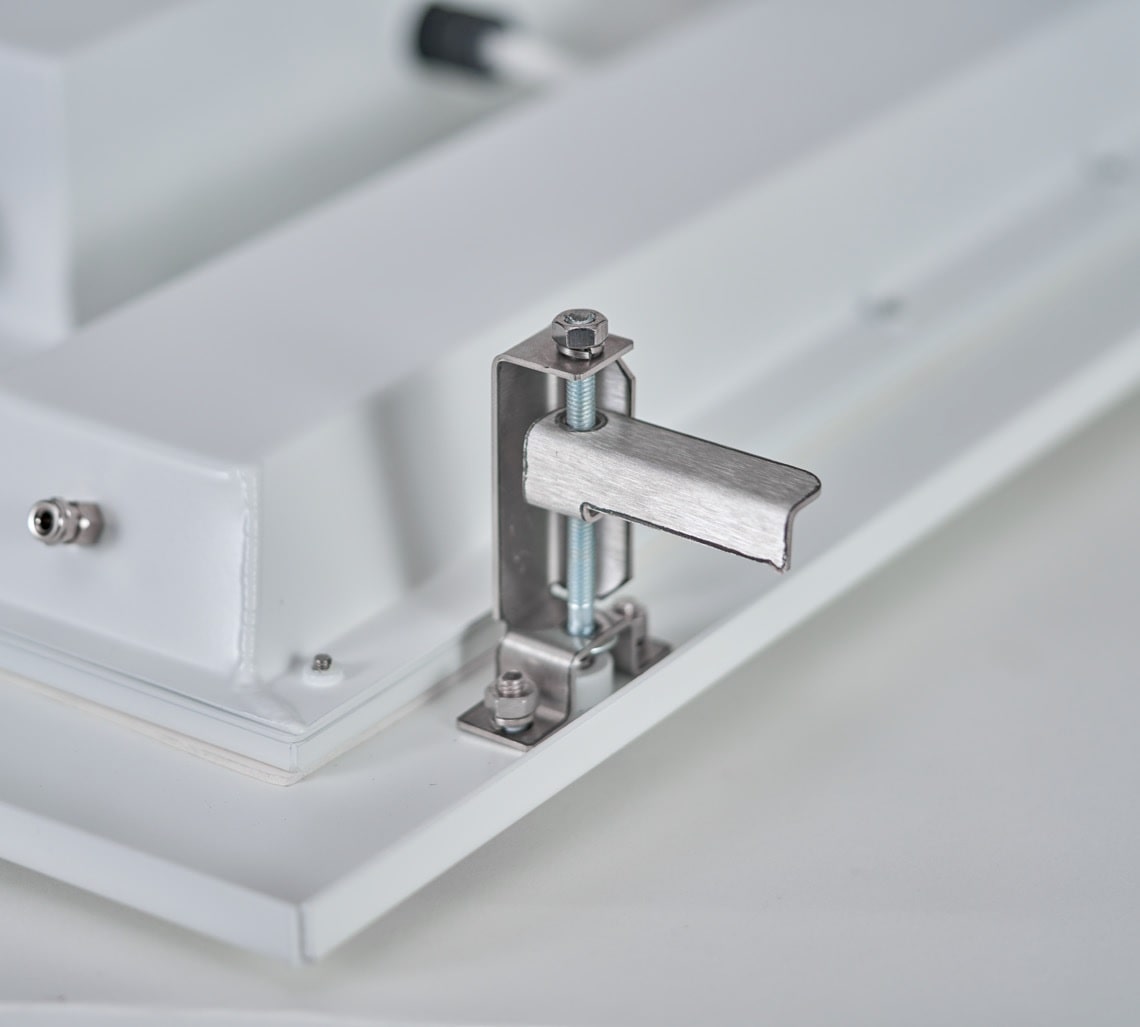

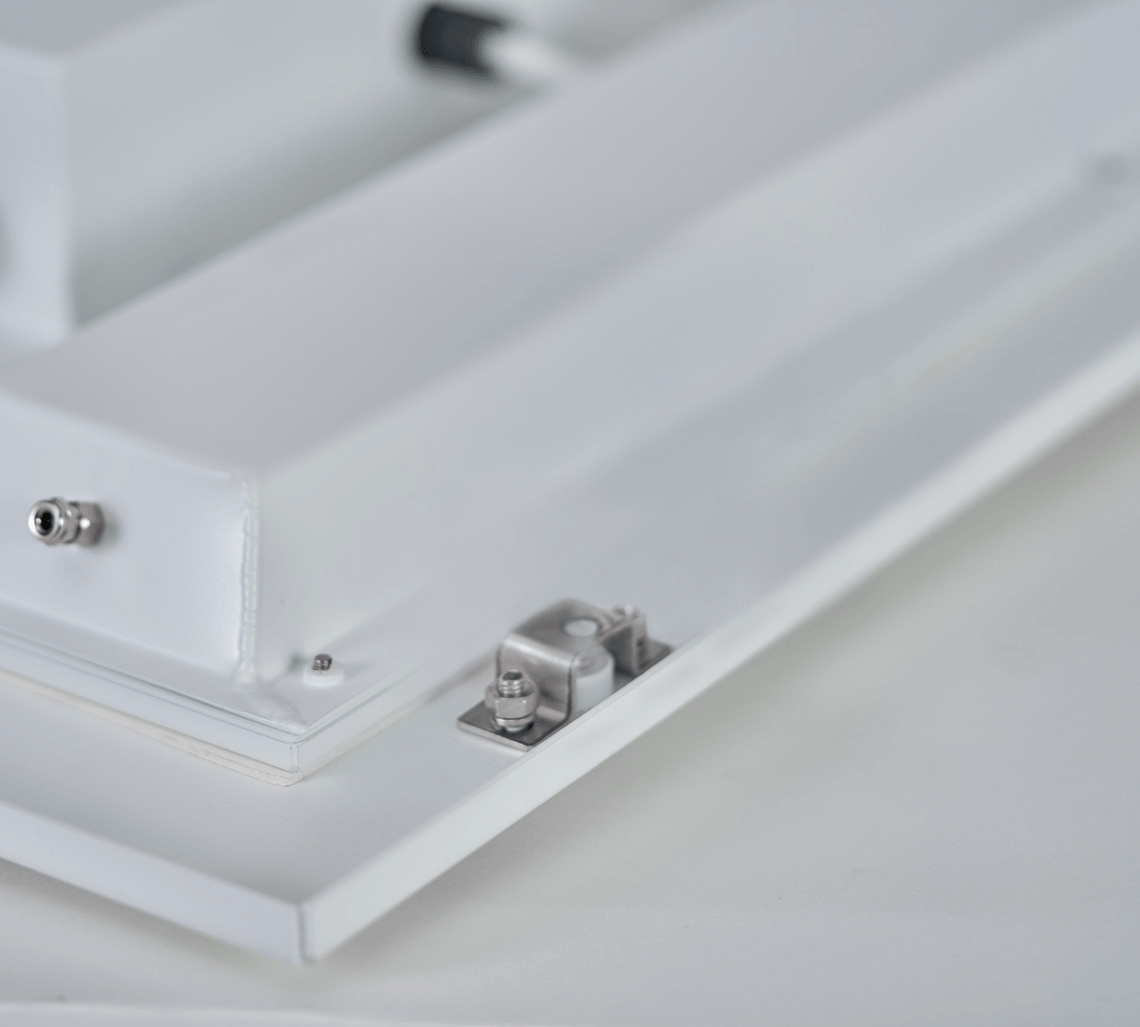

| Swing Arm Bracket | Drop Rod Bracket |
Multiple Beam Angles
The new SPARTAN Recess luminaires are available with a range of different beam angles to suit a wide range of applications.
Recessed Lighting
Additional FeaturesÂ
 |
Ultra-Powerful | Delivers industry-leading power & performance – high lumen output from 3,079 to 12,316 lumens for Zone 1 variants. |
 |
Intelligent Emergency | Self-testing emergency battery providing up to 3 hours emergency back-up. |
 |
Controllable | DALI 2.0 Dimmable as standard on selected variants for precise and flexible control of lighting assets. |
 |
5 Year Warranty | SPARTAN Recess is supported by Raytec’s comprehensive 5 year warranty. |
Upgrade Your Industrial & Hazardous Area Lighting Solutions:
Experience the benefits of SPARTAN Recess luminaires for yourself. Upgrade your lighting solutions with this cutting-edge technology and enjoy:
- Improved performance and efficiency
- Enhanced flexibility and customisation options
- Increased ease of use and maintenance
- Reduced costs and downtime
Join the next generation of recessed hazardous area lighting with SPARTAN Recess. Contact Thorne & Derrick today to learn more about how this innovative solution can revolutionise your lighting needs.
Using the latest software, we can provide a FREE LIGHTING DESIGN SERVICE for the specification and supply of ATEX & IECEx light fittings to provide safe and reliable lighting in hazardous areas and industrial locations
