The Next Generation Electrical Fan Heaters For Hazardous Areas

Published 24 Aug 2021

The Next Generation Electrical Fan Heaters For Hazardous Areas

by Terry McDonald | Product Specialist | Electrical Heating & Explosive Atmospheres


The EXHEAT LFH Heater, Distributed Exclusively by Thorne & Derrick, combines superior heating efficiency with simple user functionality to provide the next-generation solution for heating hazardous areas where the atmosphere is classified as Zone 1/2 (IIB+H2 Flammable Gas) or Zone 21/22 (IIIC Combustible Dust).

Dual certified according to ATEX & IECEX, the LFH withstands extreme onshore and offshore conditions (-40°C… +40°C) offering robust, reliable and powerful fixed or portable heating (up to 40kW output – 3600m³/hour air flow) with T3 and T4 temperature classes.

The corrosion and chemical resistant marine grade stainless steel casing provides durability and ductability of the heater permits localised and directed heat flow – LFH electrical fan heaters provide comfort, space and accelerated process heating in the explosive atmosphere industries.

With multiple mounting options for floors, walls and ceilings the versatile heater is supplied ready to ‘plug and play’, with the option of fitting a plug, or hard wiring to an isolator unit.

➡ Should you require a product demonstration (in-person or virtual) or further information please contact us – for further details refer to the IOM Manual or Brochure.


Ex Stock Availability, Contact us for Quotation


EXHEAT LFH Portable Electric Fan Heaters for Hazardous Areas with ATEX Certification


lfh Fan Heaters


Applications

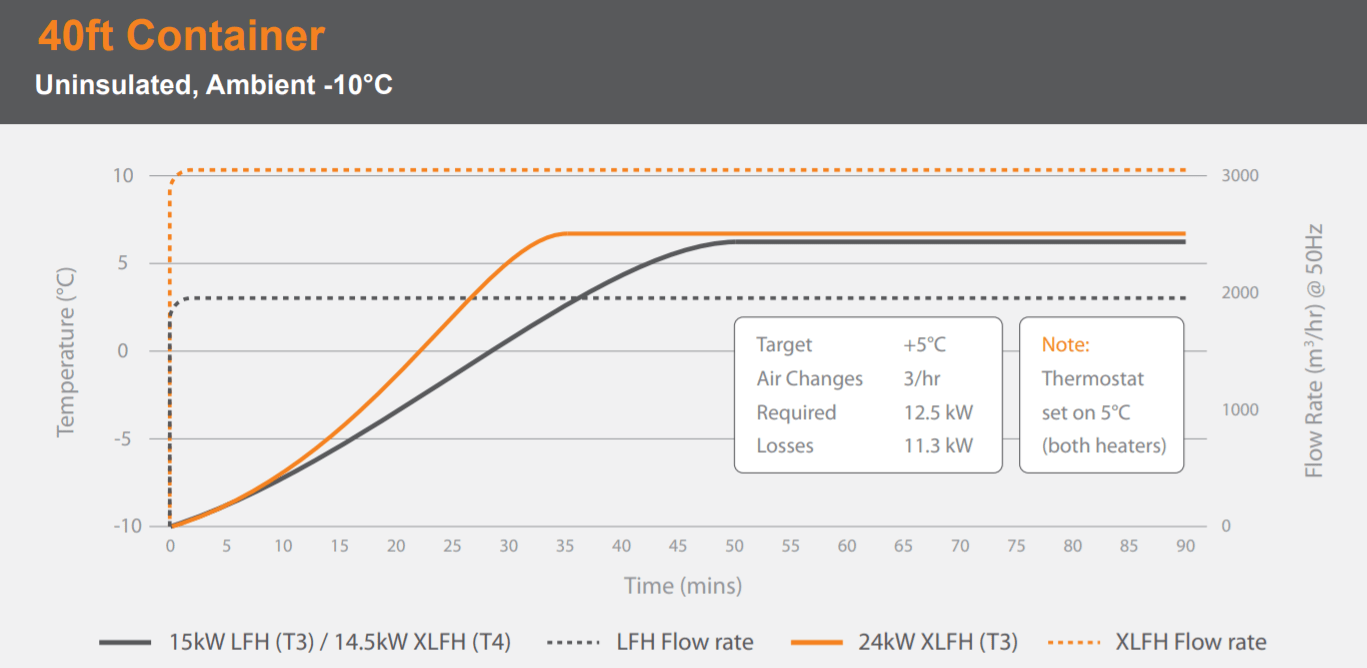

LFH Heater 40ft Container Heating

High Performance Space Heaters | the patented heating element provides market-leading energy efficiency compared to conventional competitor fan heaters that utilise heat exchangers. Ask about Air ΔT (°C/°F) for the fixed and portable version of the fan heaters.

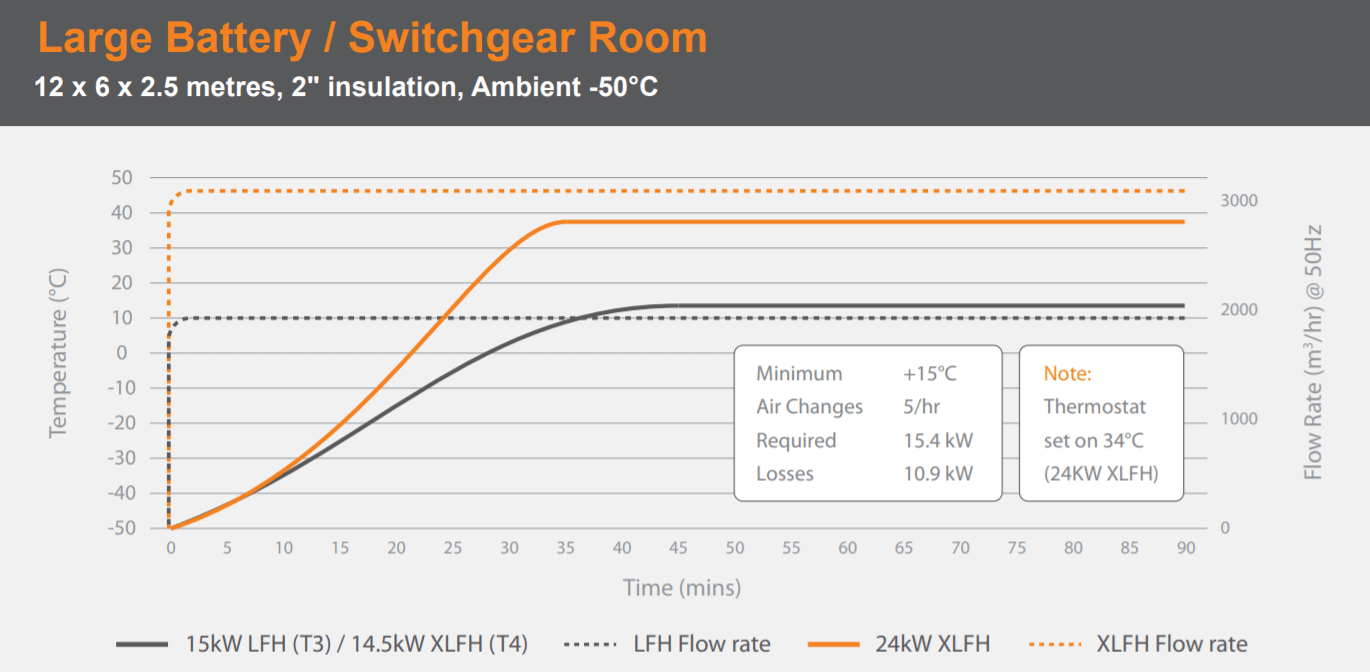

LFH Battery Switchgear Room Heating

Heating High Voltage Substations & Hard-to-reach Locations | with optional long flying lead to direct heat to the target spot, the heaters provide reliable air warming for battery room sections of MV HV substations. Safe to use in locations where lead-acid type batteries release potentially explosive hydrogen gas when charging.

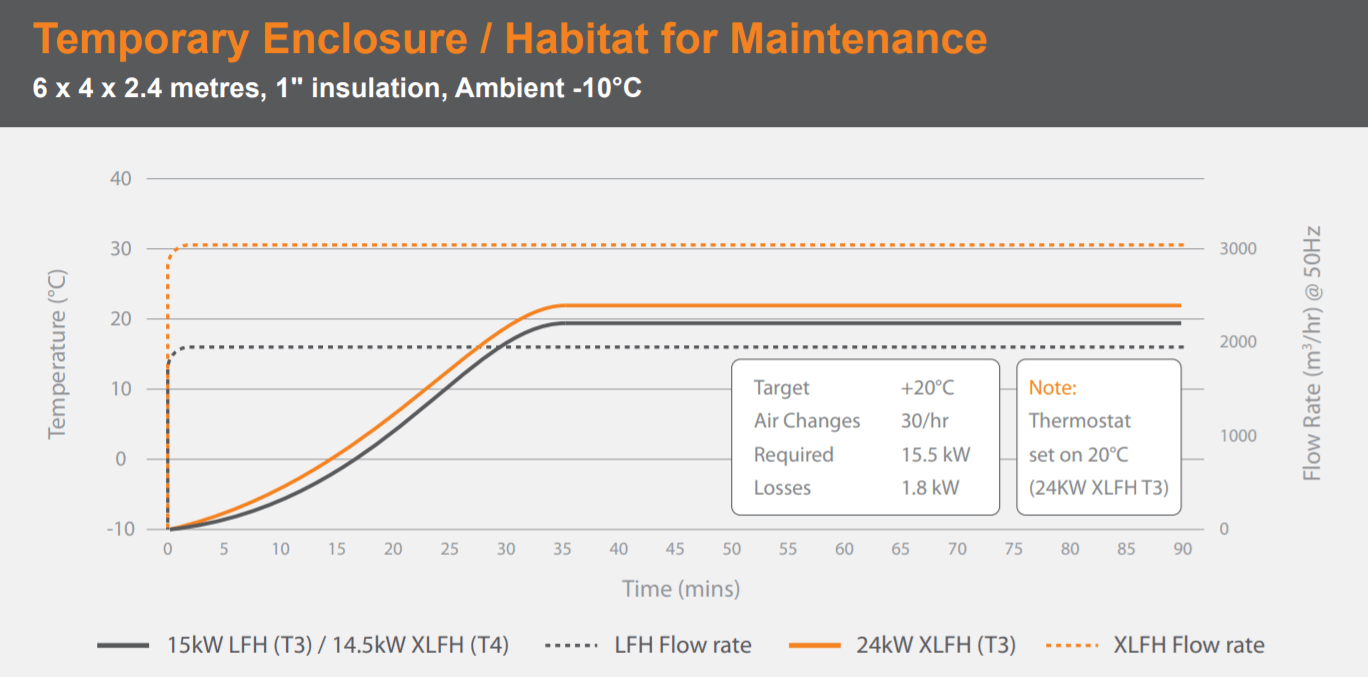

LFH Temporary Enclosure Habitat Heating

Supreme Air Flow | market-leading air flow capability ensures safe pressurising and heating of habitats for onsite onshore or offshore repair works.


Aircraft Servicing Hangars Frost Protection & Winterisation Oil & Petroleum Refineries Marine & Shipping
Comfort & Space Heating Skids & Offshore Containers Paint Rooms Spray Booths
Curing | Drying Paints & Resins Oil & Gas Drilling Platforms Pipe Wrapping & Composite Repairs Utilities, Substations & Battery Rooms

CertifiedATEX IECEx Electrical Heaters

ATEX

 II 2 G D Ex h
Ex db eb IIB+H2 T3…T4 Gb
Ex tb IIIC T200°C…T135°C Db

IECEx

Ex db eb h IIB+H2 T3…T4 Gb
CU TR (EAC) Certified Electric Fan Heaters

Ex tb IIIC T200°C…T135°C Db

CU TR (EAC)

1Ex db e IIB+H2 T4…T3 Gb X
Ex tb IIIC T135°C…T200°C Db X

Certificates | ATEX | CU TR | IECEx


Approved

In 2016, 2 new standards were issued to replace the now withdrawn BS EN 13463 range of standards that are to protect non-electrical equipment for use in potentially explosive atmospheres. Adding to the EN IEC 80079 range of standards, BS EN ISO 80079-36:2016 and BS EN ISO 80079-37:2016 were published.

Products protected by constructional safety, control of an ignition source and liquid immersion have their ATEX markings suffixed by the letters ‘c’, ‘b’ and ‘k’ respectively.

The new standards have compressed these three concepts into a single explosion protection concept and allow the new Ex h marking to be used. By including a fan in the design, the ATEX requirements in BS EN 14986:2017 were triggered, which calls on the requirement for constructional safety markings.

The LFH fan heater ranges are marked with the Ex h markings, and have undergone additional testing over and above the standard electrical and mechanical requirements of the BS EN IEC 60079 range of standards in order to confirm compliance.

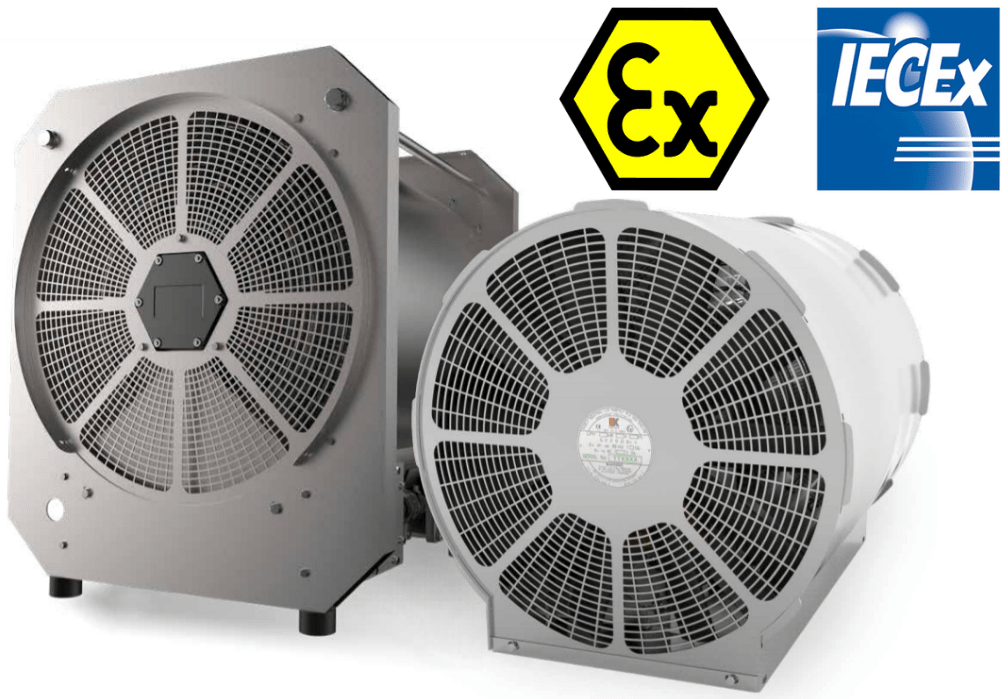

Hazardous Area Heaters


Specification

Materials Casing: Stainless Steel
Impeller: PA66
Element: Finned Stainless Steel Tubular Elements
Ex e Enclosure: Stainless Steel
Ex d Enclosure: Anodised Extruded Aluminium
Dimensions LFH: Length 540mm, Width 600mm, Height 600mm – 50kgs
XLFH: Length 690mm, Width 720mm, Height 680mm – 60kgs
Voltage Three Phase, 380V to 690V, 50 / 60Hz




ATEX Fan Heaters

LFH | Portable & Powerful – the compact space-saving design delivers powerful warm air flows up to 40kW.


EXHEAT Winterisation

Whether distilling whisky or refining oil we can help put heat back into your process. Whatever the weather, wherever the Zone | Winterisation
