ATEX Bay Light Zone 1 Raytec SPARTAN Mid Power Bay

ATEX Bay Light Zone 1 | Raytec SPARTAN Mid Power Bay

ATEX Bay Light

Zone 1 SPARTAN Mid Power Bay

➡ View our complete range of Zone 1 ATEX, IECEx & UKEX Light Fittings manufactured by Raytec and certified according to the ATEX Directive to provide safe and reliable hazardous area lighting in potentially explosive atmospheres in both onshore and offshore locations Zone 1 & 2 Flammable Gas and Zone 21 & 22 (Combustible Dust).

See also Zone 2 ATEX Bay Light

➡ Visit ATEX Lighting to view the complete range of hazardous area lighting.

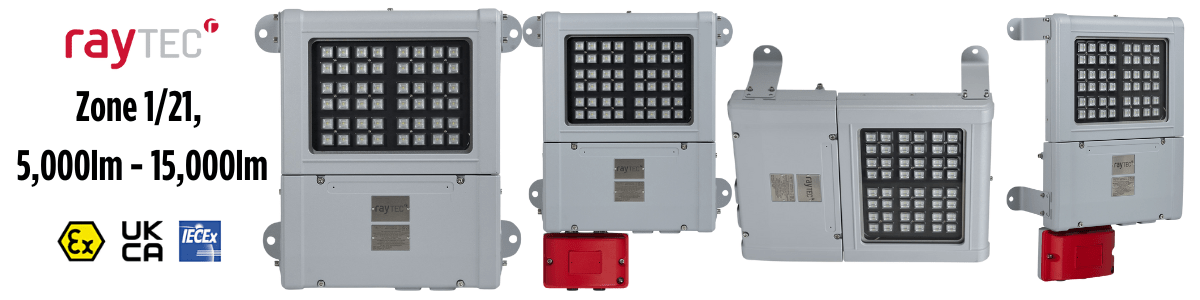

SPARTAN Mid Power ATEX Bay Light

The SPARTAN Mid Power Bay range is designed for new hazardous area installations or to directly replace traditional discharge light sources.

Offering increased performance with a high lumen output of up to 15,000 lumens the ATEX bay light is designed to directly replace traditional discharge light sources up to 250W SON.

The ATEX Mid Power Bay Light features a unique modular design, where key components are easily accessible for straightforward maintenance and inspection. CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output.

The ATEX light fitting has a robust and durable construction from marine grade aluminium and with a wide operating temperature for even the most challenging conditions.

The SPARTAN Mid Power Bay luminaires are fully certified for Zone 1/21 hazardous areas, including ATEX, IECEx and UKCA.

ATEX Bay Light

ATEX Bay light Zone 1 Key Features

  • ATEX and IEC Ex approved – Zone 1
  • UKCA approved
  • Ultra Long Life LED
  • High Lumen Output LED
  • Easy Installation and Maintenance
  • Extreme Durability and Toughness
  • Wide Operating Temp -40° to +60°
  • Zone 2 Variants Available
  • 5 Year Warranty
  • UK Designed and Manufactured
Mid Power Flood & Mid Power Bay

Mid Power Flood & Mid Power Bay

Specification

  • Part Reference: SPX-MPBY
  • Certification: ATEX, UKCA and IEC Ex rated for Zone 1 and 2 Gas and Dust
  • Angles: 30°, 60° and 90° circular
  • Input: Mains Voltage 110-277V 50/60 Hz AC Only
  • Beam Angle System: Fixed
  • Consumption: 40W/60W/80W/100W/120W
  • LED Type: PLATINUM Elite SMT LEDs
  • Number of LEDs: 24/48
  • Power Output: Up to 15,000lm
  • Wavelength: White-Light (5,700K)
  • IP Rating: IP66 and IP67
  • Temperature Range: -40° to +60°
Beam Patterns - Available with a range of beam patterns to effectively light up large open areas. The use of secondary optics means no loss of output on wider angles

Beam Patterns – Available with a range of beam patterns to effectively light up large open areas. The use of secondary optics means no loss of output on wider angles.

ATEX Bay LIGHT FITTINGS ZONE 1

Hazardous Area LED Lighting

Zone 1 hazardous area lighting products are manufactured in the UK by Raytec and are ATEX and IEC Ex approved and supplied with a 5 year warranty – a full family of ATEX lighting products includes SPARTAN Flood, Linear, Bulkhead, High Bay and Crane Floodlights for Zone 1.

ATEX Lighting

ZONE 1/21 ATEX, IEC EX & UKEX Mid Power Floodlight

ATEX Bay Light SPARTAN Bay



SPARTAN BAY Zone 1/21 Mid Power Bay Light MPBY
SPX-MPBY5K
SPX-MPBY5K-W-3030
SPX-MPBY5K-W-6060
SPX-MPBY5K-W-9090
SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay Beam patterns 30°x30°or60°x60°or90°x90°
SPX-MPBY7K5
SPX-MPBY7K5-W-3030
SPX-MPBY7K5-W-6060
SPX-MPBY7K5-W-9090
SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay Beam patterns 30°x30°or60°x60°or90°x90°
SPX-MPBY10K
SPX-MPBY10K-W-3030
SPX-MPBY10K-W-6060
SPX-MPBY10K-W-9090
SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay Beam patterns 30°x30°or60°x60°or90°x90°
SPX-MPBY12K5
SPX-MPFL12K5-W-3030
SPX-MPFL12K5-W-6060
SPX-MPFL12K5-W-9090
SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay Beam patterns 30°x30°or60°x60°or90°x90°
SPX-MPBY15K
SPX-MPBY15K-W-3030
SPX-MPBY15K-W-6060
SPX-MPBY15K-W-9090
SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay Beam patterns 30°x30°or60°x60°or90°x90°

spartan mid power flood bay

LIGHTING DESIGNS FOR HAZARDOUS AREAS

Upgrading Plant Legacy Lighting to LED

Thorne & Derrick | Specialist Distributors Hazardous Area Lighting, Electrical & HVAC Products | ATEX, IECEx & UKEx

➡ Should you require any technical support, product selection guidance or a lighting design utilising the SPARTAN range of lighting for Explosive Atmospheres please do not hesitate to contact us – we can assist in the upgrade of your lighting system from conventional fluorescent to modern technology, energy-efficient and sustainable LED type fittings.

Raytec SPARTAN Lighting, including SPX-MPFL ATEX Floodlight range, is designed for lighting hazardous areas which require high performance, high reliability, White-Light illumination using LED technology – ATEX Certified Zone 1 & Zone 2.

Hazardous Area Lighting Design
