ATEX Gas Bottle Heater | WEXHB

Hazardous Area Gas Cylinder Heater

ATEX gas bottles heaters are used for protection against frost, temperature maintenance and process heating* in the temperature range from -40 °C to +50 °C. A gas bottle heater is useful when extracting and processing gases. The gas cylinder heaters have protection class IP 65 and are ATEX certified.

*Note: Please consider the technical rules TRG 310 / TRBS 3145 / TRGS 745. Maximum operating temperature 50 °C (cylinder temperature).

Together with Winkler, Thorne & Derrick can offer a wide range of gas bottle heaters with ATEX certification for safe use in potentially explosive atmospheres, including Zone 1 & Zone 2 hazardous areas.

Depending on the application, different amounts of heat are introduced to keep the contents at an optimum processing temperature. The robust design and high quality materials and components ensure a safe and reliable operation of the gas bottle heating jackets.

Contact us to discuss the initial concept, agree a bespoke design, start manufacture and deliver on short lead times to support your Winterisation measures to prevent cold-weather damage to your critical process assets .

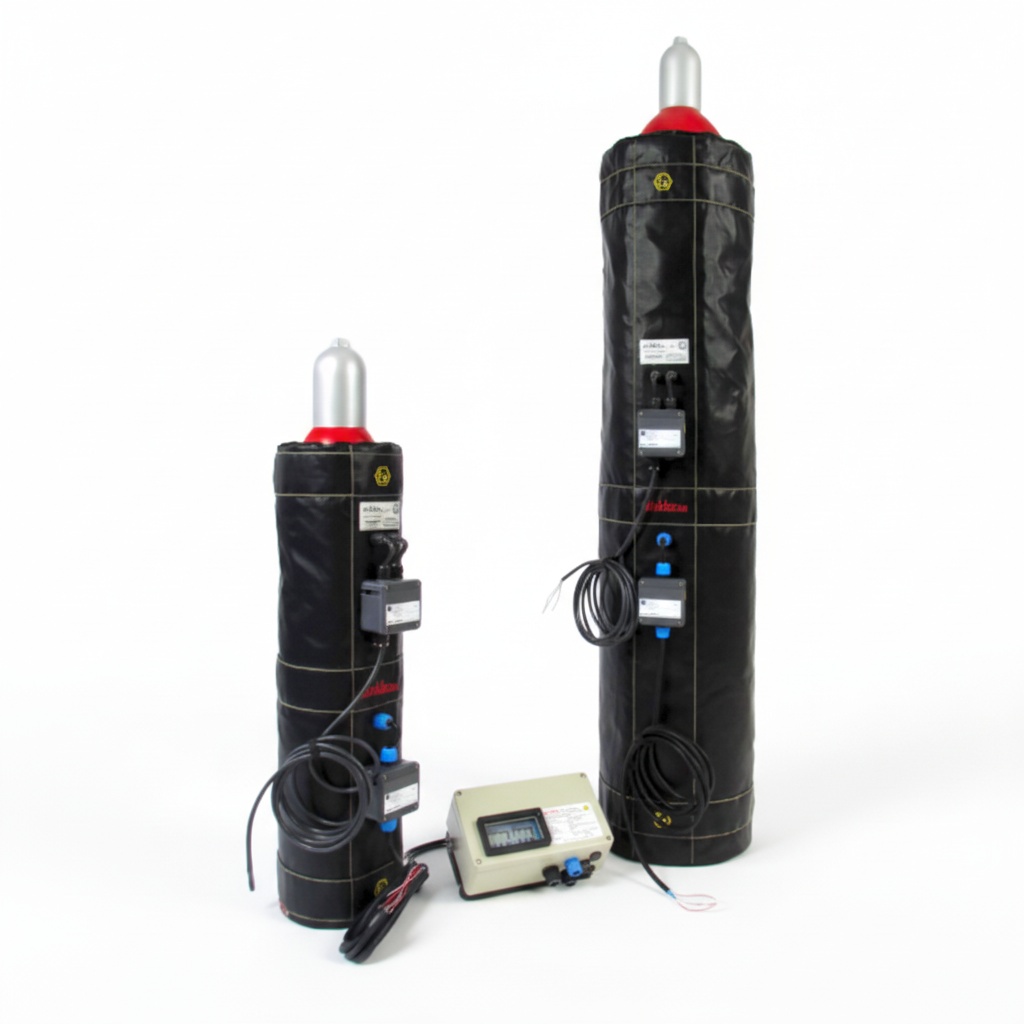

ATEX Gas Bottle Heaters (WEXHB010,WEXHB050) with controller limiter (WEXRBL25)

WEXHB Series of ATEX Gas Bottle Heating Jackets

Features

Robust, flexible and dissipative construction for indoor and outdoor use
Standard and customer-oriented solution – the heating jacket is customized according to the required gas bottle dimensions
System-approved with an EC-type examination certificate according to RL 2014/34/EU appendix III
Extensive documentation for the explosion protection document according to §6 para. 9 of the German Ordinance on Hazardous Materials (GefStoffV)
Ambient temperatures from -40 °C to + 60 °C
Protection class: gas IP65
Temperature class: T6, T5, T4, T3
Delivered completely configured and ready to use immediately without further acceptance procedures

Explosion protection marking

Gas II 2G Ex e mb IIC T3 Gb
Dust II 2D Ex e mb IIIC T120°C Db
-40°C ≤ Ta ≤ +60°C (ambient temperature)
EC-type examination certificate – TPS 11 ATEX 29587 011 X

ATEX gas bottle heater (40L) with hook-and-loop fasteners (WEXHB041)

Technical Specification | Series WEXHB

Nominal Voltage	230 VAC *
Nominal Power	380W; 850W; 850W (10L, 50L, 79L) or application specific
Max. Operating Temperature	+50/60°C (jacket max. 200 °C)
Temperature Class	T6, T5, T4, T3 (depending on temperature setting limiter)
Electrical Connection	Terminal boxes for network (EX-e) / sensor (EX-i)
Protection Degree / Protection Class	IP65 / I
Zones	1/2 (gas); 21/22 (dust)
Sensor Pt100 (EX-i, EX-e)	standard: 2 optional: 3 (SIL3), 4, 5…
Weight	6 kg, 9.5kg, 10kg (10L, 50L, 79L)
