ATEX Industrial Heating Jacket | Series WHI

Hazardous Area Heating Jackets

The WHI Series of industrial heating jackets specifically designed for use in potentially explosive atmosphere and employed in many areas in the pharmaceutical, chemical and metal recycling industry.

Together with Winkler, Thorne & Derrick can offer ATEX industrial heating jackets that are manufactured project specific and can be tailored to meet your requirements. The ATEX industrial heating jackets are suitable for zones 1/2 (gas) and 21/22 (dust) of the hazardous area.

Contact us to discuss the initial concept, agree a bespoke design, start manufacture and deliver on short lead times to support your Winterisation measures to prevent cold-weather damage to your critical process assets .

---

---

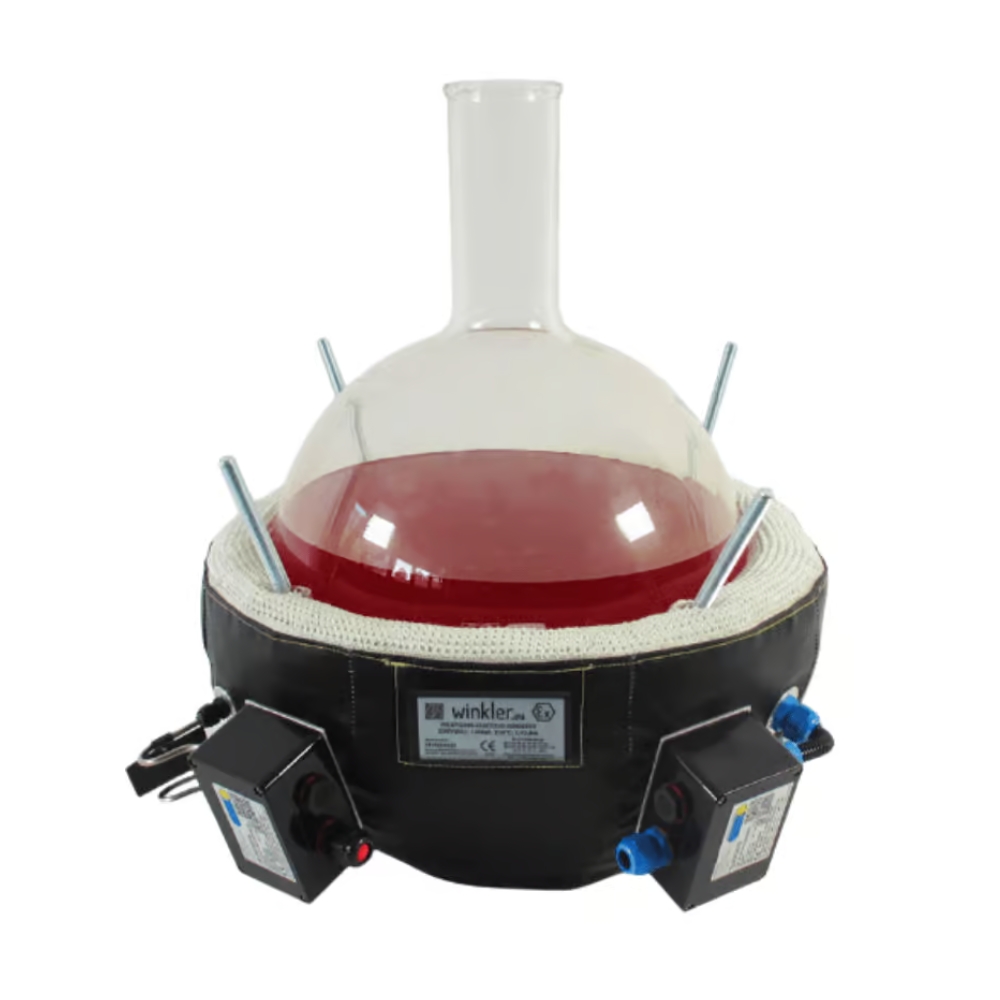

WHI SERIES OF ATEX Industrial Heating Jacket

FEATURES

• Heating using explosion-proof mineral insulated heating cable
• Heating cable is secured with mounting clips to the carrier basket to prevent shifting
• Protection class IP65
• Zones 1/2 (gas), 21/22 (dust)
• Four eyebolts (M12, L=100 mm) for mounting the heating jacket
• Outer jacket made of antistatic black PTFE material with a high chemical and mechanical resistance
• ATEX terminal boxes (power and sensors) fixed on the outside
• Two built-in PT100 temperature sensors (for controller and limiter)
• Extensive documentation for the explosion protection document according to §6 para. 9 of the German Ordinance on Hazardous Materials (GefStoffV)
• Two built-in PT100 temperature sensors
• Max. operating temperatures 450 °C
• Temperature class: T6, T5, T4, T3, T2, T1
• Extensive documentation for the explosion protection document

EXPLOSION PROTECTION MARKING

• Gas II 2G Ex eb IIC T6…T1 Gb
• Dust II 2D Ex tb IIIC T450°C Db
• EC-type examination certificate
  MI Heating Cable – BVS 12 ATEX E 041 U
  Terminal Boxes – EPS 09 ATEX 1 237
  PT100 Sensor – SEV 13 ATEX 0197

---

TECHNICAL SPECIFICATION | SERIES WHI

Nominal Voltage	230 VAC 1
Max. Operating Temperature	+450 °C
Temperature Class	T6…T1
Electrical Connection	Terminal boxes for network (EX-e) / sensor (EX-i)
Protection Degree / Protection Class	IP65 / I
Zones	1/2 (gas); 21/22 (dust)
Sensor Pt100 (EX-i) (optional EX-e)	standard: 2 optional: 3, 4, 5…
Heating zones 2	1 heating zone: 10 l/ 20 l /50 l 2 heating zones: 100 l/ 200 l

1 Other nominal voltage upon request
2 More heating zones upon request

Volume 3	Flask ∅	Power	Base opening ∅
10 l	280 mm	1250 W	standard: 60 mm to be specified if non-standard
20 l	350 mm	2000 W
50 l	490 mm	3500 W
100 I	610 mm	5000 W
200 I	750 mm	6000 W

Important Note:

The outer diameter of the glass flask may vary depending on the manufacturer. The outer diameter of the glass flask must correlate with the inner diameter of the heating jacket, otherwise it will not sit properly and may be damaged. Use only temperature control devices certified and approved for ATEX Zones. An earth leakage circuit breaker (RCD/ELCB) should be used in the electric circuit to which the heating jacket is connected.

---

The industrial heating mantles provide homogeneous heating, preventing cold spots and increasing process stability. They feature a user-friendly design, facilitating installation and maintenance.

• For 10L / 20L / 50L glass flasks
• Outer diameter 280 mm / 350 mm / 490 mm
• One heating zone

• For 100L glass flasks
• Outer diameter 610 mm
• Two heating zones

• For 200L glass flasks
• Outer diameter 750mm
• Three heating zones
