HF5-D High Temperature Drum Heating Jacket | Heatfast Drum Heaters
High Temperature Drum Heating Jacket HF5-D | Heatfast Drum Heaters
Product Code: Heatfast HF5-D

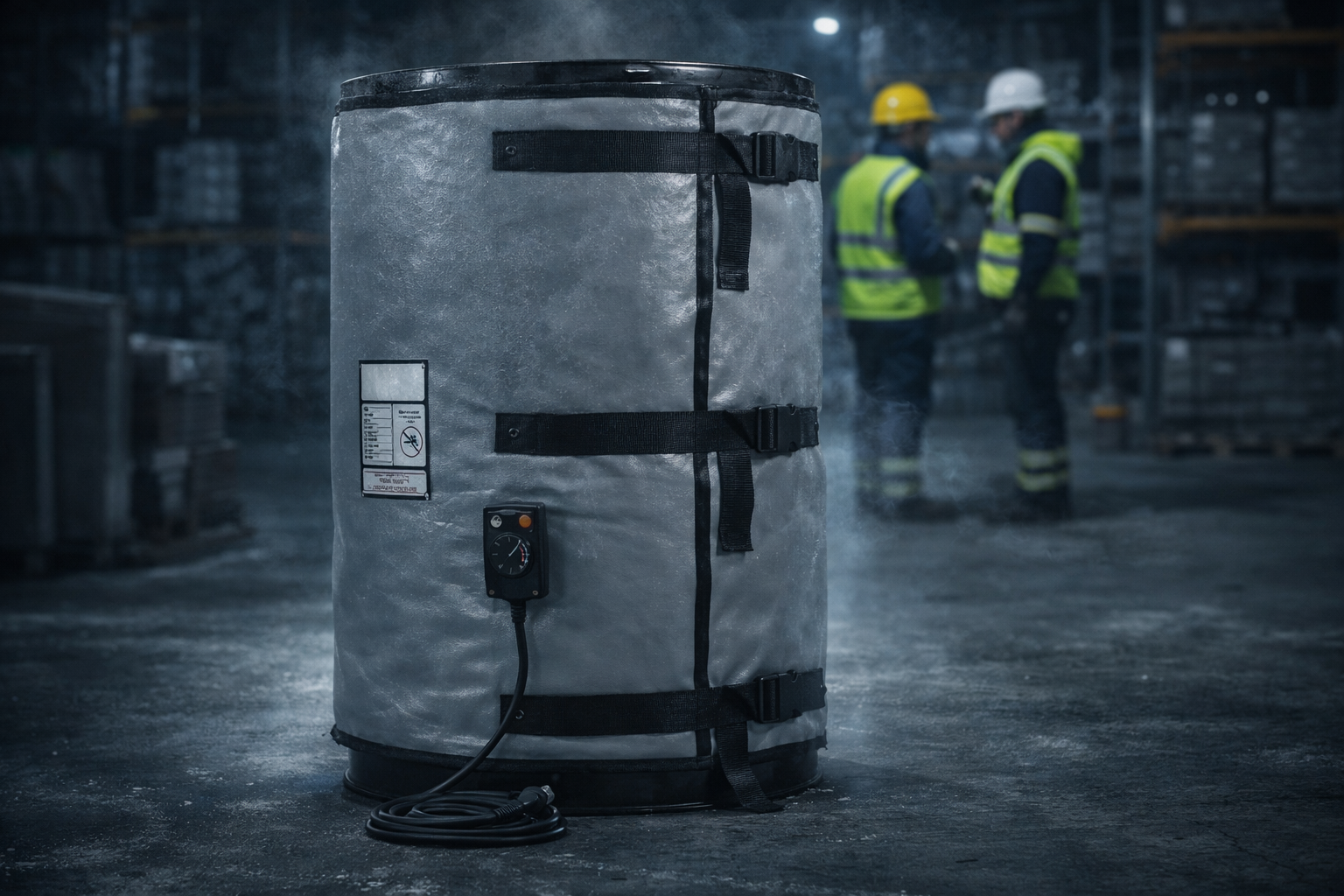

Heatfast’s High Temperature Drum Heating Jacket HF5-D is a heavy-duty electric drum heater engineered for aggressive heating applications requiring elevated operating temperatures. Designed specifically for steel drums and available in sizes from 25 to 210 litres, the HF5-D range delivers powerful, uniform surface heating for melting, viscosity reduction and high-temperature product conditioning of oils, fats, soaps, varnishes and other thermally demanding materials. Featuring a silicone coated glass fibre construction, insulated design and an adjustable high-temperature thermostat up to 200°C, the HF5-D provides a safe, reliable and energy-efficient solution for industrial processes where standard drum heaters are not sufficient.
GO TO DOWNLOADSProduct Overview

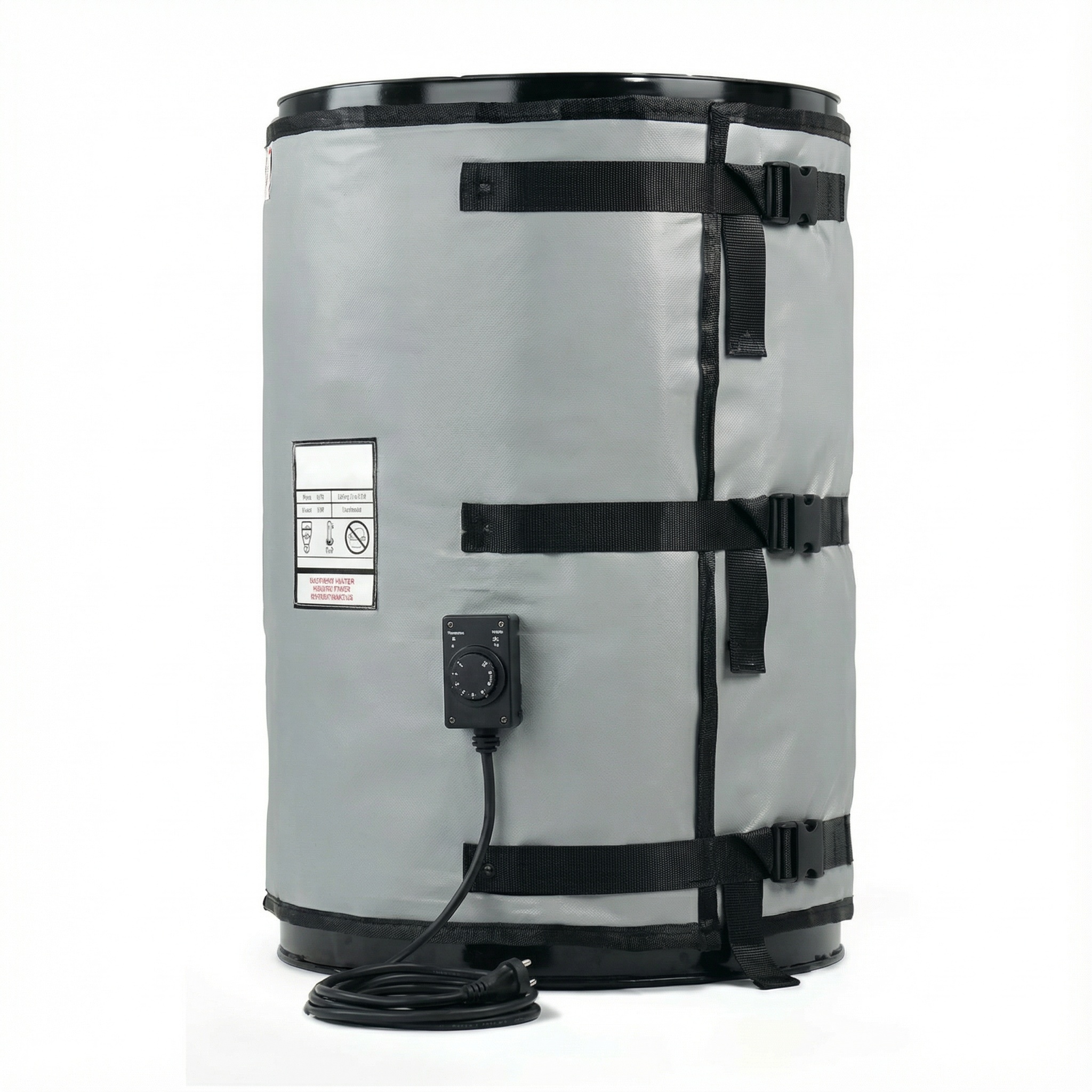

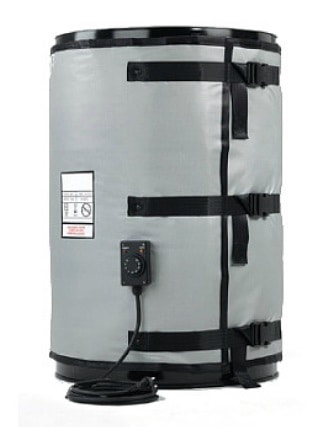

The Heatfast High Temperature Drum Heating Jacket HF5-DÂ is a specialist electric drum heater developed for industrial applications where significantly higher heat input is required to process temperature-resistant materials. Designed for use on steel drums, the HF5-D range provides intensive, evenly distributed surface heating for products that demand elevated temperatures to remain workable, including soaps, fats, varnishes, oils and other high-viscosity substances.
Unlike standard drum heating jackets intended for gradual warming, the HF5-D is engineered for high temperature drum heating, incorporating a silicone coated heating element stitched into an insulated silicone coated glass fibre jacket. This construction allows efficient heat transfer directly into the drum wall while maintaining safe external surface temperatures. Available in standard sizes from 25 litres to 210 litres with power outputs up to 1800W, the HF5-D delivers consistent, high-performance heating where rapid heat-up and sustained operating temperatures are essential.

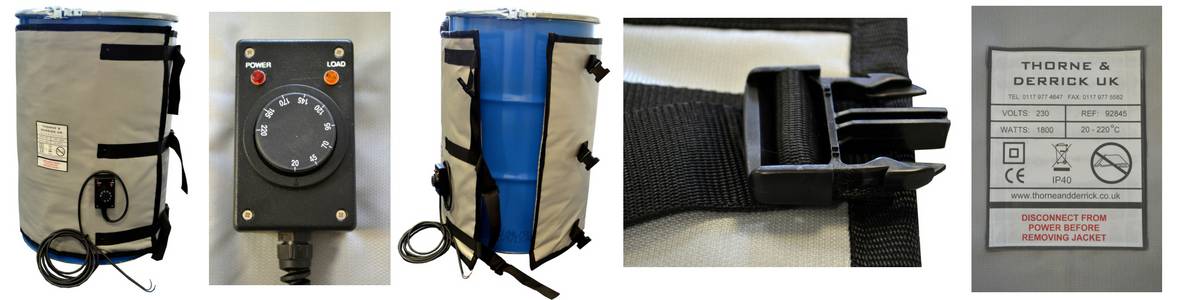

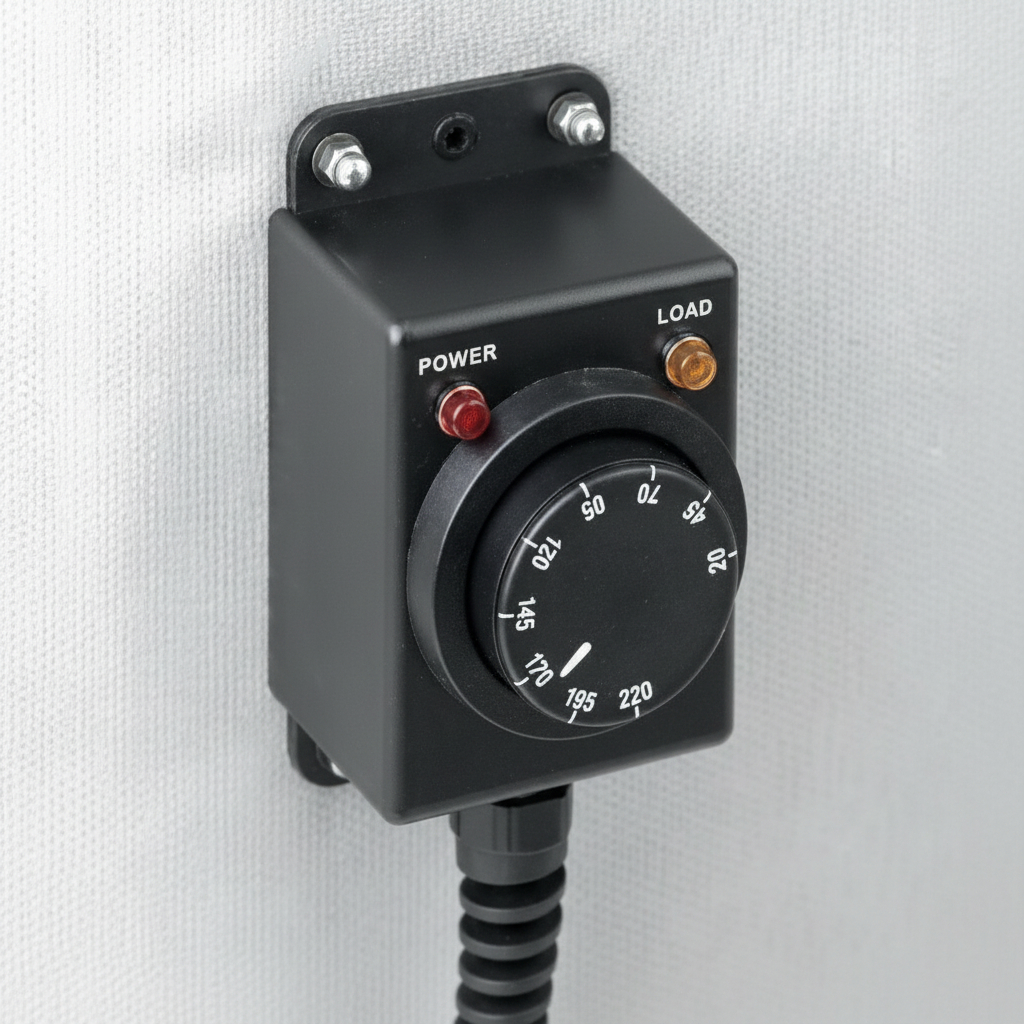

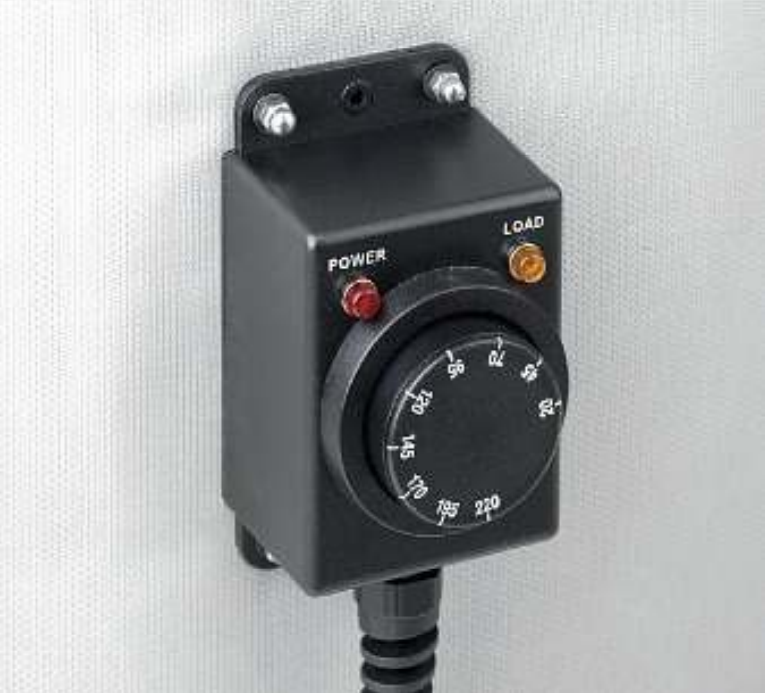

Each HF5-D high temperature drum heating jacket is fitted with an adjustable high-temperature thermostat offering control ranges up to 220°C, making it suitable for aggressive heating duties that exceed the capability of conventional drum heaters. The jacket is fully insulated using an E-glass fibre blanket and secured using robust, adjustable quick-release buckles for fast installation and removal. Supplied as a Class II double insulated heater with a durable 4-metre H07RN-F power cable, the HF5-D provides a reliable and safe solution for demanding industrial drum heating applications.
Contact our trusted experts – place an order or find out more about the Heatfast High Temperature Drum Heating Jacket for your operations. Thorne & Derrick International, based in the UK, are the leading stockists and suppliers of Electric & Process Heating & Heat Trace, providing technical advice, quotations and fast worldwide delivery for both UK & export projects.
Technical Specifications
Key Benefits
✔ High-performance High Temperature Drum Heating Jacket designed for aggressive heating applications
✔ Purpose-built for steel drums and metal containers requiring elevated process temperatures
✔ Delivers rapid and uniform surface heating to melt solids and significantly reduce viscosity
✔ Capable of maintaining process temperatures up to 220°C with stable thermal performance
✔ Available in standard sizes from 25L to 210L to suit common industrial drum formats
✔ Fitted with a high-temperature adjustable thermostat (0–120°C or 20–220°C options)
✔ Higher power ratings up to 1800W for fast heat-up of high thermal mass products
✔ Constructed using silicone coated glass fibre fabric for excellent heat transfer
✔ Insulated with a high-density E-glass fibre blanket to minimise heat loss
✔ Integrated silicone insulated spiral wound heating element for reliable long-term performance
✔ Class II double insulated construction compliant with European safety standards

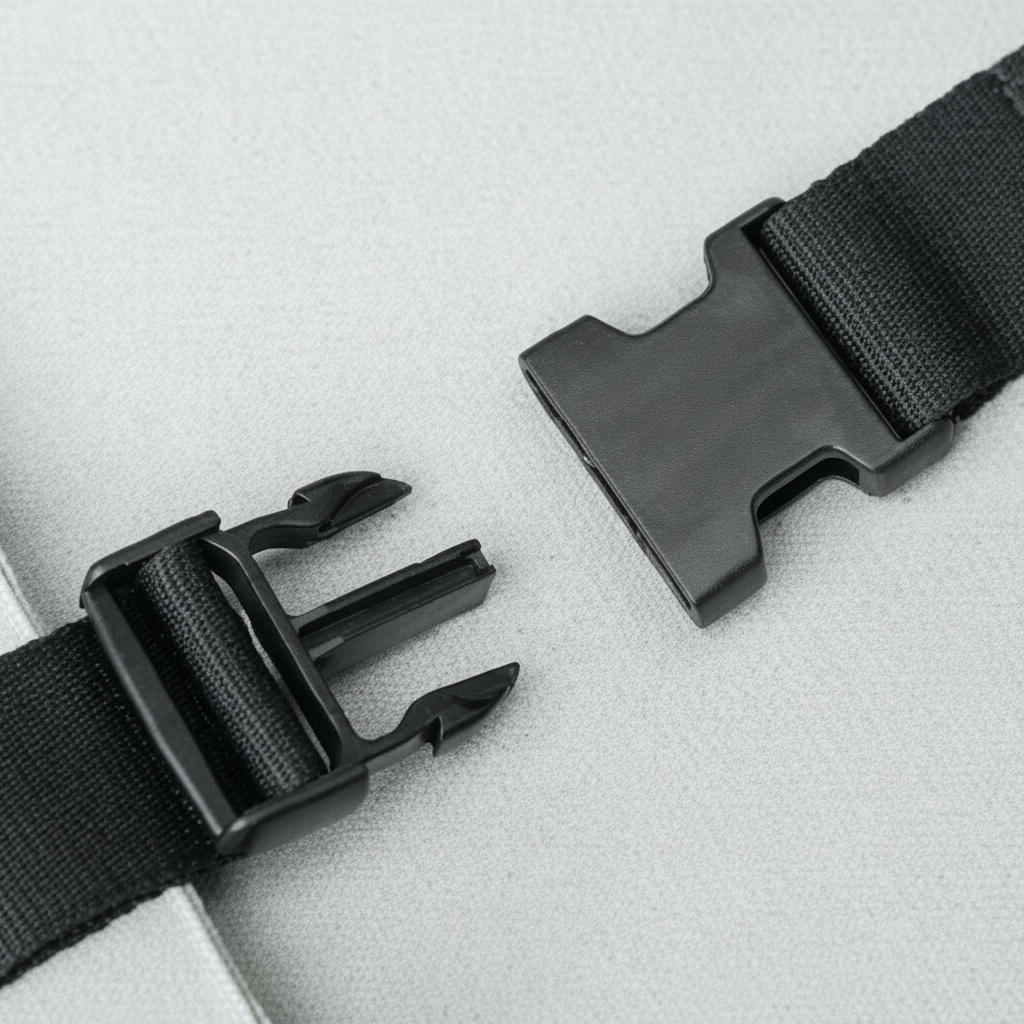

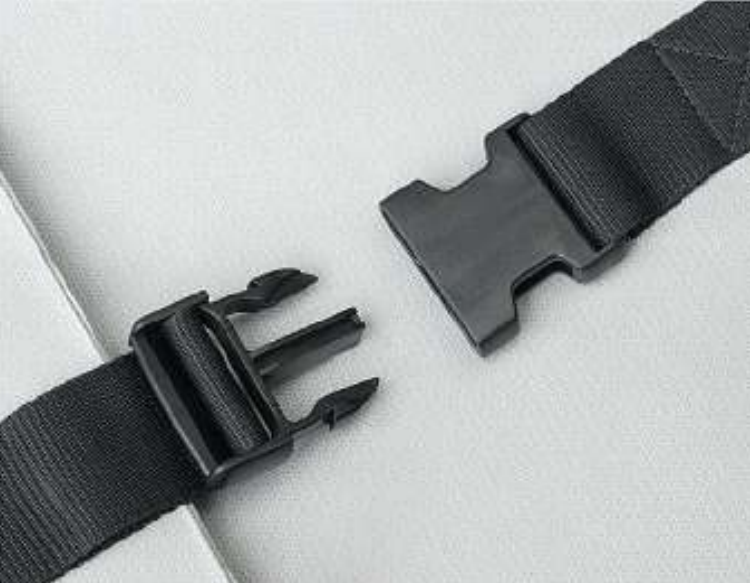

✔ Adjustable quick-release buckles allow secure fitting and fast installation or removal
✔ Supplied ready for use with a robust 4 metre H07RN-F rubber power cable
✔ Ideal for high-temperature processing of soaps, fats, waxes, varnishes and oil-based materials

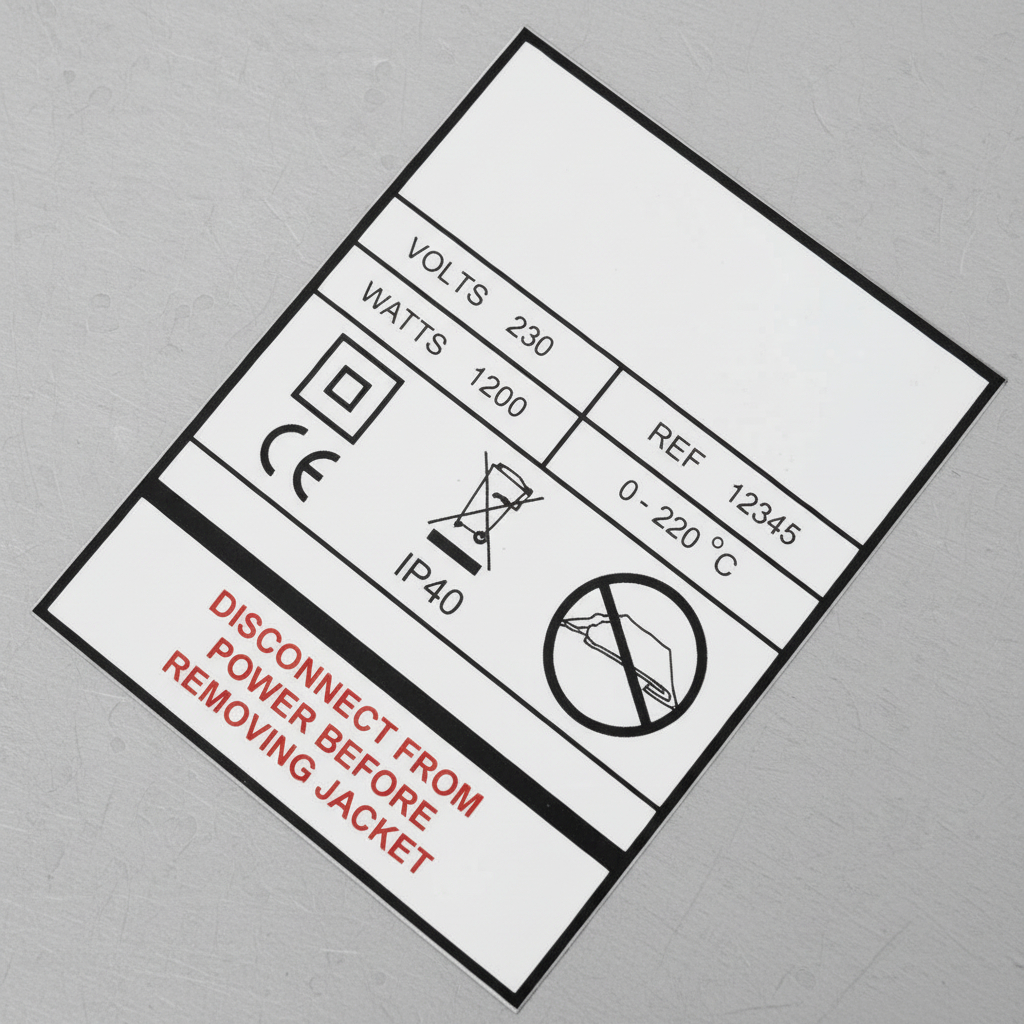

✔ Bespoke jacket sizes, wattages and branded finishes available for specialist applications
Applications
✔ High temperature drum heating for melting or softening waxes, fats, greases and solidified products
✔ Rapid viscosity reduction of soaps, varnishes, oils and resin-based materials requiring elevated heat
✔ Pre-heating of drums prior to pumping, decanting or processing in industrial systems
✔ Heating of high thermal mass materials that cannot be effectively warmed using low-temperature jackets
✔ High temperature maintenance of liquids and semi-solids during production downtime
✔ Drum heating for paint, coatings, inks and varnish manufacturing processes
✔ Chemical processing applications requiring stable, elevated drum temperatures
✔ Heating of oil-based and solvent-based products for improved flow and handling
✔ Industrial manufacturing environments where aggressive heat-up is required
✔ Production facilities requiring repeatable, high temperature drum conditioning
✔ Any application requiring safe, efficient high temperature drum heating up to 200°C
