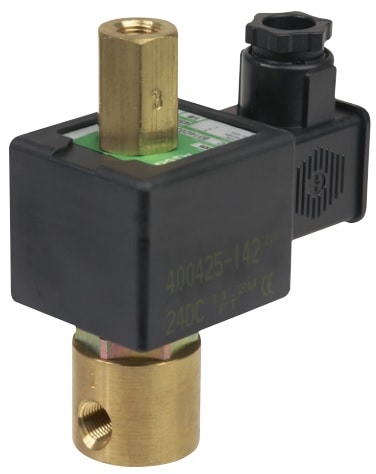

ASCO 314 Solenoid Valves – 1/4, Brass & Stainless Steel, Top Exhaust Pilot Valve

ASCO 314 solenoid valves are 3 way direct operated pilot valves.

ASCO 314 Solenoid Valves features

• Brass and stainless steel solenoid valve types
• Three way solenoid valves direct operated with top exhaust
• Solenoid valves handle high pressure 3-way applications
• No minimum operating pressure required for valve
• Differential Pressure : 0 – 20 bar [1 bar = 100kPa]
• Maximum Viscosity : 65cST (mm²/s)
• Response Times : 5-25 ms

ATEX & IECEx valves are available using ASCO 314 solenoids approved to EN 13463-1 for hazardous area applications.

For complete specification, fluid compatibility, valve selection guide and ordering examples for ASCO 314 solenoid valves please refer to the download.

SOLENOID VALVES

EXPLANATION OF TEMPERATURE RANGE

Valve Temperature Range : the temperature range (TS) of the solenoid valve is determined by the selected sealing material, the temperature range for proper operation of the valve and according to the fluid (eg steam).

Operator Ambient Temperature Range : determined by power level and safety code.

Total Temperature Range : the total temperature of the solenoid valve is determined by both the limitations of the above.

➡ Did you know? T&D are Approved Channel Partners for ASCO Numatics ATEX & IECEx certified solenoid valves for Class I, Division 2 and Zone 1 & Zone 2 hazardous areas.

Data Sheets

• ASCO 314 Solenoid Valves – 1 4, Brass & Stainless Steel, Top Exhaust Pilot Valve Data Sheet
  Download
