ATEX Solenoid Valves | Hazardous Area Zone 1 & Zone 2 Valves

ATEX Solenoid Valves

Solenoid Valves With Hazardous Area Approvals – ATEX, IECEx, INMETRO, NEPSI & GOST

Solenoid Valves

ATEX Certified for Hazardous Areas

Thorne & Derrick are Authorised Stockists and Official Emerson ASCO Partners for their ranges of ATEX certified solenoid valves for hazardous area locations – contact our Technical Sales Engineers now for immediate price and delivery for both UK and Export orders and enquiries.

ASCO are the leading manufacturer of hazardous area solenoid valves suitable for use in ATEX rated Zone 1 and Zone 2 hazardous areas.

ASCO solenoid valves for hazardous area zones are used to control critical flow of water, air, gas, oil and steam providing excellent stability, increasing up-time and ensuring the highest levels of productivity.

Solenoid valves are key components for process automation systems and users depend on these to operate without fail in hazardous areas or explosive atmospheres to ensure continuous and safe operation of the process and plant.

➡ See ASCO solenoid valves for the complete range of flow control valves for air, gas, water, oil, and steam.

hazardous area Solenoid Valves

Zone 1 & Zone 2 atex certified

Hazardous Area Valves



The range of ASCO valve options for use in hazardous areas includes:

Corrosion resistant 316L stainless steel valves for harsh environments, low power intrinsically safe and non-incendive field wiring solenoid valves with low temperature constructions down to -50°C are also available.

With a wide range of valves covering most major hazardous area classifications, the full range of ATEX valves includes:

ASCO Explosion Proof Encapsulated Coil Valves ATEX Certified
ASCO EV 8314ASCO EV 8316ASCO EV 8317ASCO EV 8320ASCO EV 8327ASCO EV 8344ASCO EV 8551


ASCO Intrinsic Safety Valves ATEX Certified


ASCO Explosion Proof Enclosure Valves ATEX Certified
ASCO Harsh Environment 8320ASCO NF/WSNF 8316ASCO NF/WSNF 8320ASCO NF/WSNF 8327ASCO NF/WSNF 8551
Hazardous Area Valves - Zone 1 Zone 2 ATEX Solenoid Valves

For expert technical support in Hazardous Area Valve selection, just call T&D.


Low Power & intrinsically Safe Hazardous Area Solenoid Valves

Molded one piece valves with highly efficient solenoid cartridges and special low wattage coils – these valves are designed for use in the automation of plant control systems to provide PLC compatibility and reduced battery drain.

Selecting & Ordering The Correct Solenoid ValveATEX

When ordering solenoid valves, there are a number or checks and information that should be carried out prior to purchase in order to ensure the correct valve is chosen for the specific application.

When selecting a valve the following information should be known:

  • Valve Type – Whether a 2 way, 3 way or 4 way valve is required
  • Operation – Will the valve be normally open, normally closed or universal
  • Pipe Size – The pipe size or flow requirement
  • Media – The fluid to be controlled and measured
  • Pressure – The minimum and maximum operating pressures
  • Temperature – The minimum and maximum fluid and ambient temperatures
  • Voltage – Voltage and frequency to be used
  • Extras – Special seals, special seats, brackets, etc.
  • Hazardous Area Location – Class/Division or Zone requirement for potentially explosive atmospheres

With over 50,000 different valves in the range available from ASCO , T&D can offer a solution for almost every industry application and fluid control requirements.

ASCO Valves - Fast Ship

environmental operating conditions & key considerations

When selecting a solenoid valve there are many environmental and application conditions to consider including body and solenoid housing materials, seal materials and air quality.

Quality of air – the sensitivity of inferior air quality depends on both the valve and solenoid type: ASCO solenoid valves do not require lubrication. To ensure the quality of air is acceptable, air service equipment is recommended to prepare the air prior to be applied to the control system.

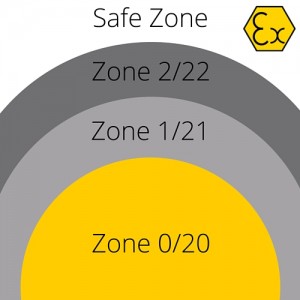

Categories/ zone classification – apparatus used must be certified for the Zone, Class/Divsion and hazardous area location into which the valve is to be installed.

ASCO Solenoid Valves Are Often Used Throughout Refineries In The Oil And Gas Industry

ASCO Solenoid Valves Are Often Used Throughout Refineries In The Oil And Gas Industry

Hazardous Area Solenoid Valves In The Oil And Gas Industry

The oil and gas industry naturally has many areas or Zones that are potentially explosive with hazardous area locations classified as constantly hazardous where the threat from hazardous gases or dusts is ever present. For over 60 years, ASCO have manufactured dependable valves and actuation products for critical points throughout the oil and gas production industry.

ASCO 3 and 4 way pilot valves are the most varied, proven and reliable solenoid pilot valves, typically installed throughout the plant as the primary device for process valve actuation as well as the shutdown valve.

ASCO manual reset valves are manufactured from corrosion resistant materials and their industrial strength components make them ideal for the oil and gas industry and the harsh conditions faced.

Actuated global valve assemblies are a cost effective alternative to an actuated ball valve assembly and this linear on/off valve is a stand alone solution for a variety of applications.

ASCO filters and regulators treat air quality and regulate pressure throughout plant pneumatic systems. These valves are used throughout the refinery in order to control pressure and meet filtration requirements.

These high performance flow control products are available in many configurations and materials including full 316L stainless steel for use in corrosive environments.

From the contractor and design engineers through to refinery instrumentation, process control, safety and maintenance engineers, ASCO valves offer the performance and reliability required for products used in hazardous area industries.

The range of ASCO safety application valves have the ability to perform online testing of redundant solenoids and automatic partial stoke testing of the process valve.

Hazardous Area Valves

Discuss Your Hazardous Area Valve Requirements With T&D | ATEX Specialists

➡ For further information, specification and ordering details about Hazardous Area Solenoid Valves please refer to the product sections below.
