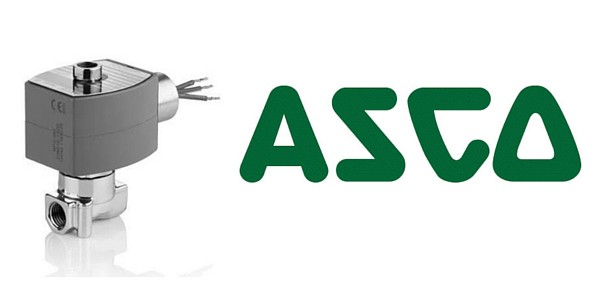

ASCO JPIS 8314 Intrinsic Safety ATEX Solenoid Valve
ASCO JPIS 8314 intrinsic safety valves are part of the hazardous area solenoid valve range suitable for use in ATEX Zone 1 and Zone 2 hazardous area applications.
The JPIS 8314 has an original 3-way valve design and is the simplest valve for the typical 3-way piloting operation (only a spring and two moving parts). The valve has moderate flow pilots, smaller control valves and actuators.
There is no minimum operating pressure required for the valve to function, can be used for low-volume fluid diversion and offers a high speed general service.
The nominal ambient working temperature ranges for the ASCO JPIS 8314 hazardous area solenoid valve are -25˚C to 55˚C (-13˚F to 131˚F).
ASCO JPIS 8314 SOLENOID VALVE HAZARDOUS AREA CERTIFICATIONS
CSA UL FM ATEX IECEX
ASCO Valve Series | Type | Pipe Size (in) | Max. Cv (Kv) | |||
ASCO JPIS 8314 | 3-Way Valve | 1/4 | 0.6 (.05) | ✓ | ✓ | ✓ |
Contact T&D for copy hazardous area certificates.
HAZARDOUS AREA CLASSIFICATION FM10ATEX0015X
II 1 G Ex ia IIC T6 Ga under FM10ATEX0015X
HAZARDOUS AREA CLASSIFICATION IECExFMG10.0008X
IECEx approved for: Ex ia IIC T6 Ga under IECExFMG10.0008X
ASCO JPIS 8314 HAZARDOUS AREA SOLENOID VALVE CONSTRUCTION
Valve Parts In Contact With Fluid | ||
Body | Brass | Stainless Steel |
Seals and Discs | NBR | |
Core Tube | 305 Stainless Steel | |
Core and Plugnut | 430F Stainless Steel | |
Core Springs | 302 Stainless Steel | |
Shading Coil | Copper | Silver |
Core Guide | CA |
HAZARDOUS AREA VALVES
ASCO solenoid valves provide flow control in hazardous area industries including oil, gas, petrochem, mining, power and process industries to ATEX (European), IECEx (International), CSA (North America), UL (United States & Canada), NEPSI (China), INMETRO (Brazil) and TR CU (Russia) approvals.
• Standard 3-way and 4-way solenoid valves
• Direct-acting and pilot-operated solenoid valves
• Manual reset and NAMUR valves
• Rugged 316L stainless steel valves for harsh environments
• Low Power Intrinsically Safe and Non-Incendive valves
• Low temperature solenoid valves down to -58°F (-50°C)
