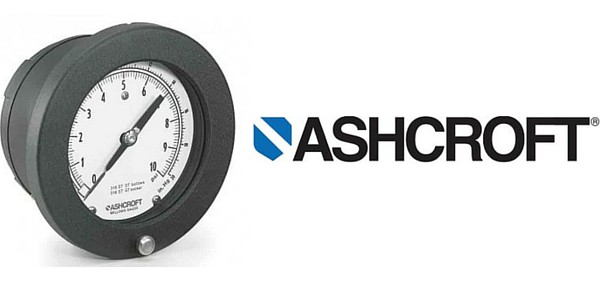

Ashcroft 1187 Low Pressure Bellows Gauge
Process Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.
Ashcroft 1187 Low Pressure Bellows Gauge is used throughout process and industrial markets globally when low pressure measurement is necessary and is known for it’s reliability, performance and safety.
The Ashcroft 1187 pressure gauge has been designed to have a highly sensitive system and ideal features for measuring process media.
Ashcroft 1187 Pressure Gauge – Applications
- Oil & Gas
- Chemical & Petrochemical Plants
- Water and Wastewater Pressure Control
The Ashcroft 1187 pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.
Ashcroft 1187 Pressure Gauge – Features
- Inches of water ranges
- Bronze, 316 stainless steel or monel wetted parts
- Available with diaphragm seals
Ashcroft 1187 Low Pressure Bellows Gauge – Product Specifications
| Ashcroft Model Number | Ashcroft 1187 |
| Accuracy | 2%-1%-2% ASME Grade A |
| Ranges | 10/IW Vac to 10 psi |
| Dial | 41⁄2˝ (45) White Alum. with Black Markings |
| Window | Standard: laminated safety glass Optional: acrylic |
| Pointer | Micrometer Adjustable |
| Movement | 416 SS |
| Bourbon Tube & Socket | Brass, 316SS, Monel Joints soldered |
ASHCROFT 1187 – HOW TO ORDER
Here is a typical ordering example for an Ashcroft 1187 pressure gauge – for technical support, specification and sales contact T&D.
Ashcroft Gauge 45-1187-S-04L-XSG-100#
- Gauge Dial Size : 4 1/2″ (45)
- Case Type Number : 1187 (1187)
- Tube and Socket Material : (S)
- Connection Size/Location : 1 ⁄4 male (02) Black (B) only (04L)
- Option : (XSG)
- Gauge Range : 100 psi (100#)
Pressure Gauges – Ashcroft process gauges can be used to measure pressure on fire protection sprinkler pipework systems.
