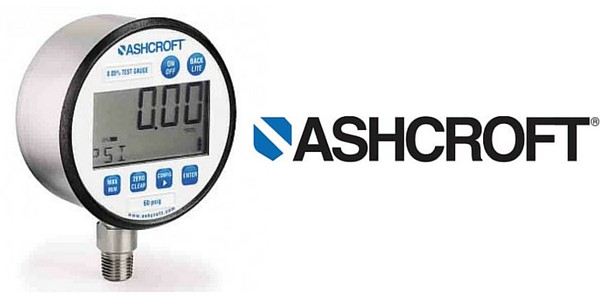

Ashcroft 2084, 2086 and 2089 Digital Test Gauge
Digital Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.
Ashcroft 2084, 2086, and 2089 digital test gauge range is used throughout process and industrial markets globally and is an ideal option when highly-reliable precision is required.
The Ashcroft 2084, 2086, and 2089 digital test gauge range has been designed with full scale total error which includes effects of linearity, hysteresis, repeatability and temperature from 0 to 150°F.
Suitable for Test Instrumentation users as this digital test gauge uses Silicone MEMS sensor technology that is able to provide accuracy and stability.
Ashcroft 2084, 2086 and 2089 Digital Test Gauge – Applications
- Test bench / Gauge Repair Facilities
- Calibration Laboratories
- Mobile Calibration Labs
- Test Measurement and Validation
The Ashcroft 2084, 2086, and 2089 digital test gauge range should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.
Ashcroft 2084, 2086 and 2089 Digital Test Gauge – Features
- Temperature compensated from 0 to 150°F (-18-60° C)
- Three accuracy levels (0.05%, 0.1% and .025%)
- 12 engineering units
- 7 different languages
- Field recalibration
- Battery powered
- Includes stainless steel cover and padded carry case
Ashcroft 2084, 2086 and 2089 Digital Test Gauge – Product Specifications
| Ashcroft Model Number | Ashcroft 2084, 2086, and 2089 |
| Type | 2089 (0.05% F.S. accuracy), 2086 (0.10% F.S. accuracy), 2084 (0.25% F.S. accuracy) |
| Accuracy | 0.05%, 0.10% or 0.25% all Full Scale, Terminal Point, Total Error Band (TEB) Including Hysteresis, Linearity, Repeatablilty and Temperature (0/150°F) |
| Ranges | Vac. thru 7000 psi (see engineering units below for other units of measurement) Non-cataloged available ranges on application. |
| Case | Available with Optional Protective Rubber Boot |
| Case Size | 3˝ |
| Case Material | 300 Series Stainless Steel |
| Case Rating | Weatherproof, IP65, NEMA 4 |
| Socket Size | 1⁄4 NPT Male, JIS, DIN, SAE, (others on application) |
| Socket Location | Lower (6 o’clock) 3 and 9 o’clock |
| Mounting | Stem (standard), Panel (optional) |
ASHCROFT 2084, 2086 and 2089 – How To Order
Here is a typical ordering example for an Ashcroft 2084, 2086 and 2089 pressure gauge – for technical support, specification and sales contact T&D.
Ashcroft Gauge 30-2089-SD-02L-100#
- Gauge Dial Size : 3″ (30)
- Case Type Number : 2089 (2089)
- Wetted Parts : 316L SS (SD)
- Connection Size/Location : 1/4″ NPT Lower (02L)
- Gauge Range : 100 psi (100#)
Pressure Gauges – Ashcroft digital gauges can be used to measure pressure on fire protection sprinkler pipework systems.
