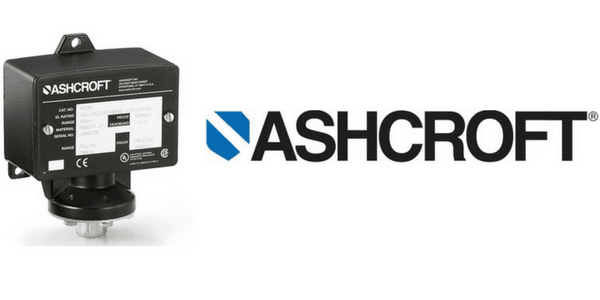

Ashcroft NPA-Series NEMA 4 Pressure Switch
Ashcroft NPA-Series NEMA 4 pressure switches are designed for pressure control in harsh applications needing high cycle rates functionality.
The Ashcroft NPA-Series NEMA 4 pressure switch has been designed to be customised as an ideal solution for this type of pressure measurement.
Ashcroft NPA-Series NEMA 4 Pressure Switch – Applications
- Machine Tools
- Injection Molding Machines
- Presses
- Pumps
- Turbines and Compressors
- Specialized OEM Equipment
- Pipelines
- Hydraulic Systems
- High-Cycling
The Ashcroft NPA-Series NEMA 4 is ideal for use with pressure control, shutdown or alarm operations
Ashcroft NPA-Series NEMA 4 Pressure Switch – Features
- Multi-turn potentiometers allow easy setpoint and deadband adjustments
- Switch status indication
- SPDT 10 amp relay
Ashcroft NPA-Series NEMA 4 Pressure Switch – Product Specifications
| Ashcroft Model Number | Ashcroft NPA-Series NEMA 4 |
| Setpoint | Single |
| Accuracy | ±0.50% full scale |
| Enclosure | NEMA 3, 4, 4X and 13 (IP66); aluminum enclosure |
| Pressure Ranges | 60 to 20,000 psi |
| Stability | ±0.5% F.S./year non-cumulative |
| Durability | 108 cycles 20/80% F.S. with negligible performance change |
| Response time | Less than 5m sec |
| Temperature Limits | Storage –65/+250°F Operating –20/+180°F Compensated –20/+160°F |
| Output Signal | 4-20mA (2 wire) |
| Supply Voltage | 36 Vdc unregulated |
ASHCROFT NPA-SERIES NEMA 4 – How To Order
Here is a typical ordering example for an Ashcroft NPA-Series NEMA 4 pressure switch – for technical support, specification and sales contact T&D.
Ashcroft Switch N P A N 4 D L S 0 1 X E A 30 PSI
- Function : Single setpoint, adjustable deadband (NPA)
- Enclosure : Watertight NEMA 3, 4, 4X, 13 and IP66 (N4)
- Output : SPDT Relay 10A, 250 Vac 10A, 30 Vdc (D)
- Power Requirement: 110 Vac, 50/60Hz. (L)
- Pressure Port : 1 ⁄8 NPT Male (S01)
- Pressure Connection : 1⁄4 NPT Male (02)
- N-Series Options : External setpoint adjustment Consult factory for other options (XEA)
- Nominal Range Performance Table (psi) : (30 PSI)
