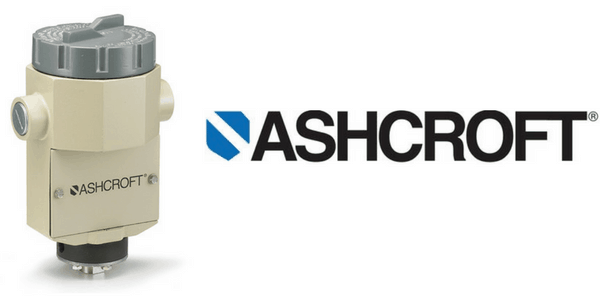

Ashcroft PP-Series NEMA 7 Pressure Switch
Ashcroft PP-Series NEMA 7 pressure switches are designed for pressure control in harsh applications where uncompromising protection is required.
The Ashcroft PP-Series NEMA 7 pressure switch has proven technology providing a stable, long-lasting product; ideal for satisfying pressure control, shutdown or alarm operations.
Ashcroft PP-Series NEMA 7 Pressure Switch – Applications
- Refineries
- Chemical and Petrochemical plants
- Water and Sewage Treatment Facilities
- Steel Mills
- Pumps, Compressors and Turbines
- Boilers and Burners
- Reverse Osmosis Systems
Ashcroft PP-Series NEMA 7 Pressure Switch – Features
- Explosion Proof Enclosure
- Dual chamber design allows for field calibration to be performed safely, even with power connected
- Wide selection of switch elements and wetted materials
- Process connection options available
Ashcroft PP-Series NEMA 7 Pressure Switch – Product Specifications
| Ashcroft Model Number | Ashcroft PP-Series NEMA 7 |
| Setpoint | Single or Dual |
| Accuracy | ±0.50% full scale |
| Enclosure | Watertight epoxy coated aluminum explosion proof NEMA 7/9, IP66 |
| Pressure Ranges | vacuum to 3,000 psi |
| Approvals | UL, CSA, CE |
ASHCROFT PP-SERIES NEMA 7 – How To Order
Here is a typical ordering example for an Ashcroft PP-Series NEMA 7 pressure switch – for technical support, specification and sales contact T&D.
Ashcroft Switch P P D N 7 G G B 2 5 X K 3 30 PSI
- Function : Pressure control, two independently adjustable setpoints, fixed deadband (PPD)
- Enclosure : N7-NEMA 7&9, IP66 (explosion proof Div. 1 & 2) (N7)
- Switch Elements for PPA & PDA Controls : General Purpose 15A, 125/250/480 Vac, 1/2A, 125 Vdc 1/4A, 250 Vdc (G)
- Actuator: B – Buna-N . (B)
- Pressure Port : ⁄4˝ NPT Female (Std. up to 1000#) (25)
- P-series options : Terminal Blocks (XK3)
- Nominal Range Performance Table (psi) : (30 PSI)
