Raytec FL48R | Floodlight Zone 1 & Zone 21 620nm 10,000 Lumens

Zone 1 Floodlights ATEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres

Hazardous Area Rating: Zone 1 – Gas & Dust

Zone 1 Gas

  • II 2 G D
  • Ex e mb op is IIC T4 Gb
  • Ta= Up to -52°C to +55°C (all emergency variants have a lower ambient of -20°C only)

Hazardous Area T Rating – T4, T5, T6

Zone 21 Dust

  • Ex tb op is IIIC T82°C Db
  • Ta= Up to -52°C to +55°C –
  • IP66 & IP67

North American Hazardous Area Certification

  • Class I, Division 2 Groups A, B, C, D, T5
  • Class II, Division 1 & 2 Groups E, F, G
  • Class III, Division 1 & 2
  • NEMA 4x, IP66/IP67
  • UL50E, UL8750, UL 1203
  • C22.2 No
  • Emergency Variants – Certification Pending

SPARTAN Flood range of Zone 1 floodlights form part of the ATEX Lighting range manufactured by Raytec and are designed to provide lighting to very large and open hazardous areas which require high performance, high reliability and white-light illumination in potentially explosive atmospheres.

The FL48R floodlights are globally certified to Zone 1 offering long-life red LED technology and specifically designed for use hazardous area environments which require low light/ low wavelength illumination. The Zone 1 floodlights use a warmer wavelength of LED, avoiding the dangers associated with wildlife wandering towards blue-white light.

Typical applications include military use, warning and status indication lighting.

The modular design of the hazardous area lighting with PSU chassis also allows for the most flexible installation, easiest access and servicing of the floodlight when conducting routine maintenance and repair in Zone 1 areas.

CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 10,000 delivered lumens. All SPARTAN lighting comes with an industry leading 5 year warranty as standard.

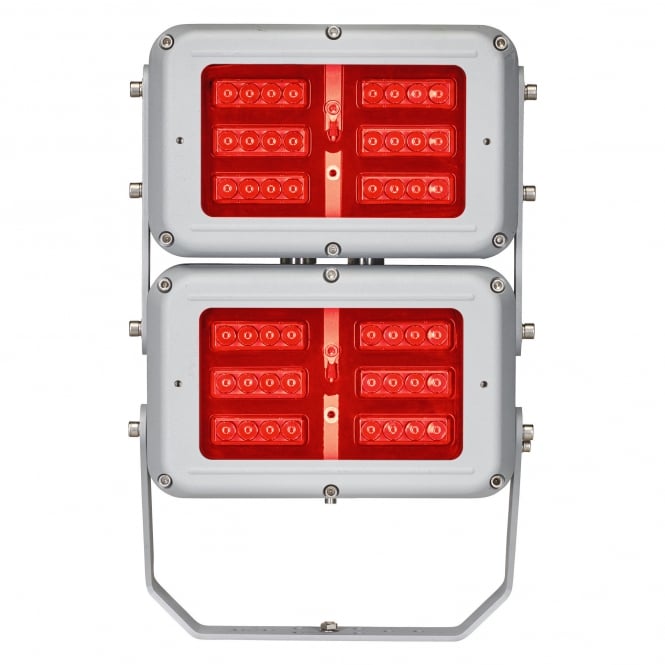

Raytec Spartan SPX-FL48R ATEX Floodlight

Raytec Spartan SPX-FL48R ATEX Floodlight

Zone 1 Floodlights

Features & Benefits

ATEX Floodlights

ATEX Floodlights

  • Raytec Part Number – SPX-FL24R-W
  • ATEX & IEC Ex approved – Zone 1
  • UL/CSA approved including C1D2 and ABS
  • Ultra Long Life LED Lighting
  • High Lumen Output LED Lighting
  • Emergency Variants
  • Wavelength – 620nm
  • Wide Operating Temp -50° to +55°
  • VARIO Lens Technology – easy modification of beam patterns
  • Zone 2 Floodlights Available
  • 5 Year Warranty
  • UK Designed and Manufactured
  • Now ‘op is’ approved (EN60079-28)
  • Integral photocell (optional)
Zone 1 Floodlights - Product Dimensions

Zone 1 Floodlights – Product Dimensions

Raytec SPARTAN FloodLight

Technical Specification

Certification: ATEX and IEC Ex rated for Zone 1 and 2 Gas and Dust, and UL/CSA inc. C1D2
Angles: 10×10°/ 35×10°/ 60×25°/ 80×30°/ 120×50° elliptical and 30°, 50° and 120° circular options
Input: Mains Voltage 110-254V 50/60 Hz AC only
Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC
Beam Shape: Elliptical or Circular
Beam Angle System: VARIO interchangeable lens system (elliptical) / Fixed (circular)
Consumption: 136W
LED Type: Platinum Elite SMT LEDs
Number of LEDs: 48
Power Output: Up to 10,000lm
Wavelength: 600nm
IP Rating: IP66 and IP67
Temperature Range: -50°C to +55°C



Floodlight Dimensions

Standard:

Metric – 291 x 502 x 158mm
Imperial – 11.5 x 19.8 x 6.2”

Emergency:

Metric – 291 x 502 x 219mm
Imperial – 11.5 x 19.8 x 8.6”

Zone 1 Floodlight Product Codes

Circular Beam Pattern

T4 variants as standard

SPX-FL48R-W-1010 SPARTAN Zone 1 Floodlight, 48 LED, Red Light, 10°x 10° beam
SPX-FL48R-W-3030 SPARTAN Zone 1 Floodlight, 48 LED, Red Light, 30°x 30° beam
SPX-FL48R-W-5050 SPARTAN Zone 1 Floodlight, 48 LED, Red Light, 50°x 50° beam
SPX-FL48R-W-120120 SPARTAN Zone 1 Floodlight, 48 LED, Red Light, 120°x 120° beam
  1. For emergency versions – add ‘-EM50’ to the above codes
  2. 18-69V variants available, add -LV to the above codes
  3. 12V variants available, add -ELV to the above codes
  4. Please contact T&D for T5 and T6 variants

Elliptical Beam Pattern

T4 variants as standard

SPX-FL48-4K-A-3510 SPARTAN Zone 1 Floodlight, 48 LED, Red Light, 35°x 10° beam
SPX-FL48-4K-A-6025 SPARTAN Zone 1 Floodlight, 48 LED, Red Light, 60°x 25° beam
SPX-FL48-4K-A-8030 SPARTAN Zone 1 Floodlight, 48 LED, Red Light, 80°x 30° beam
SPX-FL48-4K-A-12050 SPARTAN Zone 1 Floodlight, 48 LED, Red Light, 120°x 50° beam
  1. For emergency versions – add ‘-EM50’ to the above codes
  2. 18-69V variants available, add -LV to the above codes
  3. 12V variants available, add -ELV to the above codes
  4. Please contact T&D for T5 and T6 variants
