Zone 1 Floodlights for Hazardous Area Lighting

Floodlights | Zone 1 | ATEX Certified | Hazardous Area Lighting

Zone 1 Hazardous Area

LED High Power Floodlight

➡ View our complete range of Zone 1 Floodlights manufactured by Raytec and certified according to the ATEX Directive to provide safe and reliable hazardous area lighting in potentially explosive atmospheres in both onshore and offshore locations.

➡ See also Zone 2 Floodlights.

FloodlightsZone 1 Floodlights ATEX

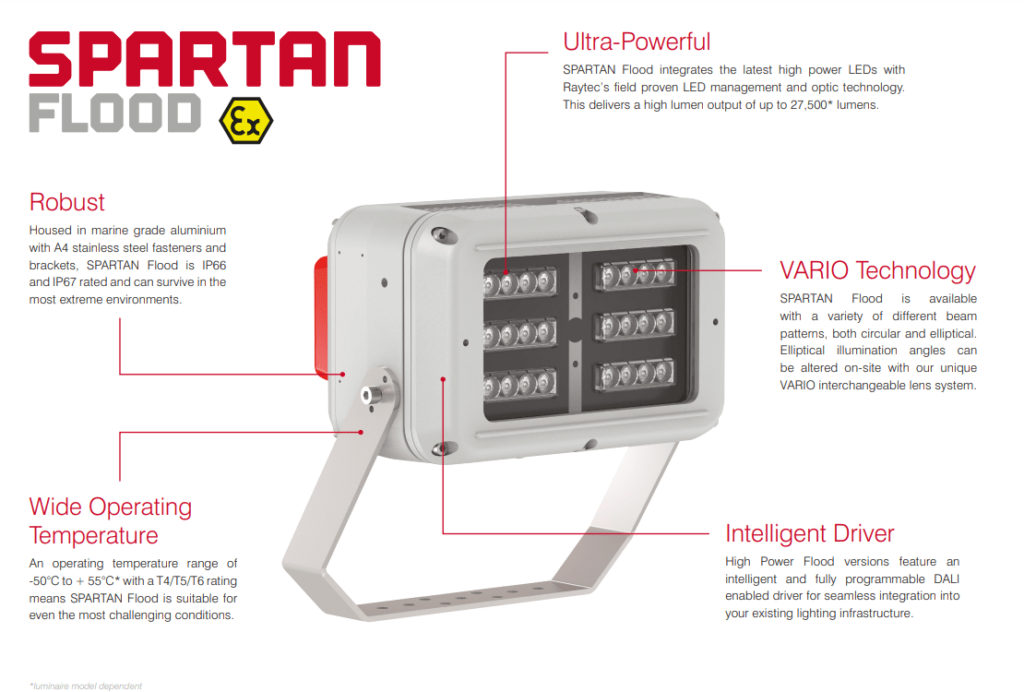

Raytec SPARTAN Flood is a globally certified (ATEX, IEC Ex & EAC) range of LED floodlights designed for all Zone 1 and Zone 2 hazardous area lighting environments.

  • Ultra Long Life LED Floodlight
  • High Lumen Light Output LED
  • Certification: ATEX and IEC Ex rated for Zone 1 and 2 Gas and Dust, and UL/CSA inc. C1D2

ATEX

ATEX Floodlights

ATEX Floodlights

Zone 1 Floodlights ATEX Rating: ATEX and IEC Ex rated for Gas & Dust Explosive Atmospheres

Hazardous Area Rating: Zone 1 – Gas & Dust

Zone 1 Gas

  • II 2 G D
  • Ex db eb mb op is IIB T4 Gb

T4 T5 T6 Temperature Ratings are available.

Zone 21 Dust

  • Ex tb op is IIIC T104°C Db
  • Ta=-50°C to +50°C



Specification

ATEX Zone 1IEX EX LightEAC Light

  • Certification: ATEX and IEC Ex rated for Zone 1 and 2 Gas and Dust, and UL/CSA inc. C1D2
  • Floodlight Angles: 30°, 60° and 90° circular
  • Input: Mains Voltage 150-264V 50/60 Hz AC/DC
  • Beam Shape: Circular
  • Beam Angle System: Fixed
  • Floodlight Consumption: 300W
  • LED Type: PLATINUM Elite SMT LEDs
  • Number of LEDs: 24 Per Floodlight Unit
  • Power Output: Up to 25,000lm
  • Wavelength: White-Light (5,700K+)
  • IP Rating: IP66 and IP67
  • Temperature Range: -50° to +50°
Zone 1 Floodlight

SPARTAN Flood by Raytec | High Power Floodlight Zone 1 – standard or emergency variant lights with high lumen output of up to 25,000 delivered lumens. SPARTAN floodlights are globally certified for all Zone 1, Zone 2 and Industrial lighting applications.

LED Floodlights Zone 1

Hazardous Area LED Lighting

Zone 1 hazardous area lighting products are manufactured in the UK by Raytec and are ATEX and IEC Ex approved and supplied with a 5 year warranty – a full family of ATEX lighting products includes SPARTAN Flood, Linear, Bulkhead, High Bay and Crane Floodlights for Zone 1.

ATEX Lighting

LED floodlights provide high performance, high specification, hazardous area lighting delivering world class leading performance and reliability and compliance with international classifications including ATEX and IEC Ex.

Zone 1/21 ATEX and IEC Ex LED Floodlights

Raytec SPARTAN Zone 1/21 Floodlight FL12 (Small)
Circular Beam Pattern – SPX-FL12
SPX-FL12-W-1010SPARTAN Flood 12 LED, Zone 1/21, White-Light 10°x10° beam
SPX-FL12-W-3030SPARTAN Flood 12 LED, Zone 1/21, White-Light 30°x30° beam
SPX-FL12-W-5050SPARTAN Flood 12 LED, Zone 1/21, White-Light 50°x50° beam
SPX-FL12-W-120120SPARTAN Flood 12 LED, Zone 1/21, White-Light 120°x120° beam
Elliptical Beam Pattern – SPX- FL12
SPX-FL12-W-3510SPARTAN Flood 12 LED, Zone 1/21, White-Light 35°x10° beam
SPX-FL12-W-6025SPARTAN Flood 12 LED, Zone 1/21, White-Light 60°x25° beam
SPX-FL12-W-8030SPARTAN Flood 12 LED, Zone 1/21, White-Light 80°x30° beam
SPX-FL12-W-12050SPARTAN Flood 12 LED, Zone 1/21, White-Light 120°x50° beam
Raytec SPARTAN Zone 1/21 Floodlight FL24 (Medium)
Circular Beam Pattern – SPX-FL24 | Elliptical Beam Pattern  – Emergency SPX-FL24
SPX-FL24-W-1010SPARTAN Flood 24 LED, Zone 1/21, White-Light 10°x10° beam
SPX-FL24-W-1010-EM50SPARTAN Flood 24 LED, Zone 1/21, White-Light 10°x10° beam – Emergency Variant
SPX-FL24-W-3030SPARTAN Flood 24 LED, Zone 1/21, White-Light 30°x30° beam
SPX-FL24-W-3030-EM50SPARTAN Flood 24 LED, Zone 1/21, White-Light 30°x30° beam – Emergency Variant
SPX-FL24-W-5050SPARTAN Flood 24 LED, Zone 1/21, White-Light 50°x50° beam
SPX-FL24-W-5050-EM50SPARTAN Flood 24 LED, Zone 1/21, White-Light 50°x50° beam – Emergency Variant
SPX-FL24-W-120120SPARTAN Flood 24 LED, Zone 1/21, White-Light 120°x120° beam
SPX-FL24-W-120120-EM50SPARTAN Flood 24 LED, Zone 1/21, White-Light 120°x120° beam – Emergency Variant
Elliptical Beam Pattern  – Standard SPX-FL24 | Elliptical Beam Pattern  – Emergency SPX-FL24
SPX-FL24-W-3510SPARTAN Flood 24 LED, Zone 1/21, White-Light 35°x10° beam
SPX-FL24-W-3510-EM50SPARTAN Flood 24 LED, Zone 1/21, White-Light 35°x10° beam – Emergency Variant
SPX-FL24-W-6025SPARTAN Flood 24 LED, Zone 1/21, White-Light 60°x25° beam
SPX-FL24-W-6025-EM50SPARTAN Flood 24 LED, Zone 1/21, White-Light 60°x25° beam – Emergency Variant
SPX-FL24-W-8030SPARTAN Flood 24 LED, Zone 1/21, White-Light 80°x30° beam
SPX-FL24-W-8030-EM50SPARTAN Flood 24 LED, Zone 1/21, White-Light 80°x30° beam – Emergency Variant
SPX-FL24-W-12050SPARTAN Flood 24 LED, Zone 1/21, White-Light 120°x50° beam
SPX-FL24-W-12050-EM50SPARTAN Flood 24 LED, Zone 1/21, White-Light 120°x50° beam – Emergency Variant
Raytec SPARTAN Zone 1/21 Floodlight FL48 (Large)
Circular Beam Pattern  – Standard SPX-FL48 | Circular Beam Pattern  – Emergency SPX-FL48
SPX-FL48-W-1010SPARTAN Flood 48 LED, Zone 1/21, White-Light 10°x10° beam
SPX-FL48-W-1010-EM25SPARTAN Flood 48 LED, Zone 1/21, White-Light 10°x10° beam – Emergency Variant
SPX-FL48-W-3030SPARTAN Flood 48 LED, Zone 1/21, White-Light 30°x30° beam
SPX-FL48-W-3030-EM25SPARTAN Flood 48 LED, Zone 1/21, White-Light 30°x30° beam – Emergency Variant
SPX-FL48-W-5050SPARTAN Flood 48 LED, Zone 1/21, White-Light 50°x50° beam
SPX-FL48-W-5050-EM25SPARTAN Flood 48 LED, Zone 1/21, White-Light 50°x50° beam – Emergency Variant
SPX-FL48-W-120120SPARTAN Flood 48 LED, Zone 1/21, White-Light 120°x120° beam
SPX-FL48-W-120120-EM25SPARTAN Flood 48 LED, Zone 1/21, White-Light 120°x120° beam – Emergency Variant
Elipitcal Beam Pattern  – Standard SPX-FL48 | Eliptical Beam Pattern  – Emergency SPX-FL48
SPX-FL48-W-3510SPARTAN Flood 48 LED, Zone 1/21, White-Light 35°x10° beam
SPX-FL48-W-3510-EM25SPARTAN Flood 48 LED, Zone 1/21, White-Light 35°x10° beam – Emergency Variant
SPX-FL48-W-6025SPARTAN Flood 48 LED, Zone 1/21, White-Light 60°x25° beam
SPX-FL48-W-6025-EM25SPARTAN Flood 48 LED, Zone 1/21, White-Light 60°x25° beam – Emergency Variant
SPX-FL48-W-8030SPARTAN Flood 48 LED, Zone 1/21, White-Light 80°x30° beam
SPX-FL48-W-8030-EM25SPARTAN Flood 48 LED, Zone 1/21, White-Light 80°x30° beam – Emergency Variant
SPX-FL48-W-12050SPARTAN Flood 48 LED, Zone 1/21, White-Light 120°x50° beam
SPX-FL48-W-12050-EM25SPARTAN Flood 48 LED, Zone 1/21, White-Light 120°x50° beam – Emergency Variant



ATEX Lighting Floodlights Zone 1 Zone 2 Hazardous Area

Lighting Design Service for Hazardous Areas

Spartan Flood, The LED Zone 1 Floodlight

Design

Thorne & Derrick, the hazardous area lighting specialists, can provide a Zone 1 lighting scheme utilising LED floodlights tailored to specific application requirements – 2D or 3D lighting designs provide visual representation of the site. The lighting design service will provide recommendations on the product type and number of lights required including the average, maximum and minimum light levels that can be achieved in accordance with ATEX and IEC Ex compliance.

Zone 1 Floodlights ATEX

Additional Features

LED Lighting – Zone 1 SPARTAN Floodlights use CoolExtrude thermal management technology, ensuring a much cooler LED operating temperature. This provides up to 60% better heat dissipation compared to traditional lighting solutions and allows the floodlight product to operate for 10+ years in the most challenging environments.

Emergency Back-Up Lighting – SPARTAN Floodlights for Zone 1 hazardous area are available as a high performance emergency variant, using an additional battery back-up module which can deliver up to 100% light output under emergency conditions. All SPARTAN Flood emergency units come with intelligent battery management to proactively monitor and maintain the overall health of the floodlight.

Flexible Installation & Easy Maintenance – the modular design allows great flexibility: the entire PSU chassis can be removed and located remotely at ground level for areas with difficult access. Additionally the individual PSU modules can be easily accessed and replaced making servicing and inspection of all key components within the Zone 1 floodlight quicker and easier.

Zone 1 Floodlights

Zone 1 Floodlights | Emergency Back-up | Easy To Install & Maintain

SPARTAN High Power Floodlights are designed for Zone 1 hazardous area environments which require high performance, high reliability and brilliant White-Light illumination.

The High Power Floodlight has been designed by Raytec to light up large and open areas and is supplied with an integral dedicated bracket allowing the beam angle of light to be tilted and easily targeted into the required space.

Raytec’s field-proven, long-life LED technology SPARTAN floodlights are ATEX and IEC Ex approved for all Zone 1 hazardous area lighting applications – watch the video to learn how high lumen output is provided by the latest high performance LED technology delivering low running costsand low energy consumption.
